Operating Instructions

Power Up and Boot Sequence

1)
Ensure that good batteries are installed in the unit.
2)
Simultaneously press and hold the AUDIO and FREQ buttons until the power
on boot sequence is initiated.
to normal operation. If the buttons are released before the count is com‑
plete, the unit will boot up into the standby mode (see below).

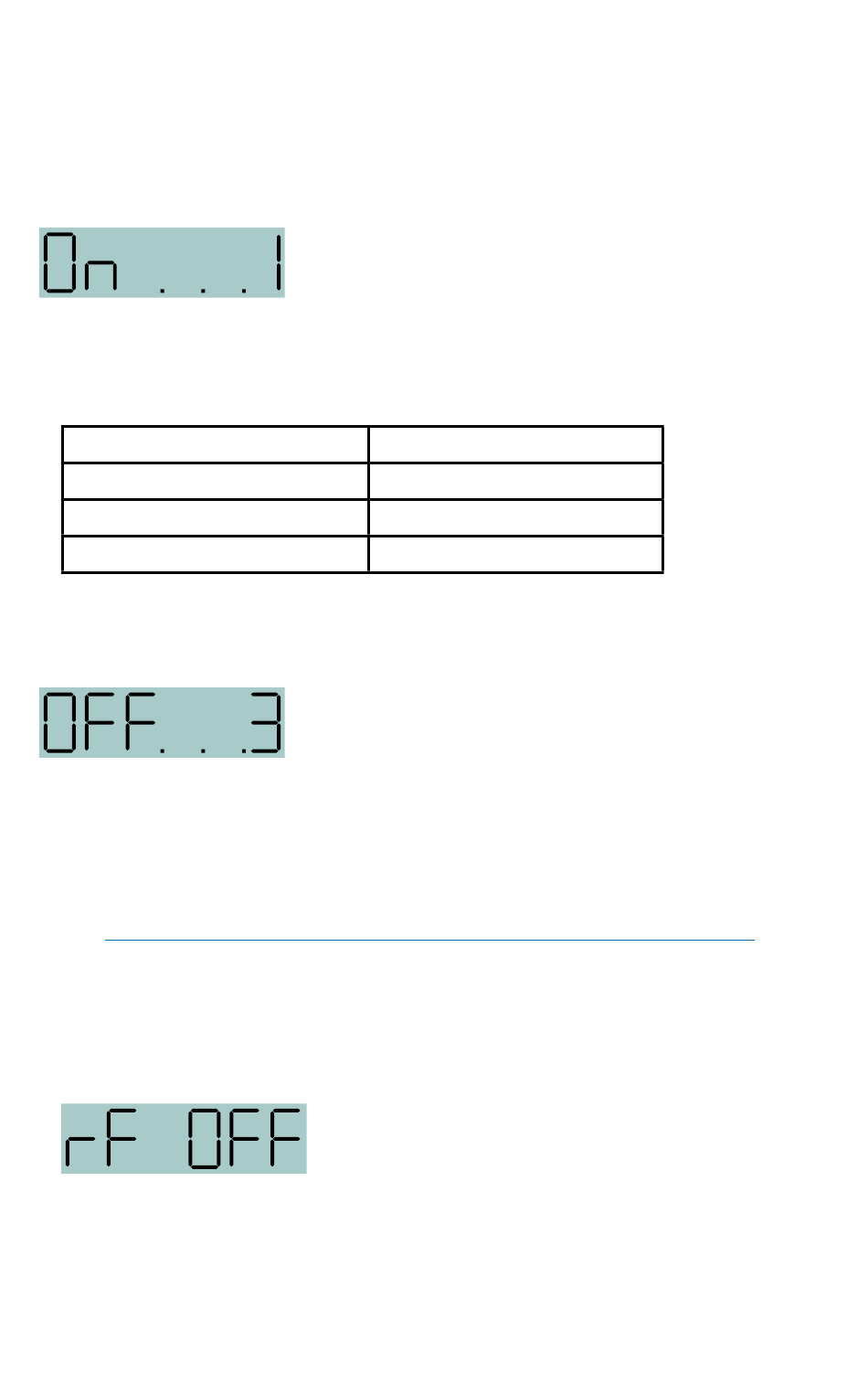

The LCD displays the following information during the boot sequence:
Company Name:
Frequency Block:
Firmware Version (rX.X):
Compatibility Mode:
When the boot sequence is complete, the display will switch to the frequency
currently set.

Power Down

Initial Power Off
Timer Screen
1)
Simultaneously press and hold the AUDIO and FREQ buttons while observ‑
ing that the word "Off" appears in the LCD along with a counter.
2)
When the counter reaches "0", the unit turns off.
Note: If the AUDIO and FREQ buttons are released before the LCD
goes blank at the end of the countdown, the unit will not turn off.
Instead, it will stay energized and the display will return to the previous
screen.

Standby Mode

Standby Screen
setup adjustments can be made without interfering with other systems operat‑
ing in the same location. The screen displays "rf OFF" to remind the user that
the unit is not transmitting.
While the unit is in the standby mode, access the setup screens using the
AUDIO and FREQ buttons and make adjustments using the UP and DOWN
arrows.
4
The count will progress from 1 through 3 and the unit
will then power up with the RF output turned on.
During this turn on sequence, the modulation and
power LEDs all glow red, then green, and then revert
LECtro
b 941
r1.01 (typical)
CP Hbr (typical)
With the power turned off, pressing the AUDIO
and FREQ buttons briefly places the unit in
Standby Mode.
In this mode the RF output is turned off so all
LECTROSONICS, INC.
