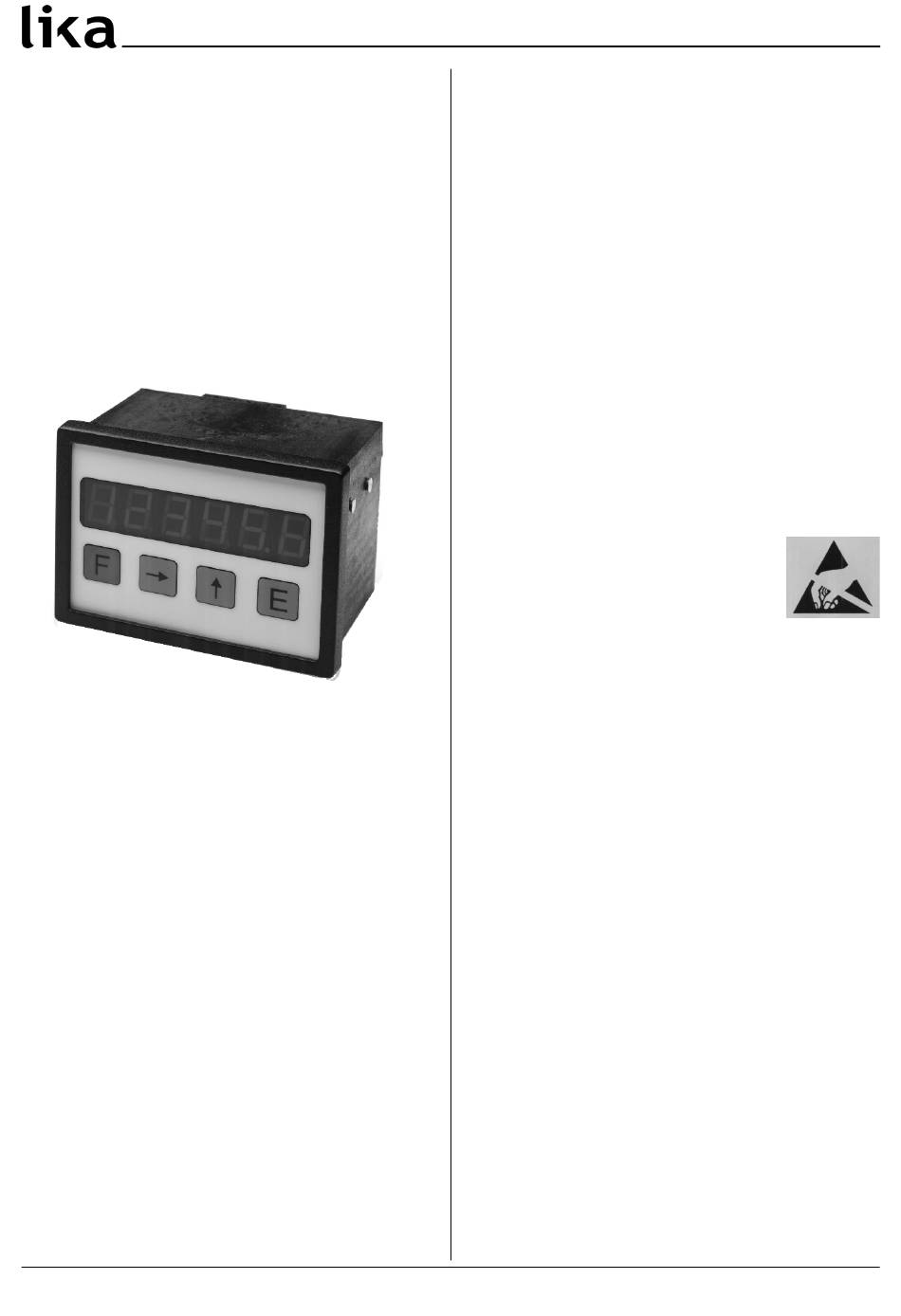

User manual
MC150
Description
This manual describes the MC150 display series. The
purpose of this device is to
angular displacements on industrial machines and
automation systems. The device can be connected
to standard Push-Pull or Line Driver incremental
encoders or magnetic sensors.
Chapters
1

Safety summary

2

Identification

3

Installation

4

Mounting recommendations

5
6
7
8
9
MAN MC150 I_E 1.7
MC150
display linear or
9
1 - Safety summary
For the electrical connections, we recommend to
closely follow these electrical instructions. In
particular, according to the 89/336/EEC norm on
electromagnetic
precautions must be taken:
• Measurement system (sensor) should be
installed as close as possible to the display.
• Always use shielded and twisted cables if
possible.
• Avoid running the sensor cable near high
voltage power cables (e.g. drive cables).
• Install EMC filters on sensor power supply if
needed.
• Avoid mounting sensor near capacitive or
inductive noise sources such as relays, motors,
and switching power supplies.
• Static discharge can damage internal sensitive
electronic components. Before handling and
installing,
discharge
charge from your body and tools
which may come in touch with
the device.
Connect according to the chapter 5: "Electrical
connections".
2 - Identification
The device can be identified by the label's data
(ordering code, serial number). This information is
listed in the delivery document. For technical
features of the product to make reference at the
technical catalogue.
3 - Installation
Install the device according to the protection level
provided. Protect the system against knocks,
friction, solvents and respect the environmental
characteristics of the product.
4 - Mounting recommendations
Push the display into the cut-out (approx. 90 x 66
mm
2
) without panel clips.
Install panel clips on the display's housing and
screw until fixed.
compatibility,
following
electrical
www.lika.it
www.lika.biz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC150 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lika MC150 series

Summary of Contents for Lika MC150 series

  • Page 1 4 - Mounting recommendations Push the display into the cut-out (approx. 90 x 66 ) without panel clips. Install panel clips on the display's housing and screw until fixed. MAN MC150 I_E 1.7 www.lika.it www.lika.biz...

  • Page 2: Electrical Connections

    Power supply 230Vac 0V GND 5.4 CON4 connections (RS232) Pin 1 L Function Pin 2 Connect to pin 3 Pin 3 Connect to pin 2 Pin 4 N, max. 100 mA Pin 5 P.E. MAN MC150 I_E 1.7 www.lika.it www.lika.biz...
  • Page 3 F,  and E key while switching on. P01 is 200 6.2.2 Direct functions To set direct functions, such as reset, reset with datum value, tool correction (offset value), absolute/relative display mode and mm/Inch display mode, program P07 parameter. MAN MC150 I_E 1.7 www.lika.it www.lika.biz...
  • Page 4 1 = stop encoder pulse counting. 2 = change absolute/incremental mode Attention: Datum value can be set only after digiting the correct password. To cancel password and restore default value see chapter “Default parameter” (6.2.1). MAN MC150 I_E 1.7 www.lika.it www.lika.biz...
  • Page 5 Output 2 will be activated when actual value is more (or less) than Output 1 value, see P21. Default value: 20.0 P16 Output configuration [0, 1] 0 = static output 1 = with output dwell time (see P17 and P18) MAN MC150 I_E 1.7 www.lika.it www.lika.biz...

  • Page 6: Rs232 Interface

    This parameter shows the actual value for serial There are 3 ways of communication: transmission via RS232 Interface if parameter • Send P62=0. • Receive • Broadcast NOTE: In order to activate modified parameters, switch off and on the device. MAN MC150 I_E 1.7 www.lika.it www.lika.biz...
  • Page 7 If actual value = 12 acknowledge message will be: "activate parameter" command (see chap. 8.3.4). MC150  PC STX C1 C2 C3 C4 DATA ETX BCC ascii Hex 02 32 31 39 39 31 MAN MC150 I_E 1.7 www.lika.it www.lika.biz...
  • Page 8 (w x h) cut-out. Lika Electronic Via S. Lorenzo, 25 - 36010 Carrè (VI) - Italy Tel. +39 0445 382814 Fax +39 0445 382797 Italy: eMail info@lika.it - www.lika.it World: eMail info@lika.biz - www.lika.biz MAN MC150 I_E 1.7 www.lika.it www.lika.biz...
