Product description

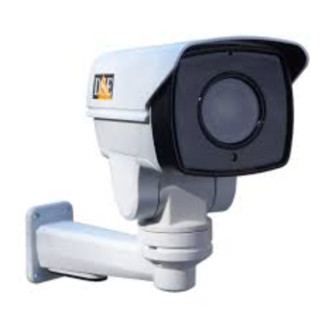

The camera you have purchased is a very innovative product. Yes
It is a camera
Similar in concept to a fixed camera, but capable of being panned in all directions and equipped
with zoom, also remotely controllable.

Connections and Mounting

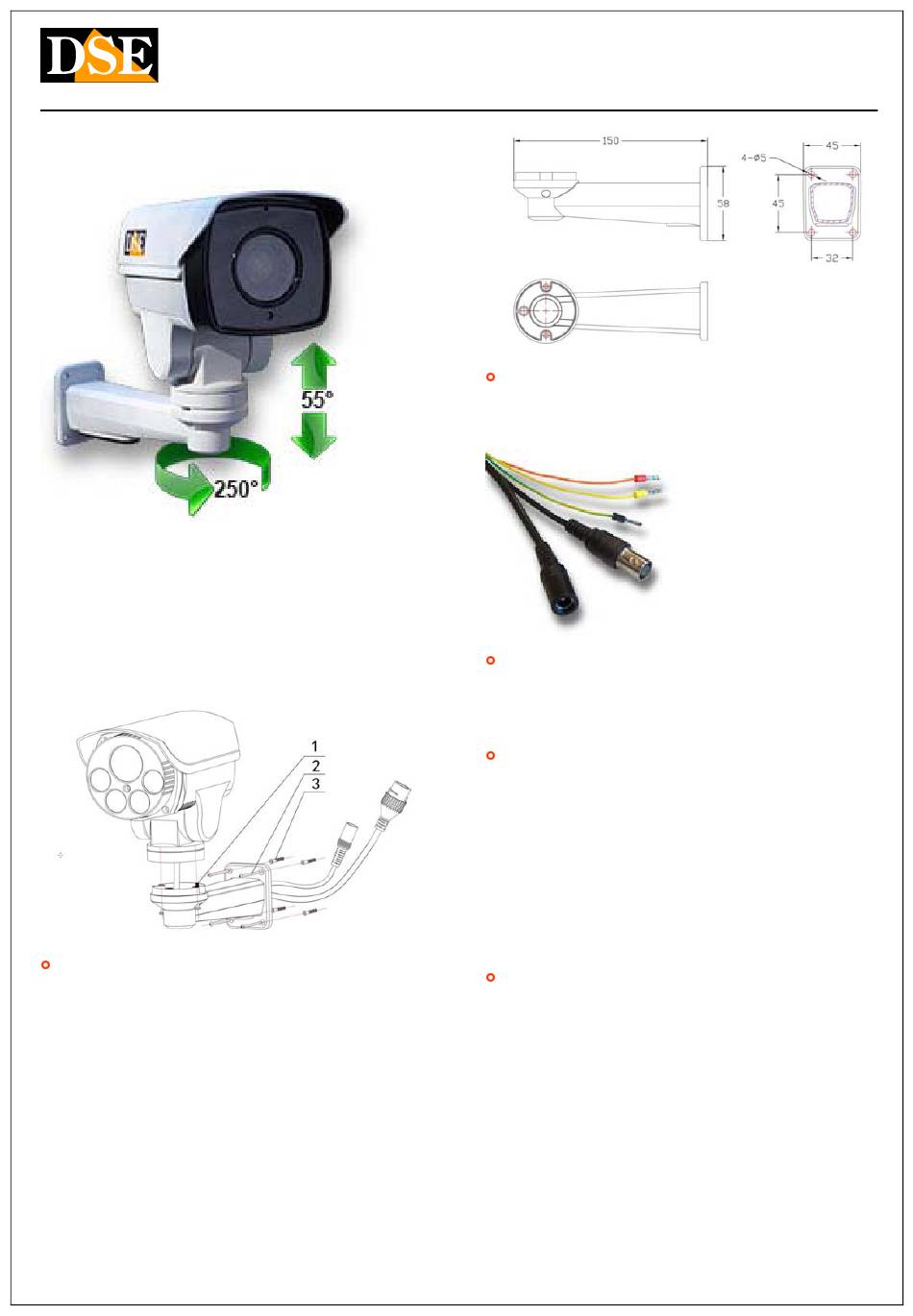

Bracket Mounting - The first thing to Bracket Mounting - The first thing to
fasten the bracket supplied separately to the camera body with the two screws provided (1). The
cables pass through the bracket and protruding rear.
It mounts generally in the output cables so as not to leave exposed wires.
In the lower part of the bracket is a slot with this seal to allow the cables if they do not originate
from walled tubes.
The cameras are to be fixed to the wall and are not suitable for ceiling mounting. Fix the wall
bracket with the bolts (3)
The camera
DSE srl - Digital Surveillance Equipment - WWW.DSE.EU
SD-E10FD / FD4 mini PTZ camera AHD
Connections
The camera is equipped with different connectors: a female BNC for the video, a DC power outlet
and two cables (ORANGE / YELLOW) for remote control (RS485).
BNC video output - At the BNC female bayonet connecting the video cable that then leads BNC video output - At the BNC female bayonet connecting the video cable that then leads
to the DVR typically through RG59 type coaxial cable and BNC connector. You can also use
twisted pair cables with balun converters.
Jack DC12V - At the power plug must connect a 12VDC power supply stabilized by at least Jack DC12V - At the power plug must connect a 12VDC power supply stabilized by at least
2,000 mA, such as RE-AL3C model (not included).
The requested plug is the standard 5.5 mm. Attention to use STABILIZED feeders that provide
12V in any load condition. The use of a different supply voltage from 12VDC can generate video
disorders and in the worst cases damage the camera. Beware extension power cables are too
long or
small section,
excessive fall
IR illuminator ignition.
Telemetry. It is of the serial connection that leads the movement commands to the camera. Telemetry. It is of the serial connection that leads the movement commands to the camera.
The SD series cameras use an RS485 serial line (RS485 BUS) which is formed with a pair of
twisted wires.
ORANGE: RS485 A ORANGE: RS485 A
YELLOW: RS485B YELLOW: RS485B
E 'essential that the two cables are wound between them and non-parallel. In principle the RS485
serial line can extend up to 1200 meters in length and along it are connected in cascade devices.
The section of the cables closely depends on the length of the connection: for medium distances
is sufficient a section of 0.5 mm, while if it is necessary to reach considerable distances (max.
1200 m.) Should be used upper sections of 1 mm or even 2.5 mm.
In carrying out the wiring
recommended, but not required to use cable
Document: SD-1A6 E10FD Document: SD-1A6 E10FD Document: SD-1A6 E10FD
Page: 1 Page: 1
that could to introduce
species voltage at the time
