INSTALLATION MANUAL
IP CAMERAS SPEED DOME SERIES RL
Page: 1
Page: 1

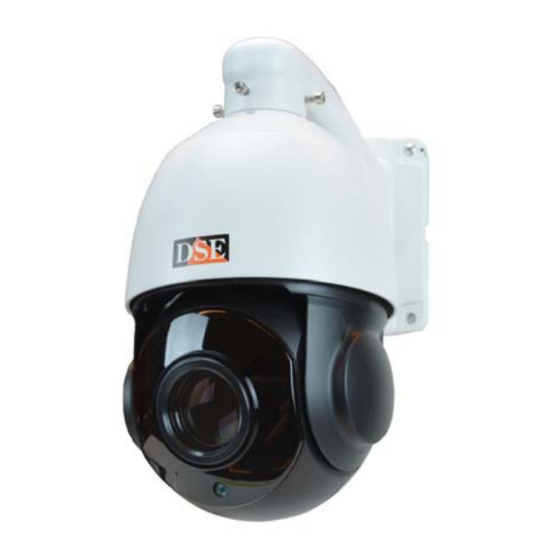

RL Series IP Cameras
PTZ Speed ​ ​ D ome of ONVIF IP network
Installation and Configuration
How to connect the camera How to make the
connection in the network How to configure the camera
connection in the network How to configure the camera
DSE SRL - ITALY - WWW.DSE.EU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAKED RL Series and is the answer not in the manual?

Questions and answers

Related Manuals for DSE NAKED RL Series

Summary of Contents for DSE NAKED RL Series

  • Page 1 PTZ Speed ​ ​ D ome of ONVIF IP network Installation and Configuration How to connect the camera How to make the connection in the network How to configure the camera connection in the network How to configure the camera DSE SRL - ITALY - WWW.DSE.EU...

  • Page 2: Contents Of This Handbook

    Contents of this handbook The range of cameras NAKED RL series is a range of IP cameras for network connection developed for use with NVRs. This manual explains how to connect the camera, how to make the basic adjustments and how to configure the parameters for the network connection.
  • Page 3 POE power to the local power 12VDCe with 12VDC adapter (included). The RL Series cameras fully support the protocol International ONVIF and are compatible with any IP recording software or network video recorder (NVR) can handle this standard. DSE SRL - ITALY - WWW.DSE.EU...

  • Page 4: Technical Data

    INSTALLATION MANUAL IP CAMERAS SPEED DOME SERIES RL Page: 4 Page: 4 Technical data   See updated at tables: https://www.dseitalia.it/ P rod_telecamere_motorizzate_brandeggiabili_IP_POE_per_estern https://www.dseitalia.it/ P rod_telecamere_motorizzate_brandeggiabili_IP_POE_per_estern https://www.dseitalia.it/ P rod_telecamere_motorizzate_brandeggiabili_IP_POE_per_estern o.htm   DSE SRL - ITALY - WWW.DSE.EU...

  • Page 5: Installation

    AUDIO - Some models have a female RCA connector to connect an external microphone for audio • VERIFICATION OF CONNECTIONS After the camera connected to verify that it performs an automatic rotational movement which certifies the proper nutrition. If the camera does not perform DSE SRL - ITALY - WWW.DSE.EU...
  • Page 6 The camera housing is watertight and can be exposed to rain. The connections must be protected from the weather. The cable entry may be provided at the center of the bracket if the cable passage is walled. Alternatively, a lateral conduit entrance is provided in the base of the bracket. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 7 INSTALLATION MANUAL IP CAMERAS SPEED DOME SERIES RL Page: 7 Page: 7 DSE SRL - ITALY - WWW.DSE.EU...

  • Page 8: Network Configuration

    On a network PC, open a DOS window available between the Windows accessory programs. Type IPCONFIG at the command prompt and press ENTER. They will see the TCP / IP parameters. The second line is the IP address assigned to your computer. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 9 PING from the same DOS window by typing PING followed by a space and by the IP you wish to assign to the camera. If there is no device responds to that address, you will receive 4 REQUEST TIME OUT as in the following example: DSE SRL - ITALY - WWW.DSE.EU...
  • Page 10 2. Click on the SEARCH button. The program will start to search for the IP camera series RL 2. Click on the SEARCH button. The program will start to search for the IP camera series RL DSE SRL - ITALY - WWW.DSE.EU...
  • Page 11 Awards MODIFY NETWORK for transferring the pattern into the camera. Wait for the camera to accept the new settings. Check, by pressing the SEARCH button, the camera after a short wait to be detected with the new address. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 12 7. At the first start the program asks you to create an administrator account program. The factory password is EMPTY. You can specify a user name and password at will that will be remembered and select SAVE PASSWORD. Or simply enters beating ENTER DSE SRL - ITALY - WWW.DSE.EU...
  • Page 13 10. The program allows you to split the cameras to operate in different areas. Awards of ADD AREA and enter any name for the area where you will find the camera that you want to add DSE SRL - ITALY - WWW.DSE.EU...
  • Page 14 INSTALLATION MANUAL IP CAMERAS SPEED DOME SERIES RL Page: 14 Page: 14 DSE SRL - ITALY - WWW.DSE.EU...
  • Page 15 11. Select the area you just created and click on the ADD DEVICE button 12. This will open the following window that allows you to manage devices 12. This will open the following window that allows you to manage devices DSE SRL - ITALY - WWW.DSE.EU...
  • Page 16 14. This will open a window containing all of the camera's network settings that we 14. This will open a window containing all of the camera's network settings that we change at our pleasure. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 17 15. You will be brought back to the previous screen. Press again on the button SEARCH 15. You will be brought back to the previous screen. Press again on the button SEARCH ADDRESS to display the camera with the new address. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 18 1. You can now view the camera's live video that you just added to ensure it is It was added correctly. To do so, expand the IP address of your camera to display the type of device on the top left of the page DSE SRL - ITALY - WWW.DSE.EU...
  • Page 19 PCs on the network for direct visualization and control of the camera without going NVR. It also lets you save videos in the coming local PC acting as a backup recording in addition NVR. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 20 In the folder PROTECTION choose the area of ​ ​ i nterest (Internet or local network) and click CUSTOM LEVEL. Enable all items for the download and execution of ActiveX especially those NOT marked as safe. E 'can set the items either ENABLE or ASK FOR CONFIRMATION. Finally, save and restart the browser. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 21 If the connection to the camera has successfully presents the log window to enter the access data The data of the RL Series cameras factory passwords are: USERNAME: admin PASSWORD: leave blank (or admin) DSE SRL - ITALY - WWW.DSE.EU...

  • Page 22: Installing Activex

    In order to make sure that the RL series IP cameras are displayed on the browser you must install the ActiveX components. On first access you make, the system will detect the absence of these components in your computer and will display the following window. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 23 E 'can both run the program directly by choosing RUN to save the file on your local PC and then install it manually. We must close the browser to install the plugin. Once the program is installed need to restart your browser and re-connect to the camera. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 24 INSTALLATION MANUAL IP CAMERAS SPEED DOME SERIES RL Page: 24 Page: 24 The options in the dialog are described in detail below.   DSE SRL - ITALY - WWW.DSE.EU...
  • Page 25 These cameras utilize the door factory 8999 to communicate with ONVIF devices. If your NVR does not support H265 video These cameras utilize the door factory 8999 to communicate with ONVIF devices. If your NVR does not support H265 video compression   DSE SRL - ITALY - WWW.DSE.EU...
  • Page 26 An installation of IP cameras is often placed inside a LAN connected to the Internet via a router as in the following scheme   An installation of IP cameras is often placed inside a LAN connected to the Internet via a router as in the following scheme     DSE SRL - ITALY - WWW.DSE.EU...
  • Page 27 IP address 212.12.34.201 port 81. VIDEO PORT: Default 90. E 'used by the camera for sending video VIDEO PORT: Default 90. E 'used by the camera for sending video • DSE SRL - ITALY - WWW.DSE.EU...
  • Page 28 Remember that web access to IP cameras in this range is much easier if done through the NVR, why the information provided in this chapter are present only for informative purposes for particular applications. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 29 STATUS is indicated as REGISTERED. If the connection to the server is not done checking the network settings of the NVR. When you start the app HISEE as you first create an account on the server. Once the account is created you can upload your camera by pressing the + button ADD DEVICE  DSE SRL - ITALY - WWW.DSE.EU...
  • Page 30 Once you connected with the camera you can view live images and control the camera movements including preset control. You can also view your recordings stored in the SD card, if the camera is equipped.  DSE SRL - ITALY - WWW.DSE.EU...
  • Page 31 INSTALLATION MANUAL IP CAMERAS SPEED DOME SERIES RL Page: 31 Page: 31           DSE SRL - ITALY - WWW.DSE.EU...

  • Page 32: Live Controls

    If you have not done before now access with the browser on your camera should resume the manual and follow the instructions above to connect successfully. This section of the manual start from the login window to enter user name and password for access, admin / factory or leave blank admin / admin DSE SRL - ITALY - WWW.DSE.EU...
  • Page 33 The Internet Explorer interface window is divided into two tabs that can be selected with tabs at the top. BROWSE - LIVE Vision and control of the camera movements SETTING - Camera Configuration BROWSE Choose to display the real-time camera. VIEW DSE SRL - ITALY - WWW.DSE.EU...
  • Page 34 COLOR MODE - Speaker lightly on the live video performance by balancing colors in shades FRESH (bright tones), and COLOR MODE - Speaker lightly on the live video performance by balancing colors in shades FRESH (bright tones), and STANDARD COLD (cold colors) DSE SRL - ITALY - WWW.DSE.EU...

  • Page 35: Ptz Control

    SPEED (firing rate) and ZOOM SPEED (zoom speed). In addition to this panel, you can also control the camera movements with the mouse directly on the live window. And 'possible to control the zoom quickly with the mouse wheel DSE SRL - ITALY - WWW.DSE.EU...

  • Page 36: Ptz Function

    Tour 3 between 33 and 48. Any preset in the tour not set are ignored. preset Tour 3 between 33 and 48. Any preset in the tour not set are ignored. PATTERN - Not available on these models PATTERN - Not available on these models • DSE SRL - ITALY - WWW.DSE.EU...
  • Page 37 The photos in JPG and AVI movie files are saved in the plugin installation folder for IE which by default is C: / IPC_PlayerAX. The destination can be changed in the configuration. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 38 INSTALLATION MANUAL IP CAMERAS SPEED DOME SERIES RL Page: 38 Page: 38 Configuration Using your Internet Explorer browser, you can configure the operation of the camera options. Click the SETTING tab to access the configuration. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 39 IP CAMERAS SPEED DOME SERIES RL Page: 39 Page: 39 SYSTEM The first page of the SYSTEM to the SYSTEM folder displays all the information on the camera status. This is an information page can not be modified DSE SRL - ITALY - WWW.DSE.EU...
  • Page 40 NTP / LOCAL PC - Here you can choose to synchronize the camera's time with the time on your PC or NTP server. NTP / LOCAL PC - Here you can choose to synchronize the camera's time with the time on your PC or NTP server. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 41 The SYSTEM / ADVANCED page includes some maintenance functions FIRMWARE UPGRADE - E 'can make the firmware update, only if requested by the technical DSE FIRMWARE UPGRADE - E 'can make the firmware update, only if requested by the technical DSE FACTORY RESET - Restores the camera's factory settings.
  • Page 42 IP / SUBNET MASK / DEFAULT GATEWAY: The classics are parameters that allow the device to communicate with your network. Normally these parameters are assigned during the installation with the IPWIZARD software as shown in the installation section. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 43 DDNS - If you need access to particular applications through the Internet directly to the camera (instead of NVR) is definitely advisable to have a fixed IP address so that you always know the exact address to connect. If you can not get from your provider, all cameras in the range support services DSE SRL - ITALY - WWW.DSE.EU...
  • Page 44 PROTOCOL - In this section you can enable / disable use of the ONVIF protocol and some private protocols from other manufacturers. PROTOCOL - In this section you can enable / disable use of the ONVIF protocol and some private protocols from other manufacturers. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 45 The CAMERA page, with its various tables includes configuration parameters of the module camera with the usual image adjustment items. You can immediately see the result in the preview of the changes you make. If you have not achieved the desired result, restores factory settings to reset page. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 46 25). Consider that 25 f / sec corresponds to the so-called real-time ie the television standard in which the human eye does not perceive the individual frames but a single uninterrupted sequence. Generally you can reduce this parameter up to 10/12 f / sec without perceiving large video fluidity differences and thus saving a lot of bandwidth. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 47 BITRATE - It represents the maximum bandwidth that the camera deal with its video streaming. As a rule should not exceed 4000-6000 Kbps The CHARACTER DISPLAY table allows to define the overlays in the image DSE SRL - ITALY - WWW.DSE.EU...
  • Page 48 ENABLE MOTION DETECTION, if you decide to keep them mostly steady. Factory detection is active throughout the second half but you can click CLEAR ALL and then select the area where you want to detect motion. With the SENSITIVITY cursor adjusts the detection sensitivity. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 49 PRIVACY - You can set privacy masks (max 4) to obscure the visual areas. Even this function you can use if you decide to keep the PRIVACY - You can set privacy masks (max 4) to obscure the visual areas. Even this function you can use if you decide to keep the camera mostly stationary. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 50 AUDIO - For vehicles with audio you can enable input and audio output and adjust the volume. AUDIO - For vehicles with audio you can enable input and audio output and adjust the volume. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 51 September E 'you can also be assigned to the preset a name. To recall the preset, select the number and click CALL. To delete a preset, select the number and press DELETE. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 52 To start the tour, select the number and press CALL. To stop sending any other command. PTZ PROTOCOL - Not used on these models PTZ PROTOCOL - Not used on these models DSE SRL - ITALY - WWW.DSE.EU...
  • Page 53 AUTO RECORD WHEN NETWORK IS ABNORMAL - Automatically starts recording on SD card in case of network failure. RECORDING STREAM - Choose if you want to record on sd card the primary or secondary stream. SD CARD STATUS - Display the status of the card. DSE SRL - ITALY - WWW.DSE.EU...

  • Page 54: User Management

    PLAYBACK - You can play back movies recorded on SD card. USER MANAGEMENT On this page you can create new users that can access the camera USER Press ADD to add a new user with your USER NAME and PASSWORD DSE SRL - ITALY - WWW.DSE.EU...
  • Page 55 INSTALLATION MANUAL IP CAMERAS SPEED DOME SERIES RL Page: 55 Page: 55 On this page you can read the contents of the memory of the camera events DSE SRL - ITALY - WWW.DSE.EU...
  • Page 56 IR power Maximum Strength reduced power IR Strength Enable BLC Enable scanning AB ninety two OSD Menu off OSD on Start tour 1 Start tour 2 98 (38) Start tour 3 99 (39) Start panning 360 ° DSE SRL - ITALY - WWW.DSE.EU...

  • Page 57: Camera Osd Menu

    Recalling the PRESET 95 opens the camera setup menu that allows to operate all configurations that are executed by the browser for what concerns the camera module and the pan and tilt movements. This text menu is useful for setting camera functions directly from an NVR without accessing the computer browser. DSE SRL - ITALY - WWW.DSE.EU...
