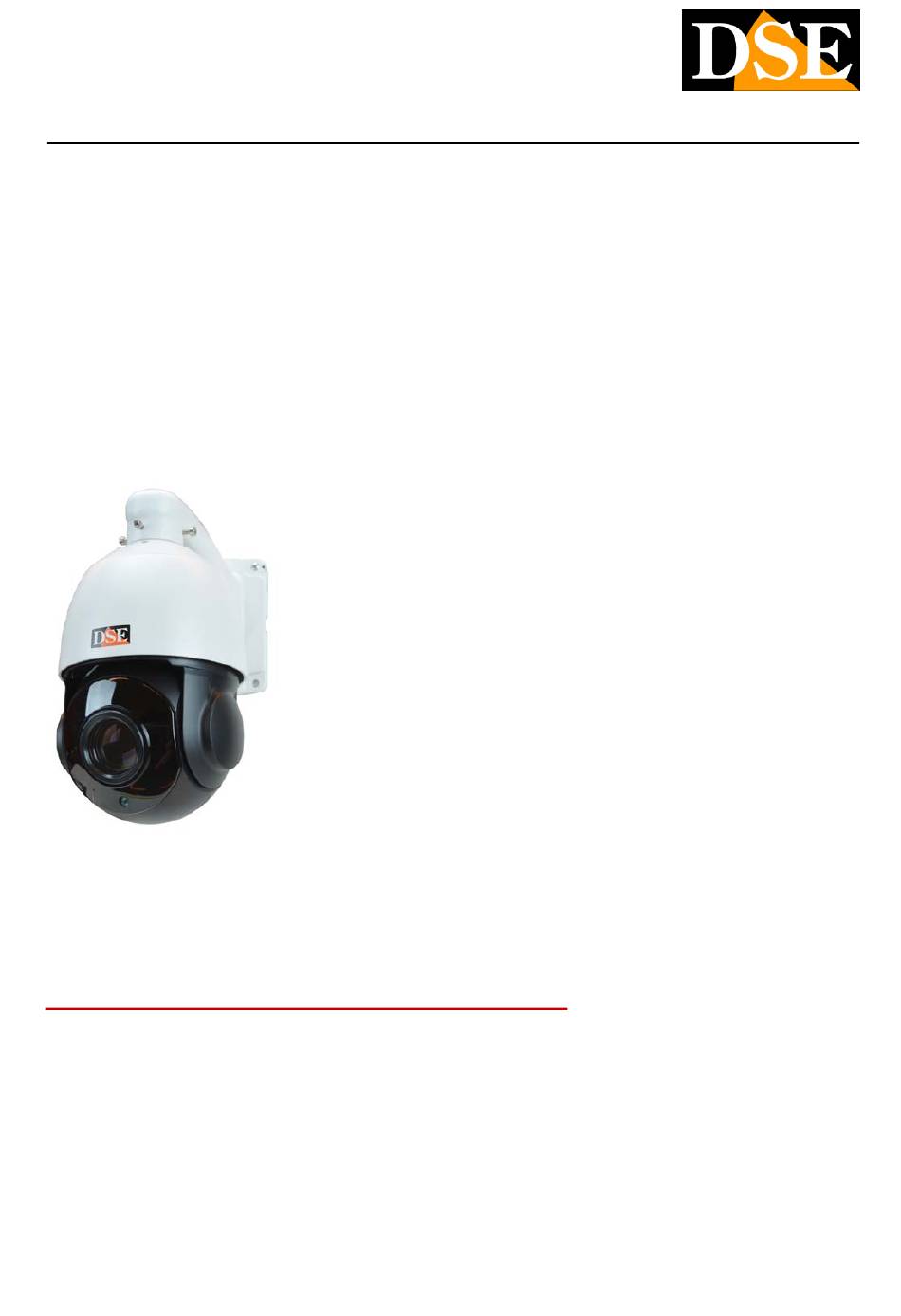

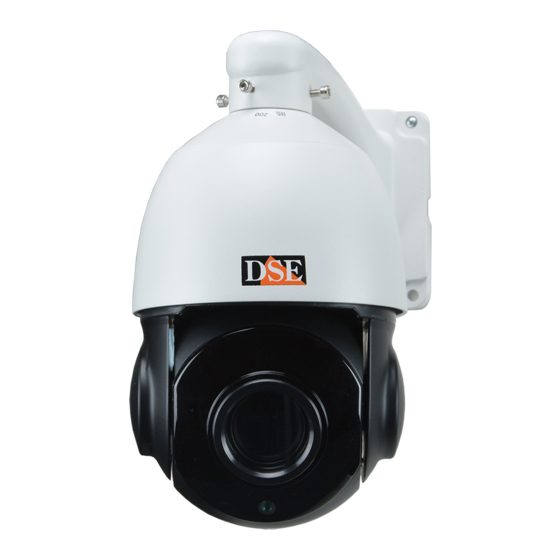

INSTALLATION MANUAL
IP CAMERAS SPEED DOME RJ-SDM18-5
Page:1
RJ Series IP Cameras
Speed Dome of ONVIF IP network
Version C - Reference RJ-SDM18-5
Installation and Configuration
How to connect the telecameraCome make the connection in the network
How to configure the camera
DSE SRL - ITALY - WWW.DSE.EU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAKED RJ Series and is the answer not in the manual?

Questions and answers

Related Manuals for DSE NAKED RJ Series

Summary of Contents for DSE NAKED RJ Series

  • Page 1 RJ Series IP Cameras Speed Dome of ONVIF IP network Version C - Reference RJ-SDM18-5 Installation and Configuration How to connect the telecameraCome make the connection in the network How to configure the camera DSE SRL - ITALY - WWW.DSE.EU...

  • Page 2: Contents Of This Handbook

    Page:2 Contents of this handbook The range of cameras NAKED RJ series is a range of IP cameras for network connection developed for use with NVRs. This manual refers to only RJ-SDM18-5In this manual model explains how to connect the camera, how to make the basic adjustments and how to configure the parameters for the network connection.
  • Page 3 Page:3 Introduction   The DSE speed dome IP cameras RJ series are IP Network Cameras with H264 / H265. These cameras "NAKED" that is not equipped with on NAS and SD card recording their option, either hardware accessories such as audio inputs, alarms etc ..

  • Page 4: Technical Data

    INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:4 Technical data   See updated at tables: https://www.dseitalia.it/Prod_telecamere_ip_speed_dome_PTZ.htm   DSE SRL - ITALY - WWW.DSE.EU...

  • Page 5: Installation

    After connecting the network cable to the switch verified that the LEDs of the switches that correspond to the port that is used to start flashing. If you check remain off the network cable. MOUNTING THE CAMERA DSE SRL - ITALY - WWW.DSE.EU...
  • Page 6 The cable entry may be provided at the center of the bracket if the cable passage is walled. Alternatively a lateral cable entry is available in the lower part of the bracket. DSE SRL - ITALY - WWW.DSE.EU...

  • Page 7: Network Configuration

    On a network PC launched a DOS window available between the Windows accessory programs. Type IPCONFIG at the command prompt and press ENTER. They will see the TCP / IP parameters. The second line is the IP address assigned to your computer. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 8 PING followed by a space and by the IP you wish to assign to the camera. If there is no device responds to that address, you will receive 4 REQUEST TIME OUT as in the following example: DSE SRL - ITALY - WWW.DSE.EU...
  • Page 9 Once the installation is complete, run the CMS program from its desktop icon At the first start the program asks you to create an administrator account in the program. The factory password is EMPTY. You can specify a user name and password at will that will DSE SRL - ITALY - WWW.DSE.EU...
  • Page 10 On the right the following menu. Click on the top button with voice DEVICE MANAGEMENT Press ADD AREA enter the name chosen for the area where you will find the camera that you want to add DSE SRL - ITALY - WWW.DSE.EU...
  • Page 11 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:11 DSE SRL - ITALY - WWW.DSE.EU...
  • Page 12 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:12 DSE SRL - ITALY - WWW.DSE.EU...
  • Page 13 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:13 Select the area you just created and click on the ADD DEVICE button This will open the following window that allows you to manage devices DSE SRL - ITALY - WWW.DSE.EU...
  • Page 14 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:14 Click on the SEARCH ADDRESS button to view all the cameras connected to your network. The default IP address of these cameras is 192.168.1.10 DSE SRL - ITALY - WWW.DSE.EU...
  • Page 15 To do this select from the list the camera that you want to run and press the EDIT DEVICE button. 10. This will open a window containing all of the camera's network settings that we can modify to our liking. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 16 11. You will be brought back to the previous screen. Press again on the ADDRESS SEARCH button to display the camera with the new address. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 17 1. You can now view the camera's live video that you just added to verify that it was added correctly. To do so, expand the IP address of your camera to display the type of device on the top left of the page DSE SRL - ITALY - WWW.DSE.EU...
  • Page 18 PCs on the network for direct visualization and control of the camera without going NVR. It also lets you save videos in the coming local PC acting as a backup recording in addition NVR. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 19 CUSTOM LEVEL. Enable all items for the download and execution of ActiveX especially those NOT marked as safe. E 'can set the items either ENABLE or ASK FOR CONFIRMATION. Finally, save and restart the browser. DSE SRL - ITALY - WWW.DSE.EU...

  • Page 20: Installing Activex

    In order to make sure that the RJ series IP cameras are displayed on the browser you must install the ActiveX components. IF you login without installing activeX you can not see the video. On first access you make, you must click the link in the login window FILE DSE SRL - ITALY - WWW.DSE.EU...
  • Page 21 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:21 Below window appears that lets you choose between PERFORM and the SAVE program. Either option can work. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 22 This manual refers to the English language, but you can choose a different language in the box at the top right. Enter the credentials above in red and click on the "Login" button to access the main camera screen. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 23 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:23 The options in the browser window are described in detail later in this manual.    DSE SRL - ITALY - WWW.DSE.EU...
  • Page 24 NVR or software ONVIF refer to the recording equipment manuals. As a rule, NVR recognize the communication parameters to communicate with the cameras automatically. These cameras use the factory the 8899 port to communicate with ONVIF devices.   DSE SRL - ITALY - WWW.DSE.EU...
  • Page 25 MAPPING WITH WEB ACCESS DOORS ROUTER An installation of IP cameras is often placed inside a LAN connected to the Internet via a router as in the following scheme    DSE SRL - ITALY - WWW.DSE.EU...
  • Page 26 ONVIF DOOR: By default 8899. And 'the port used by the cameras for dialogue with NVR  onvif. This leads, in some models can not be changed. Set the 8899 nell'NVR port to charge the camera. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 27 Remember that web access to IP cameras in this range is much easier if done through the NVR, why the information provided in this chapter are present only for informative purposes for particular applications. DSE SRL - ITALY - WWW.DSE.EU...

  • Page 28: Mobile App

    IP CAMERAS SPEED DOME RJ-SDM18-5 Page:28 Mobile APP These naked cameras are controlled via NVR with its app. If for some reason you wanted access to cellular directly to the camera you can do with the app XMEYE DSE SRL - ITALY - WWW.DSE.EU...
  • Page 29 If you've never run before have access to the browser to your camera should resume the manual and follow the instructions above to connect successfully. This section of the manual start from the login window to enter user name and password for access to the admin / factory. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 30 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:30 DSE SRL - ITALY - WWW.DSE.EU...

  • Page 31: Ptz Control

    6 - CHANNEL ALL RECORD - Pressing this button starts recording of live video. 7 - CLOSE TO RECORD - Pressing this button stops the recording of the live video. 8 - AUDIO - Not used on this model PTZ CONTROL DSE SRL - ITALY - WWW.DSE.EU...
  • Page 32 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:32 In this window you manually control the camera movements, automatic movement and image settings. PTZ CONTROL MANUAL The camera's movement is manually controlled with directional arrows. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 33 With COLOR section you can alter the picture adjustments The adjustments are, in order from top to bottom: BRIGHTNESS (BRIGHTNESS ') CONTRAST (CONTRAST) Saturation (Saturation) HUE (HUE ') In the OTHER you can access more options DSE SRL - ITALY - WWW.DSE.EU...

  • Page 34: Automatic Movements

    COLOR - opens the following image adjustment window MIRROR - Horizontal flip the image FLIP - Vertical flip the image, which is useful if the camera is installed upside down SHARPNESS - Adjusts the sharpness of the image AUTOMATIC MOVEMENTS DSE SRL - ITALY - WWW.DSE.EU...
  • Page 35 CURRENT PRESET section; you can delete all presets by selecting the DEL ALL PRESETS voice. To do so enter the SPECIAL FUNCTIONS section, then under PRESETposizionare the camera, choose the preset number and click the SET button. TOUR DSE SRL - ITALY - WWW.DSE.EU...
  • Page 36 . Once you have added the desired preset awards directional arrow LEFT to return to the section PATROL. Choosing the voice RUN PATROL can activate the patrol selected. Choosing THE PATROL item you can delete the selected patrol. PATTERN DSE SRL - ITALY - WWW.DSE.EU...
  • Page 37 CALL IDLE on the item, then use the arrow keys UP and DOWN to choose the desired action and press the button again - the ZOOM section to confirm. Choose the voice off in the Options menu to turn off IDLE function. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 38 Using this main menu allows some room module settings to use when you have no way to access the camera configuration via a browser (see below) DSE SRL - ITALY - WWW.DSE.EU...

  • Page 39: Browser Configuration

    To exit the menu, once in the main menu page, double tap the + section ZOOM button. Browser - Configuration Using your Internet browser, you can configure the operation of the camera options. Click the DEVICE CFG tab to access the configuration. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 40 IP CAMERAS SPEED DOME RJ-SDM18-5 Page:40 1 2 3 4 5 1 - RECORD This model does not support recording to internal memory ALARM - 2 - ALARM It Contains 6 subfolders: INTELLIGENT ALERT BLIND VIDEO DSE SRL - ITALY - WWW.DSE.EU...
  • Page 41 REGION - Allows you to choose a portion of the frame in which to apply the motion detection PERIOD - Select the times when you want to be motion detection Active ALARM RECORD OUTPUT DELAY CHANNEL SNAPSHOT - Not used DSE SRL - ITALY - WWW.DSE.EU...
  • Page 42 SEND EMAIL - Enables sending via email to the recipients set in the Network section WRITE LOG - Writes the event to the device memory PTZ ACTIVATION - Move the camera due to the alarm DSE SRL - ITALY - WWW.DSE.EU...
  • Page 43 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:43 Set the detection of the camera masking. For options See A Set rielvazione video loss. For options see A) DSE SRL - ITALY - WWW.DSE.EU...
  • Page 44 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:44 Not used on this model DSE SRL - ITALY - WWW.DSE.EU...
  • Page 45 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:45 IS - Not used on this model DSE SRL - ITALY - WWW.DSE.EU...
  • Page 46 BUZZER - Not available on this model APP PUSH - not enabled on this model SEND EMAIL - Enables sending via email to the recipients set in the Network section 3 - SYSTEM GENERAL ENCODE DSE SRL - ITALY - WWW.DSE.EU...
  • Page 47 TIME ZONE - Select the reference time zone. For Italy GMT + 1 HDD FULL - What to do when the Hard Disk is full DVR NO - Number of DVR VIDEO STANDARD - Not used on these models DSE SRL - ITALY - WWW.DSE.EU...
  • Page 48 It gives the possibility to choose between two different bandwidth management mode occupied: CONSTANT BIT RATE (CBR) and VARIABLE BIT RATE (VBR). In CBR mode, the camera maintains a constant bit rate and provides the highest video quality DSE SRL - ITALY - WWW.DSE.EU...
  • Page 49 Here you can change your network settings DHCP ENABLE - The cameras support both manual IP address assignment is automatic assignment from a DHCP server on the network. The latter is typically not used because it could DSE SRL - ITALY - WWW.DSE.EU...
  • Page 50 ONVIF PORT - port for communication with ONVIF products (fixed value 8899) DEVICE INFO - MAC address of the camera (unique identifier of the camera, not editable). DSE SRL - ITALY - WWW.DSE.EU...
  • Page 51 If you can get a static IP from your ISP, these cameras support services DDNS (Dynamic DNS) that continuously monitor the IP address of the camera to the Internet and allow you to compensate for the lack static IP. These services, available online, provide the user DSE SRL - ITALY - WWW.DSE.EU...
  • Page 52 If you want to connect from the outside towards the camera we recommend the manual mapping of ports on the router or the use of an NVR with P2P function to prevent the mapping. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 53 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:53 IS - Here you can customize the graphical interface appearance In the upper section regulates the overlays in the image. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 54 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:54 Not used on this model DSE SRL - ITALY - WWW.DSE.EU...
  • Page 55 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:55 Not used on this model DSE SRL - ITALY - WWW.DSE.EU...
  • Page 56 AE REFERENCE - Recommended 50 BLC - Back Light Compensation DWDR - Wide dynamic range digital. It allows to improve the recovery when they are present in the image areas with different brightness. AE SENSITIVITY - WDR Sensitivity DSE SRL - ITALY - WWW.DSE.EU...
  • Page 57 FLIP - Vertical flip the image. Useful if the camera is installed upside down. ROTATE - Rotate the image 90 and 270 °. Useful for abnormal mounting positions 4 - ADVANCED HDD MANAGE ACCOUNT AUTO MAINTAIN DEFAULT IMPORT EXPORT REBOOT UPGRADE DSE SRL - ITALY - WWW.DSE.EU...
  • Page 58 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:58 TO - Not used on this model DSE SRL - ITALY - WWW.DSE.EU...
  • Page 59 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:59 Here you can manage the accounts for the 'access to the camera DSE SRL - ITALY - WWW.DSE.EU...
  • Page 60 Here you can change the camera's self-maintenance settings AutoReboot SYSTEM - Choose / day of the week and time in which the camera will reboot AutoDelete OLD FILES - Not used on this model DSE SRL - ITALY - WWW.DSE.EU...
  • Page 61 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:61 Here you can select the settings you want to restore to factory default values DSE SRL - ITALY - WWW.DSE.EU...
  • Page 62 IS - Here you can export and import the configuration of the cameras and the LOG events Here you can reboot the camera. You'll be asked to confirm the reboot REBOOT - Reboots the camera DSE SRL - ITALY - WWW.DSE.EU...
  • Page 63 IP CAMERAS SPEED DOME RJ-SDM18-5 Page:63 Here you can update the system. To do this you must specify the directory of the update file. UPGRADE - It 'can make the firmware update, only if requested by the technical DSE 4 - INFO HDD ABOUT VERSION DSE SRL - ITALY - WWW.DSE.EU...
  • Page 64 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:64 TO - Not used on this model DSE SRL - ITALY - WWW.DSE.EU...
  • Page 65 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:65 Here you can view the event log of your camera. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 66 INSTALLATION MANUAL IP CAMERAS SPEED DOME RJ-SDM18-5 Page:66 Here you can view information regarding the version of your camera software. DSE SRL - ITALY - WWW.DSE.EU...
  • Page 67 Cruise Stay on preset for 20 seconds Recall 79 Record Pattern 1 Recall 81 Record Pattern 2 Recall 82 Record Pattern 3 Recall 83 Record Pattern 4 Recall 84 pattern Recording end Recall 85 DSE SRL - ITALY - WWW.DSE.EU...
  • Page 68 62 Draws: 1 cruise commands Recall 63: scan A / B Recall 64: scan 360 degrees Clear all presets Recall 60 Open menus Camera Module Recall 70 Open dome menu Recall 95 Factory data reset Recall 96 DSE SRL - ITALY - WWW.DSE.EU...
