3.1.3

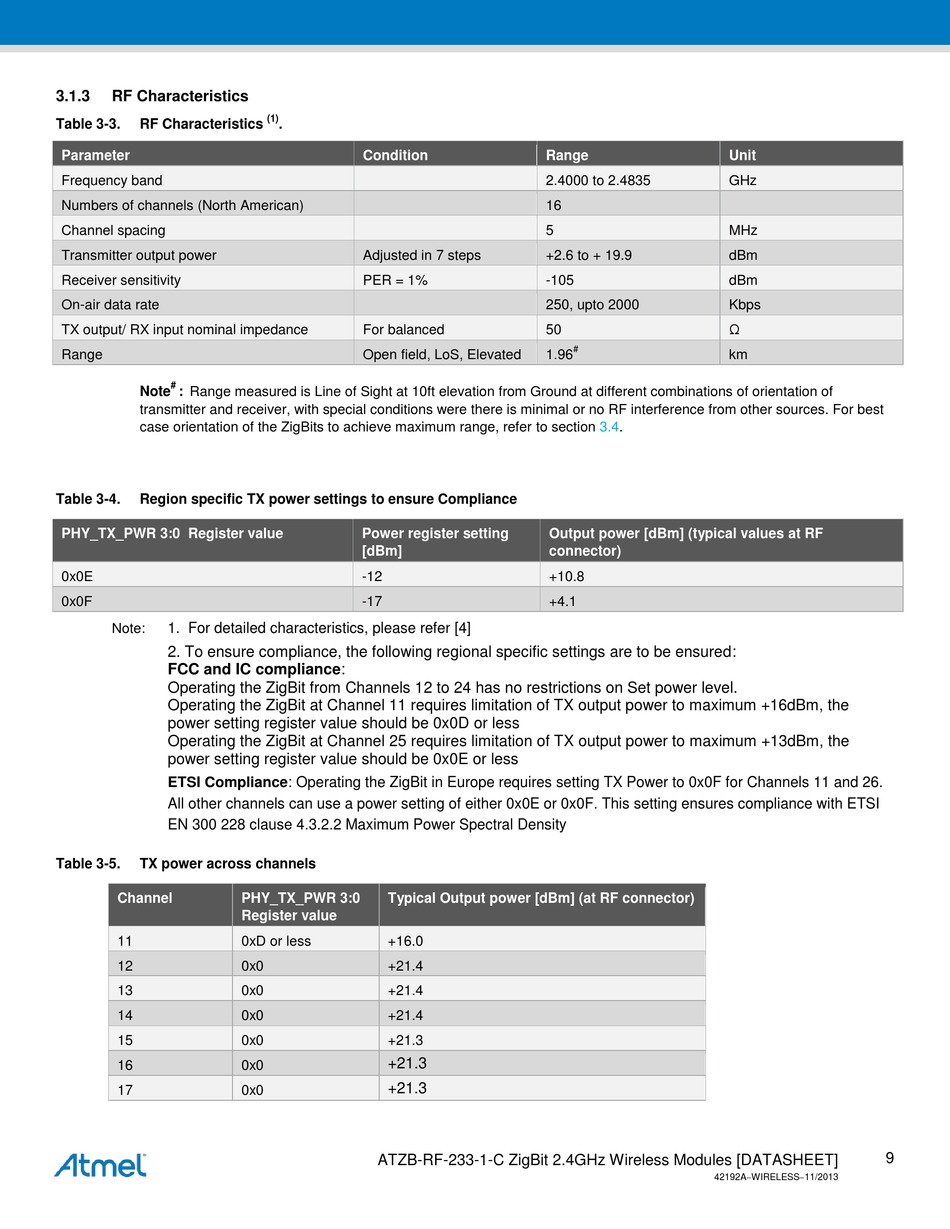

RF Characteristics

Table 3-3. RF Characteristics
Parameter
Frequency band
Numbers of channels (North American)
Channel spacing
Transmitter output power
Receiver sensitivity
On-air data rate
TX output/ RX input nominal impedance
Range
#
Note : Range measured is Line of Sight at 10ft elevation from Ground at different combinations of orientation of
transmitter and receiver, with special conditions were there is minimal or no RF interference from other sources. For best
case orientation of the ZigBits to achieve maximum range, refer to section 3.4.
Table 3-4. Region specific TX power settings to ensure Compliance
PHY_TX_PWR 3:0 Register value
0x0E
0x0F
1. For detailed characteristics, please refer [4]
Note:
2. To ensure compliance, the following regional specific settings are to be ensured:
FCC and IC compliance:
Operating the ZigBit from Channels 12 to 24 has no restrictions on Set power level.
Operating the ZigBit at Channel 11 requires limitation of TX output power to maximum +16dBm, the
power setting register value should be 0x0D or less
Operating the ZigBit at Channel 25 requires limitation of TX output power to maximum +13dBm, the
power setting register value should be 0x0E or less
ETSI Compliance: Operating the ZigBit in Europe requires setting TX Power to 0x0F for Channels 11 and 26.
All other channels can use a power setting of either 0x0E or 0x0F. This setting ensures compliance with ETSI
EN 300 228 clause 4.3.2.2 Maximum Power Spectral Density
Table 3-5. TX power across channels
Channel
11
12
13
14
15
16
17
(1)
.
Condition
Adjusted in 7 steps
PER = 1%
For balanced
Open field, LoS, Elevated
Power register setting
[dBm]
-12
-17
PHY_TX_PWR 3:0 Typical Output power [dBm] (at RF connector)
Register value
0xD or less +16.0
0x0 +21.4
0x0 +21.4
0x0 +21.4
0x0 +21.3
+21.3
0x0
+21.3
0x0
ATZB-RF-233-1-C ZigBit 2.4GHz Wireless Modules [DATASHEET]
Range
2.4000 to 2.4835
16
5
+2.6 to + 19.9
-105
250, upto 2000
50
#
1.96
Output power [dBm] (typical values at RF
connector)
+10.8
+4.1
42192AWIRELESS11/2013
Unit
GHz
MHz
dBm
dBm
Kbps
Ω
km
