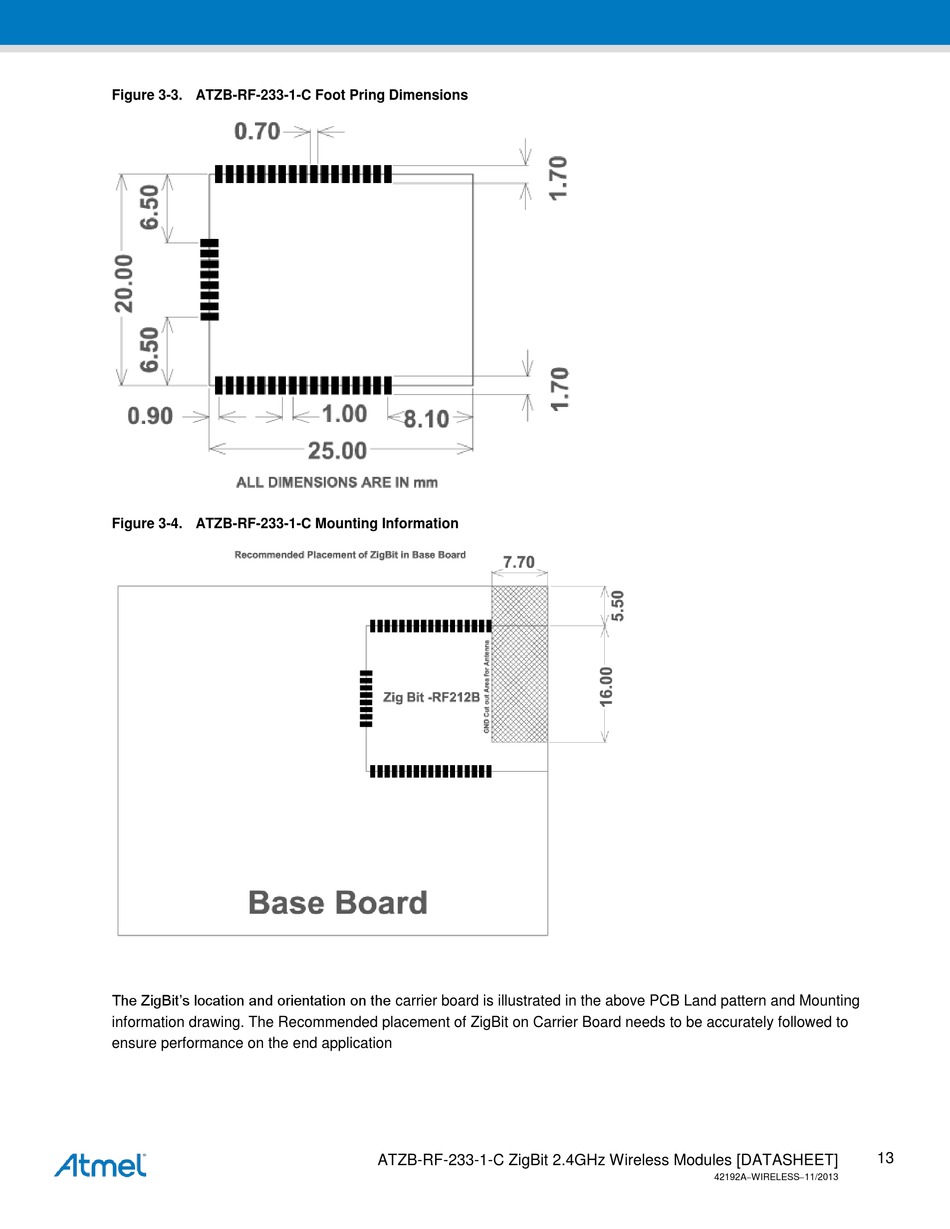

Figure 3-3. ATZB-RF-233-1-C Foot Pring Dimensions
Figure 3-4. ATZB-RF-233-1-C Mounting Information
The ZigBit's location and orientation on the carrier board is illustrated in the above PCB Land pattern and Mounting
information drawing. The Recommended placement of ZigBit on Carrier Board needs to be accurately followed to
ensure performance on the end application
13
ATZB-RF-233-1-C ZigBit 2.4GHz Wireless Modules [DATASHEET]
42192AWIRELESS11/2013
