ZigBit Module Overview

2.

Overview

2.1
The ATZB-RF-233-1-C ZigBit is a compact, low-power, high sensitivity IEEE 802.15.4/ZigBee OEM module with an
integrated FEM built-in. Based on a solid combination of the latest Atmel MCU Wireless hardware platform, 2.4GHz ISM
band transceiver and Atmel Studio Wireless Composer - the ZigBit offers an unmatched combination of superior radio
performance, ultra-low power consumption and exceptional ease of integration.

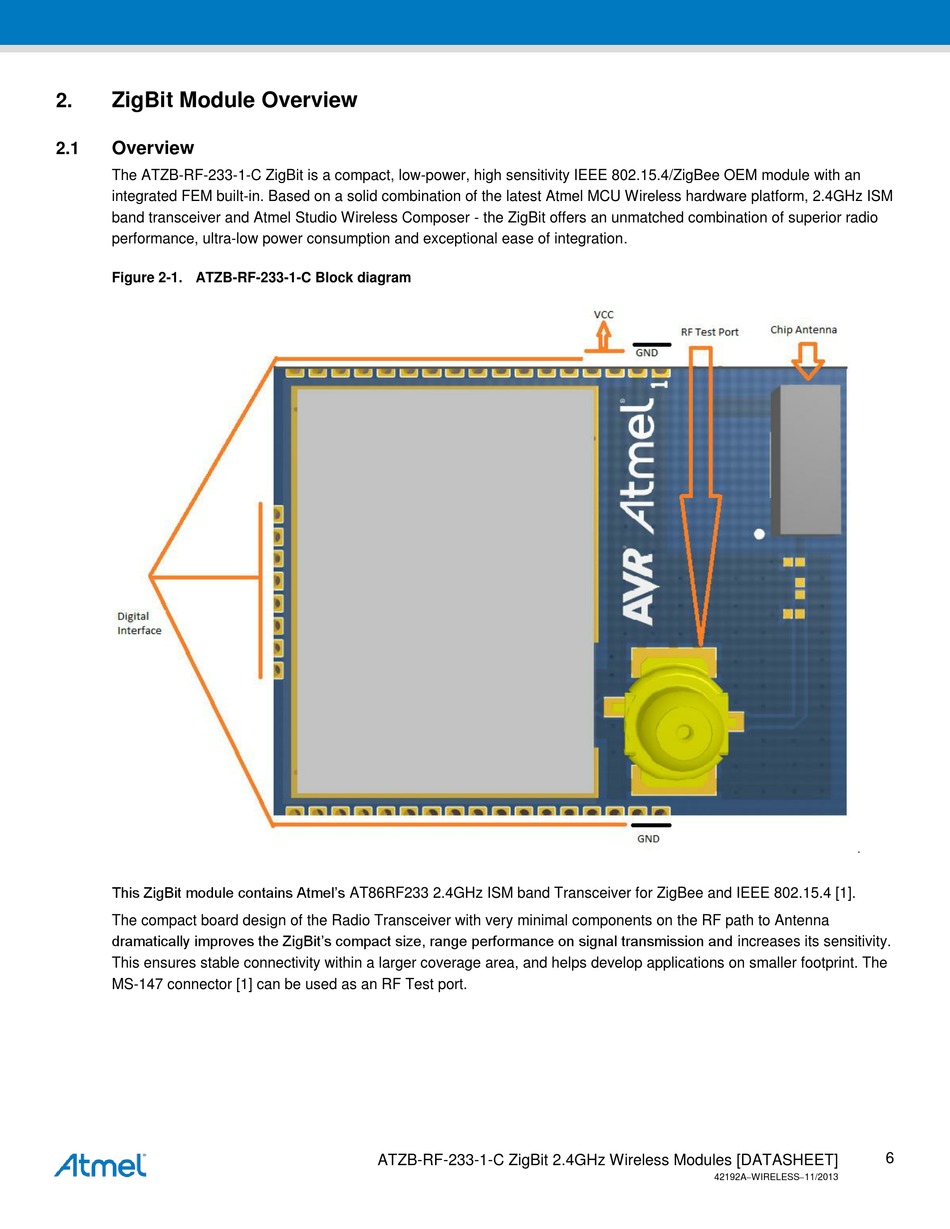

Figure 2-1. ATZB-RF-233-1-C Block diagram
This ZigBit module contains Atmel's AT86RF233 2.4GHz ISM band Transceiver for ZigBee and IEEE 802.15.4 [1].
The compact board design of the Radio Transceiver with very minimal components on the RF path to Antenna
dramatically improves the ZigBit's compact size, range performance on signal transmission and increases its sensitivity.
This ensures stable connectivity within a larger coverage area, and helps develop applications on smaller footprint. The
MS-147 connector [1] can be used as an RF Test port.
