Physical/Environmental Characteristics And Outline; Pin Configuration - Atmel ZIGBIT ATZB-RF-233-1-C Datasheet

18
19
20
21
22
23
24
25
26

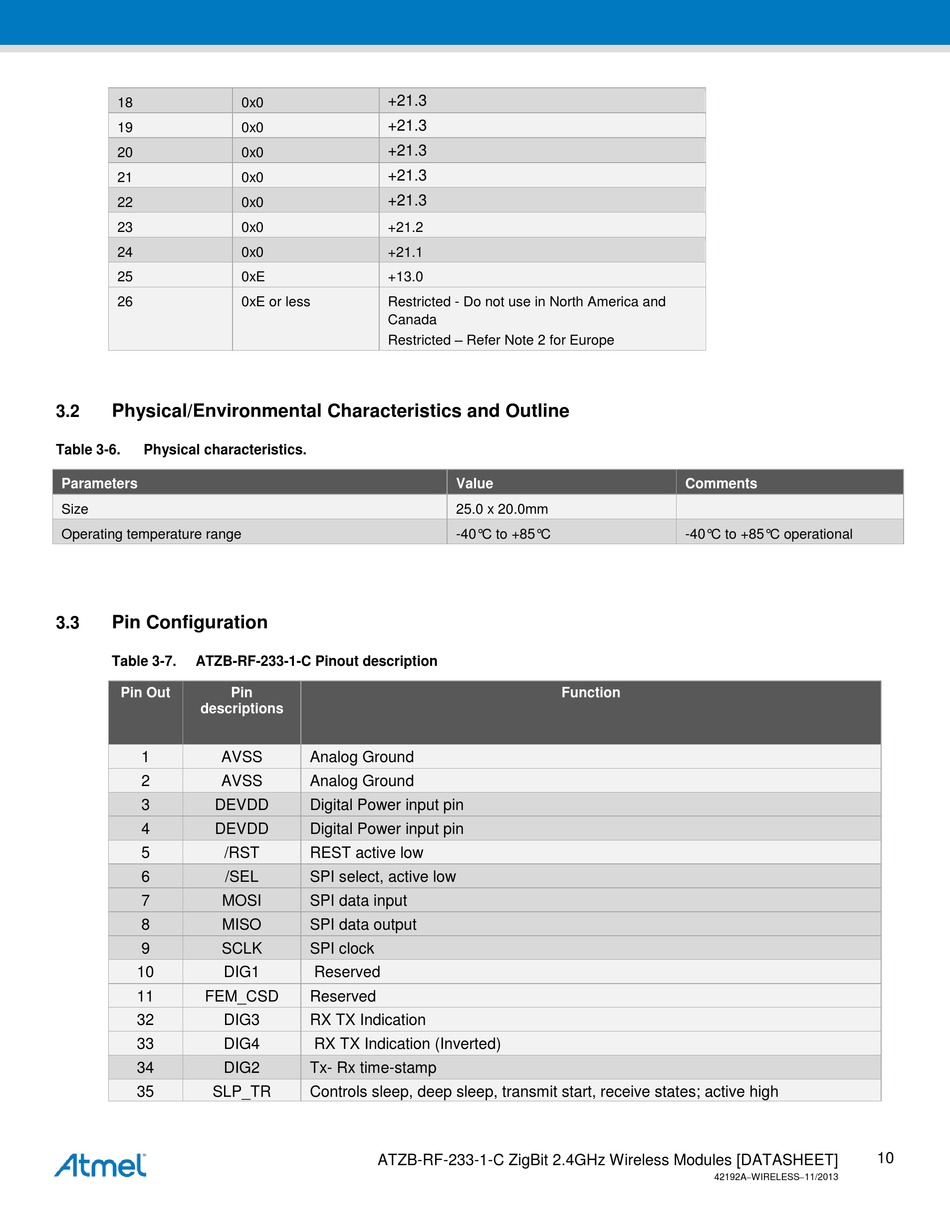

Physical/Environmental Characteristics and Outline

3.2
Table 3-6. Physical characteristics.
Parameters
Size
Operating temperature range

Pin Configuration

3.3
Table 3-7. ATZB-RF-233-1-C Pinout description
Pin Out Pin
descriptions
1 AVSS
2 AVSS
3 DEVDD
4 DEVDD
5 /RST
6 /SEL
7 MOSI
8 MISO
9 SCLK
10 DIG1
11 FEM_CSD
32 DIG3
33 DIG4
34 DIG2
35 SLP_TR
+21.3
0x0
+21.3
0x0
+21.3
0x0
+21.3
0x0
+21.3
0x0
0x0 +21.2
0x0 +21.1
0xE +13.0
0xE or less Restricted - Do not use in North America and
Canada
Restricted – Refer Note 2 for Europe
Analog Ground
Analog Ground
Digital Power input pin
Digital Power input pin
REST active low
SPI select, active low
SPI data input
SPI data output
SPI clock
Reserved
Reserved
RX TX Indication
RX TX Indication (Inverted)
Tx- Rx time-stamp
Controls sleep, deep sleep, transmit start, receive states; active high
ATZB-RF-233-1-C ZigBit 2.4GHz Wireless Modules [DATASHEET]
Value
25.0 x 20.0mm
-40°C to +85°C
Function
Comments
-40°C to +85°C operational
42192AWIRELESS11/2013
10
