Pin Out Pin
descriptions
36 SCL
37 SDA
38 FEM_CPS
39 CLKM
40 IRQ
41 DVSS
42 DVSS

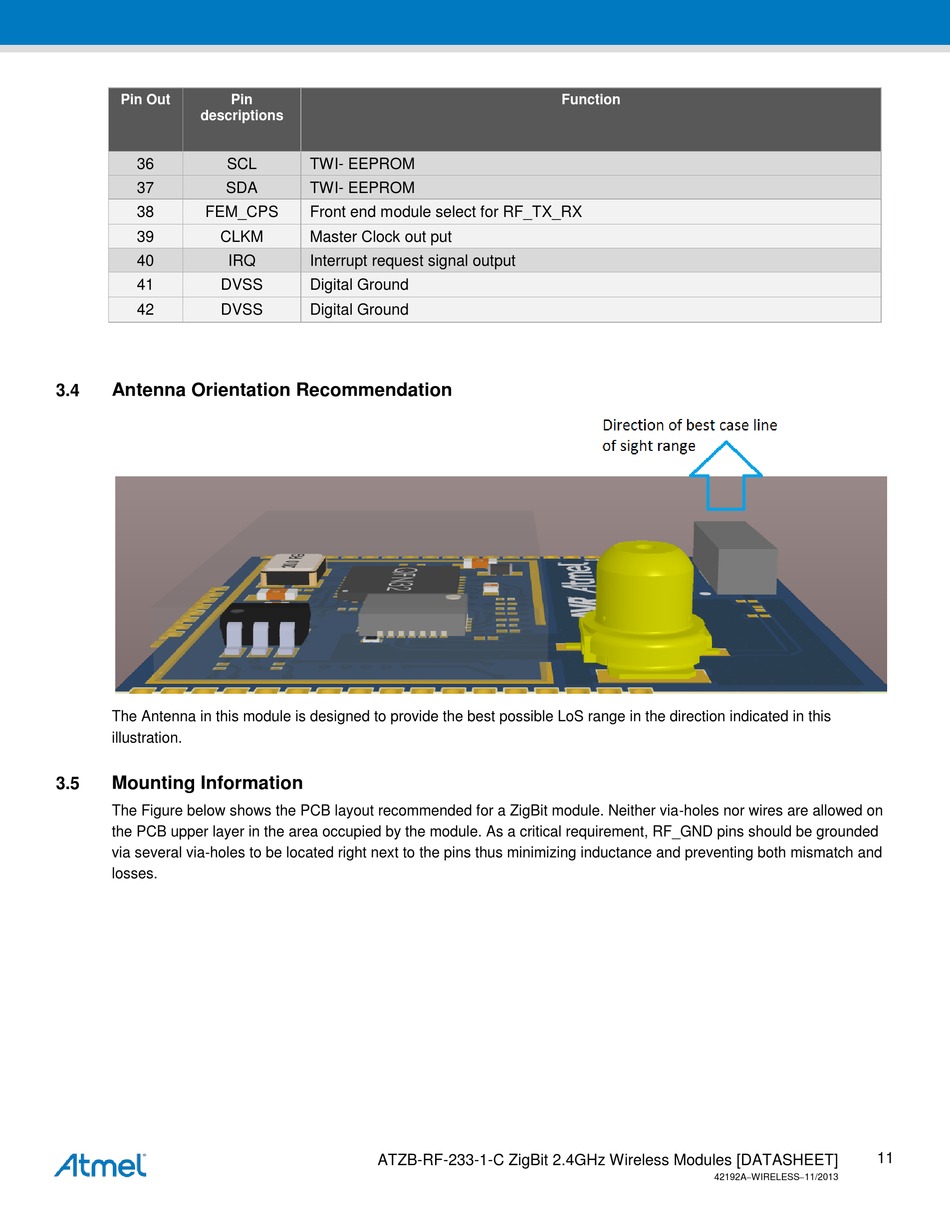

Antenna Orientation Recommendation

3.4
The Antenna in this module is designed to provide the best possible LoS range in the direction indicated in this
illustration.

Mounting Information

3.5
The Figure below shows the PCB layout recommended for a ZigBit module. Neither via-holes nor wires are allowed on
the PCB upper layer in the area occupied by the module. As a critical requirement, RF_GND pins should be grounded
via several via-holes to be located right next to the pins thus minimizing inductance and preventing both mismatch and
losses.
TWI- EEPROM
TWI- EEPROM
Front end module select for RF_TX_RX
Master Clock out put
Interrupt request signal output
Digital Ground
Digital Ground
ATZB-RF-233-1-C ZigBit 2.4GHz Wireless Modules [DATASHEET]
Function
42192AWIRELESS11/2013
