Summary of Contents for thomann Harley Benton CG-10X

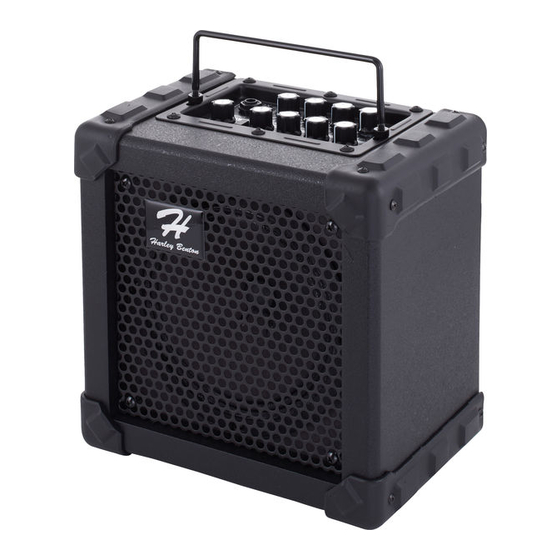

- Page 1 CG-10X guitar combo user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 02.07.2018, ID: 115432...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Installation and starting up........................ 10 Components and functions........................ 15 Technical specifications........................22 Protecting the environment......................23 CG-10X... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner. - Page 5 General notes Warning signs Type of danger Warning – high-voltage. Warning – danger zone. CG-10X...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use Use the device only as described in this user manual. Any other use or use under other oper- ating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. - Page 7 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
- Page 8 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
- Page 9 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 10: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Installation and starting up Signal Ground Phone socket for headphones The figure and the table show the pin assignment of the ¼-inch (6.35-mm) stereo jack plug. output and AUX input Signal (right) Signal (left) Ground Phone socket for MP3 player The figure and the table show the pin assignment of the ¼-inch (3.5-mm) stereo jack plug.
- Page 12 Installation and starting up Mounting the bracket Loosen the nuts at the ends of the supplied bracket until a gap is visible. Insert the bracket ends in the provided openings (21) at the top of the device. guitar combo...
- Page 13 Installation and starting up Fix the bracket in the openings by sliding it straightly to the front. Retighten the nuts on the bracket ends. CG-10X...
- Page 14 Installation and starting up Bracket as mounting aid The supplied bracket can also be fixed in the provided openings at the bottom or the rear side of the device to use it as monitor on stage. guitar combo...
-
Page 15: Components And Functions
Components and functions Components and functions Rear panel CG-10X... - Page 16 Components and functions 1 POWER Power on/off switch. Turns the device on and off. 2 Power cord. 3 [STANDBY] Push-button to enable ([ENABLE]) or disable ([DISABLE]) the power saving mode. If there is no signal input in power saving mode at the [INPUT] jack for 15 minutes, the device will automatically enter standby mode.
- Page 17 Components and functions 4 PHONES ¼-inch (6.35-mm) headphone jack socket (stereo). If you connect headphones, the internal speakers are discon- nected. To avoid annoying noises, turn the ‘VOLUME’ (20) control down before plugging headphones in or out. 5 AUX IN 3.5 mm phone socket (stereo) as additional signal input, p.ex.
- Page 18 Components and functions Top side guitar combo...
- Page 19 Components and functions 9 INPUT ¼-inch (6.35-mm) jack socket (mono) for the input signal coming from your guitar. 10 CH A The LED indicates that channel A (clean) is enabled. 11 SELECT Switch for selecting between channel A (clean) and channel B (distortion). 12 CH B The LED indicates that channel B (distortion) is enabled.
- Page 20 Components and functions 15 MID FREQ Control to set the frequency by using the control ‘MIDDLE‘ to attenuate or increase its level within the range from 200 Hz to 5 kHz. 16 TREBLE Control to attenuate or increase the high frequencies by ±15 dB. 17 DELAY Control to adjust the delay time.
- Page 21 Components and functions 21 VOLUME Control to adjust the volume of channel A. 22 Openings for fixing the supplied bracket as handle at the top of the device. CG-10X...
-
Page 22: Technical Specifications
Technical specifications Technical specifications 10 W (RMS) @ 4 Ω Output power 100 Hz … 10 kHz Frequency response ≥ 70 dB (channel A) Signal-to-noise ratio Input impedance 1 MΩ Input sensitivity Guitar – 30 dBv (channel A) Microphone – 40 dBv AUX, MP3 –... -
Page 23: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate- rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Notes guitar combo...
- Page 25 Notes CG-10X...
- Page 26 Notes guitar combo...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
