CG-10X
guitar combo
user manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CG-10X and is the answer not in the manual?

Questions and answers

Related Manuals for thomann CG-10X

Summary of Contents for thomann CG-10X

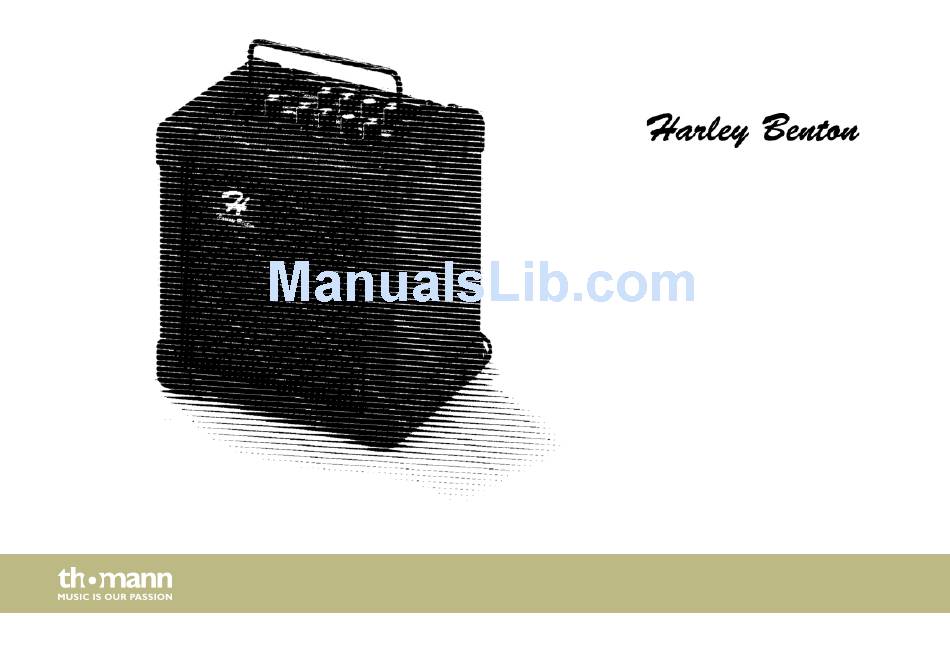

  • Page 1 CG-10X guitar combo user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 12.07.2016, ID: 115432...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Installation and starting up........................ 10 Components and functions........................ 16 Technical specifications........................23 Protecting the environment......................24 CG-10X...

  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual.
  • Page 5 General notes Warning signs Type of danger Warning – high-voltage. Warning – danger zone. CG-10X...

  • Page 6: Safety Instructions

    Safety instructions Safety instructions Intended use Use the device only as described in this user manual. Any other use or use under other oper‐ ating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience.
  • Page 7 Always use proper ready-made insulated two-wire mains cabling (power cord). Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. CG-10X...
  • Page 8 Safety instructions NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
  • Page 9 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. CG-10X...

  • Page 10: Installation And Starting Up

    Installation and starting up Installation and starting up Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 11 Drawing and descriptions explain the pin assignment of a 1/4" TRS phone jack to be used phones output and AUX input (stereo). Right channel signal Left channel signal Ground, shielding 1/8" TRS socket for MP3 player Drawing and descriptions explain the pin assignment of a 1/8" TRS phone jack to be used (stereo). CG-10X...
  • Page 12 Installation and starting up Right channel signal Left channel signal Ground, shielding guitar combo...
  • Page 13 Installation and starting up Mounting the carrying handle Loosen the nuts on the ends of the supplied bracket until a gap is visible. Insert the ends of the bracket into the respective openings (21) on the top of the unit. CG-10X...
  • Page 14 Installation and starting up Fix the bracket into the two openings by sliding the bracket in a straight forward direction. Tighten the nuts firmly at the bracket ends. guitar combo...
  • Page 15 Installation and starting up Bracket as a setup aid The supplied bracket can also be fixed into the prepared openings on the bottom or the back of the device in order to use it as stage monitor. CG-10X...

  • Page 16: Components And Functions

    Components and functions Components and functions Rear panel guitar combo...
  • Page 17 – switches to standby mode. LED [STANDBY] Standby operation. This LED lights up when the device – on activated power save mode – switches to standby mode and turns off when the device is switched back to normal operation. CG-10X...
  • Page 18 Components and functions 4 PHONES 1/4" TRS phone socket (stereo) to connect headphones. Plugging in headphones will disconnect the internal speaker. To avoid disturbing noises, turn the volume control (‘VOLUME’, 20) all the way down before plugging the head‐ phones in or out. 5 AUX IN 1/4"...
  • Page 19 Components and functions Topside CG-10X...
  • Page 20 Components and functions 9 INPUT 1/4" TS phone socket (mono) to connect your guitar. 10 CH A This LED indicates that channel A (clean) is active. 11 SELECT Channel switch. Channel A = clean, channel B = distortion. 12 CH B This LED indicates that channel B (distortion) is active.
  • Page 21 This control sets the delay time for the delay effect. In position ‘OFF’ the delay effect is switched off. 18 CHORUS This control adjusts the chorus effect. In position ‘OFF’ the chorus effect is switched off. 19 LEVEL Volume control for channel B. 20 GAIN Gain control to set the desired distortion level in channel B. CG-10X...
  • Page 22 Components and functions 21 VOLUME Volume control for channel A 22 Topside openings for mounting the supplied bracket as a carrying handle. guitar combo...

  • Page 23: Technical Specifications

    Guitar – 30 dBv (channel A) Microphone – 40 dBv AUX, MP3 – 10 dBv Power supply voltage AC 230 V, 50 Hz Dimensions (W × H × D ) 235 × 235 × 155 mm Weight 3.4 kg CG-10X...

  • Page 24: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 25 Notes CG-10X...
  • Page 26 Notes guitar combo...
  • Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
