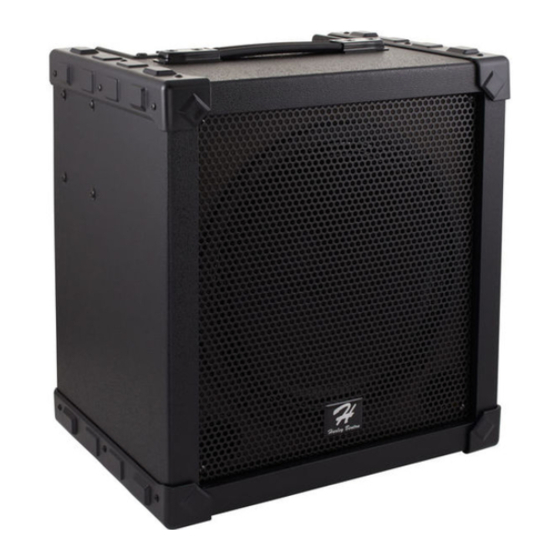

- Page 1 CB-110X bass combo user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 16.11.2015, ID: 115448...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 12 Installation and starting up........................ 13 Components and functions........................ 14 Technical specifications........................21 Connector and pin assignments...................... -
Page 4: General Notes
General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification and playback of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating condi‐ tions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
- Page 10 Safety instructions CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 11 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
-
Page 12: Features
Features Features Special features of the device: 110 watt output power RMS 12" woofer Switchable 4-band EQ Bright and Boost switch Compressor 9 DSP effects, foot switchable (FS not supplied) Headphones, line and speaker outlets AUX input Automatic standby (can be disabled) bass combo... -
Page 13: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 14: Components And Functions
Components and functions Components and functions Top panel bass combo... - Page 15 Components and functions 1 [HEADPHONE] 1/4" phone socket for headphones. If you connect headphones, the internal speaker is disconnected. To avoid annoying noise, turn the ‘VOLUME’ (15) control down before plugging headphones in or out. 2 [LOW] Control to attenuate or increase the low frequencies in the 4-band EQ. 3 [EQUALIZER ON/OFF] To turn the 4-band EQ on or off.
- Page 16 Components and functions 7 [EFFECTS] This LED lights up when one of the built-in effects is active. 8 [E.LEVEL] This control lets you adjust the effect intensity. 9 [COMP] The compressor reduces the signal dynamics above a fixed threshold value, thus limiting loud peaks. The indicator lights up when the compressor responds.
- Page 17 Components and functions 12 LED [STANDBY] Standby mode. This LED lights up when the energy saving mode is enabled and the box enters the standby mode. It goes off again when the box switches back to normal. 13 [POWER] Use the mains switch to turn the unit on or off. 14 [EFFECTS ON/OFF] This switch turns the built-in effects function on or off.
- Page 18 Components and functions 17 [BASS] Bass control of the 2-band tone stack. 18 [VOLUME] Volume control. 19 [BOOST] Press this switch to boost the low frequencies. 20 [BRIGHT] Press this switch to boost the high frequencies. 21 [GAIN] This knob controls the input gain. 22 [INPUT] 1/4"...
- Page 19 Components and functions Rear panel CB-110X...
- Page 20 Components and functions 23 IEC chassis connector with fuse holder. Use the supplied mains cable to connect this mains power connector to an earthed wall outlet. 24 [FOOT SW - EFF ON/OFF] You can connect a foot switch (not supplied) to this 1/4" TRS phone socket to turn the effects function on or off. 25 [EXT SPEAKER] Here you can connect an additional external speaker.
-
Page 21: Technical Specifications
Technical specifications Technical specifications Input impedance Instrument input: –10 dBu/ 1 MΩ AUX input: –10 dBu Output power 110 W (RMS) Speakers 1 × 12" woofer, 4 Ω Fuse 5 mm × 20 mm, 1,6 A, 250 V, träge Operating voltage AC 230 V , 50/60 Hz Power consumption... -
Page 22: Connector And Pin Assignments
Connector and pin assignments Connector and pin assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 23 Connector and pin assignments 1/4" TRS phone plug (stereo, unbalanced) Signal (left) Signal (right) Ground CB-110X...
-
Page 24: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 25 Notes CB-110X...
- Page 26 Notes bass combo...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
