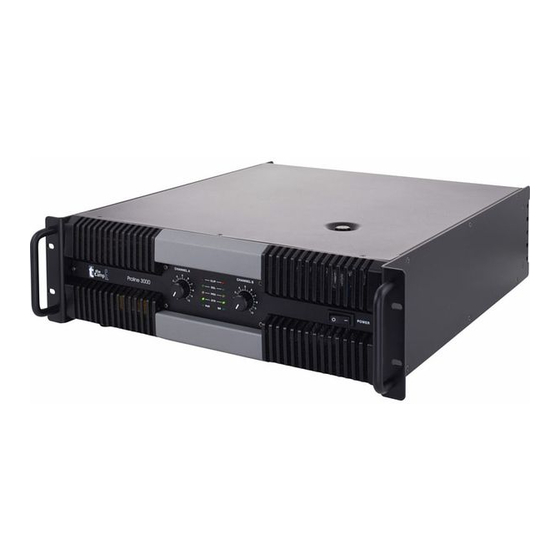

- Page 1 Proline 3000 power amplifier user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 04.07.2014, ID: 168990...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Installation and starting up........................ 11 Connections and operating elements................... 17 Technical specifications........................22 Cleaning............................... 24 Protecting the environment......................25 Proline 3000... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. Proline 3000...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use Use the device only as described in this user manual. Any other use or use under other oper‐ ating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. - Page 7 Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician. Proline 3000...
- Page 8 Safety instructions CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 9 Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Proline 3000...
- Page 10 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 11: Installation And Starting Up
Electric shock caused by high voltages at the power amplifier output The output voltages of modern high-performance amplifiers may result in death or serious injury. Never touch the bare ends of loudspeaker cables when the amplifier is on. Proline 3000... - Page 12 Installation and starting up CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. NOTICE! Magnetic fields The device generates strong magnetic fields that can interfere with the function of poorly shielded devices.
- Page 13 This model offers balanced XLR sockets for signal inputs. Drawing and table indicate the pin assignment. Ground, shielding Signal (+) Signal (–) 1/4" phone sockets for signal Drawing and table indicate the pin assignment of 1/4" phone jacks to be used (mono, bal‐ inputs anced). Signal (+) Signal (–) Ground, shielding Proline 3000...
- Page 14 Installation and starting up speakON mounting connectors The illustration alongside shows the pin assignment of the lockable speakON mounting con‐ for speaker outputs nectors. Rack mounting The unit has been designed for rack mounting in a standard 19-inch rack; it occupies three rack units.
- Page 15 The two amplifier channels are internally connected in such a way that twice the output power is available. Only the input signal from channel A is amplified and loudspeakers are connected only to the correspondingly marked output. The volume is controlled via the control knob for channel A. Proline 3000...
- Page 16 Example: If you have two loudspeakers with the same impedance, their impedance doubles if they are connected in a series, their impedance halves if they are connected in parallel. For detailed information related to this topic please refer to our Online Guide ‘PA Speakers’ (www.thomann.de). power amplifier...
-
Page 17: Connections And Operating Elements
Connections and operating elements Connections and operating elements Front panel Proline 3000... - Page 18 Connections and operating elements 1 POWER Mains switch to turn the unit on and off. 2 CHANNEL A / CHANNEL B Volume control for the respective channel 3 LED indicators CLIP Lights up subject to one of the following conditions: Overloading.
- Page 19 One or more protection circuits have been activated, or the device is defective. Lights up when the unit is operated in stereo mode. Lights up when the unit is operated in parallel mode. Lights up when the unit is operated in bridged mode. Proline 3000...
- Page 20 Connections and operating elements Rear panel 4 XLR mounting socket for the input signal in channel A 5 1/4" phone socket for the input signal in channel A 6 XLR mounting socket for the input signal in channel B 7 1/4" phone socket for the input signal in channel B power amplifier...
- Page 21 Resettable fuse. The fuse switches off at too high current consumption of the amplifier. Once the problem is solved, the fuse will automatically be reset, the device is operational again. The switch can be used to force a reset. 14 Mains cable 15 Fan Proline 3000...
-
Page 22: Technical Specifications
Technical specifications Technical specifications Stereo, 8 Ω: 2 × 1100 W Output power Stereo, 4 Ω: 2 × 1500 W Stereo, 2 Ω: 2 × 1800 W Bridged, 8 Ω: 3000 W Parallel, 2 Ω: 2 × 1800 W Frequency response, ± 1,5 dB 20 Hz…20 kHz Input sensitivity 0.77 V... - Page 23 AC 220 – 240 V , 50/60 Hz Power consumption (at 50 % of rated output 1550 W power @ 8 Ω) Dimensions (W × D × H) 482 mm × 460.5 mm × 132 mm Weight 37 kg Proline 3000...
-
Page 24: Cleaning
Cleaning Cleaning Fan grids The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. power amplifier... -
Page 25: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Proline 3000... - Page 26 Notes power amplifier...
- Page 28 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
