2.8.

BMW EWS3

This section contains overall information about BMW EWS3 connection.
This is not intervention connection way uses EWS3 diagnostic line. With the
"Device Programmer Desktop" software (P/C: 2-001-0001) you can read,
write, decode and modify (VIN, Keys,...) EEPROM data (see Figure 9).

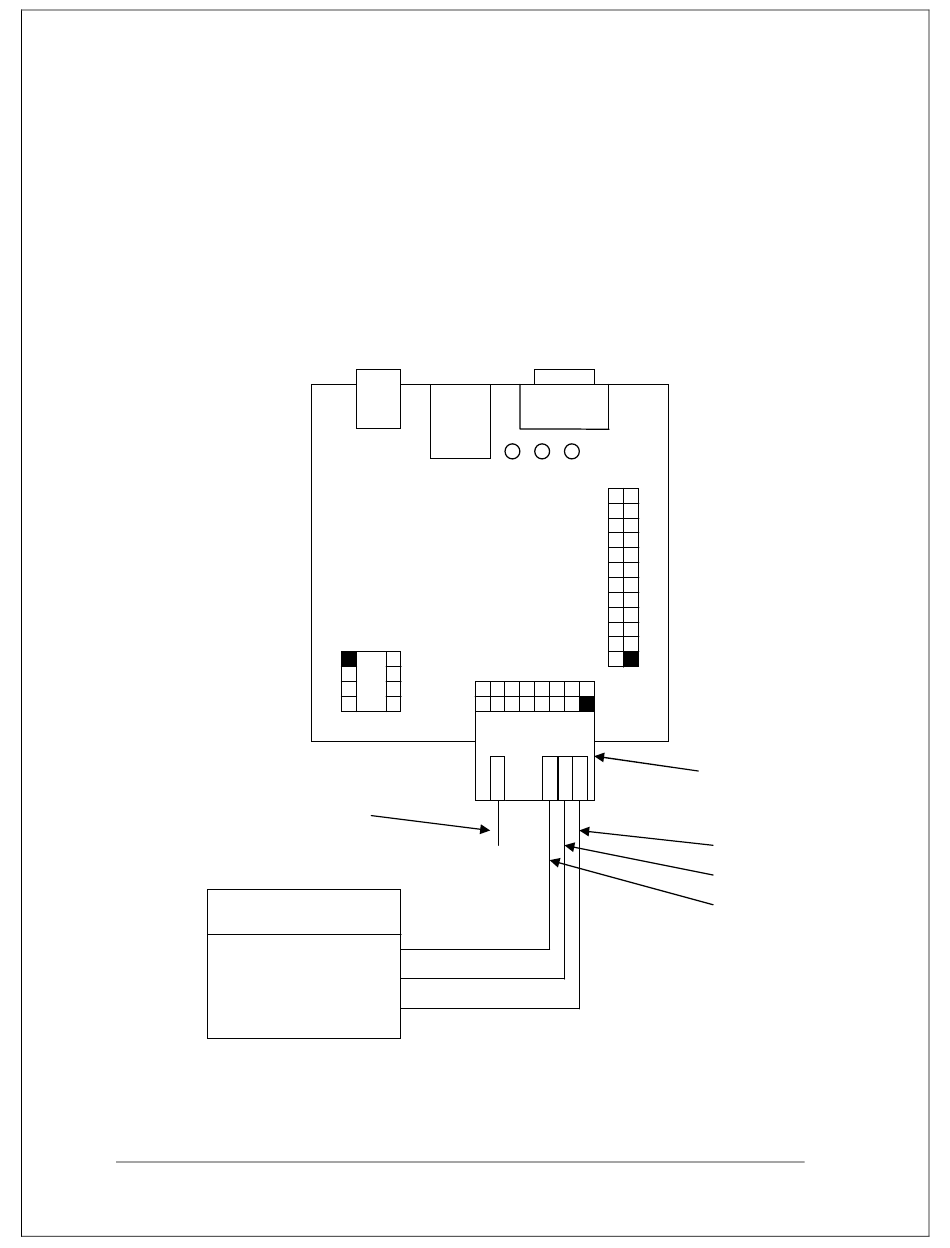

Figure 8. shows BMW EWS3 and XPROG-m connection using K-Line
(P/C: 1-002-0007)
adapter.
Connect this pin to
MCU MODB pin.
(See 2.2.3 MC68HC11EA9 section)
BMW EWS3
Pin 10 (+30)
Pin 13 (K-Line)
Pin 9 (Ground)
XPROG-m
Users manual
Figure 8. BMW EWS3 connection
WWW.ESOBD2.COM
K-Line adapter
P/C: 1-002-0007
GND
K-Line
+12V
TMT
© 2005
P/C: 3-001-0001
34
