Mc68Hc(S)12 Family; Mc68Hc12B32; Mc68Hc12Be32 - TMT XPROG-m User Manual

2.4.

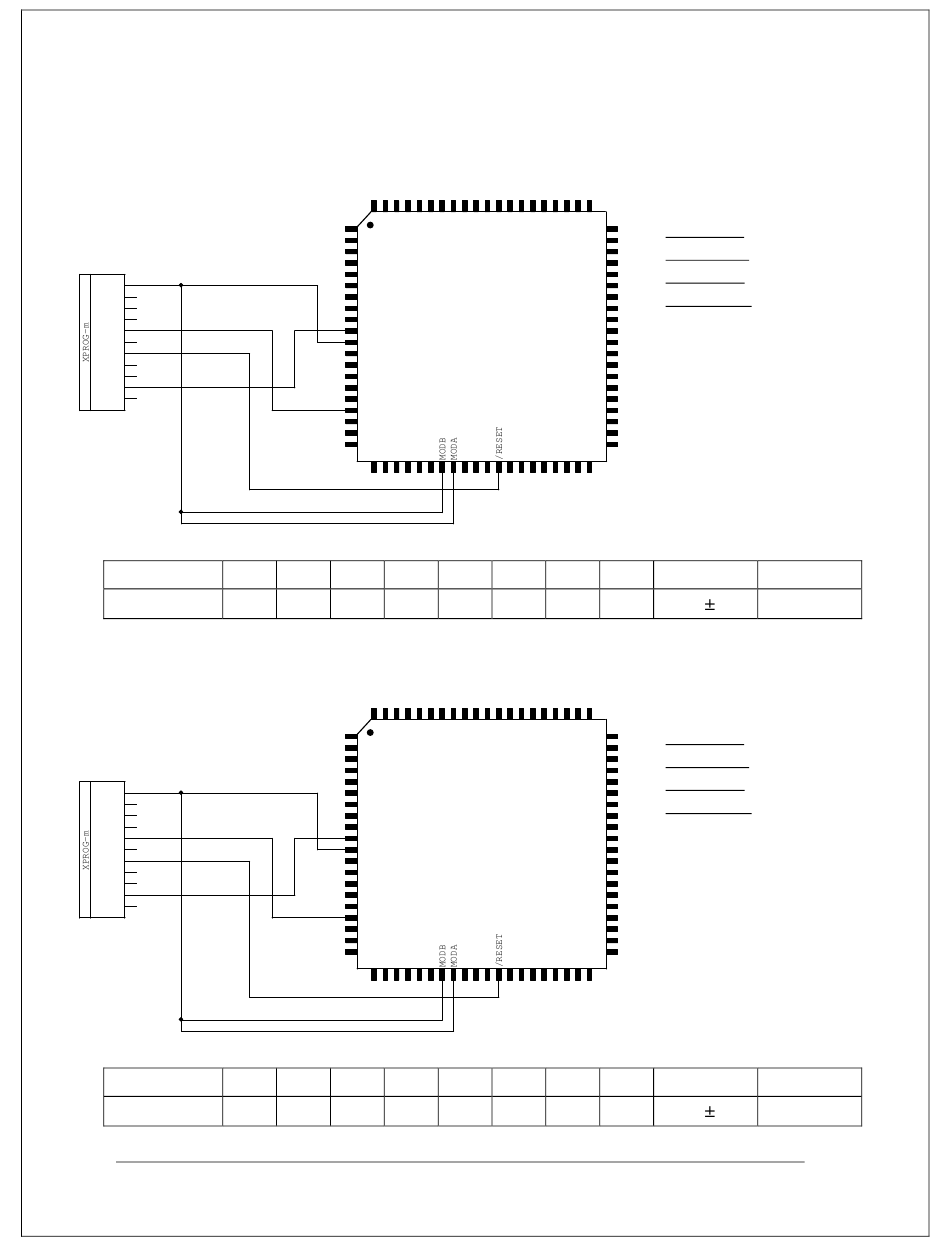

MC68HC(S)12 family

2.4.1. MC68HC12B32

GND
B0
B1
B2
B3
B4
B5
B6
B7
Vcc
VppR
B0
XPROG pin
Signal level -

2.4.2. MC68HC12BE32

GND
B0
B1
B2
B3
B4
B5
B6
B7
Vcc
VppR
XPROG pin B0
Signal level -
XPROG-m
Users manual
Vdd
Vss
QFP80
BKGD
Optional-must be Lo
Optional-must be Lo
B1 B2 B3 B4
- - 0/1 -
Vdd
Vss
QFP80
BKGD
Optional-must be Lo
Optional-must be Lo
B1 B2 B3 B4
- - 0/1 -
Mask sets: 1H91F, 3H91F
Oscillator: 33, 34 pin
Packages: QFP80
EEPROM: 0x0D00 – 0x0FFF
B5 B6 B7
0/1 - - +5V 5%
Mask sets: 2H54T
Oscillator: 33, 34 pin
Packages: QFP80
EEPROM: 0x0D00 – 0x0FFF
B5 B6 B7
0/1 - - +5V 5%
