2.1.11. MC68HC05V12

Mask sets: 1H24M
Packages: PLCC68
EEPROM: 0x0240 – 0x033F
The MC68HC05V12 support on-board and ICP (in-circuit programming)
modes for reading and writing EEPROM data.
MC68HC05V12 on-board programming

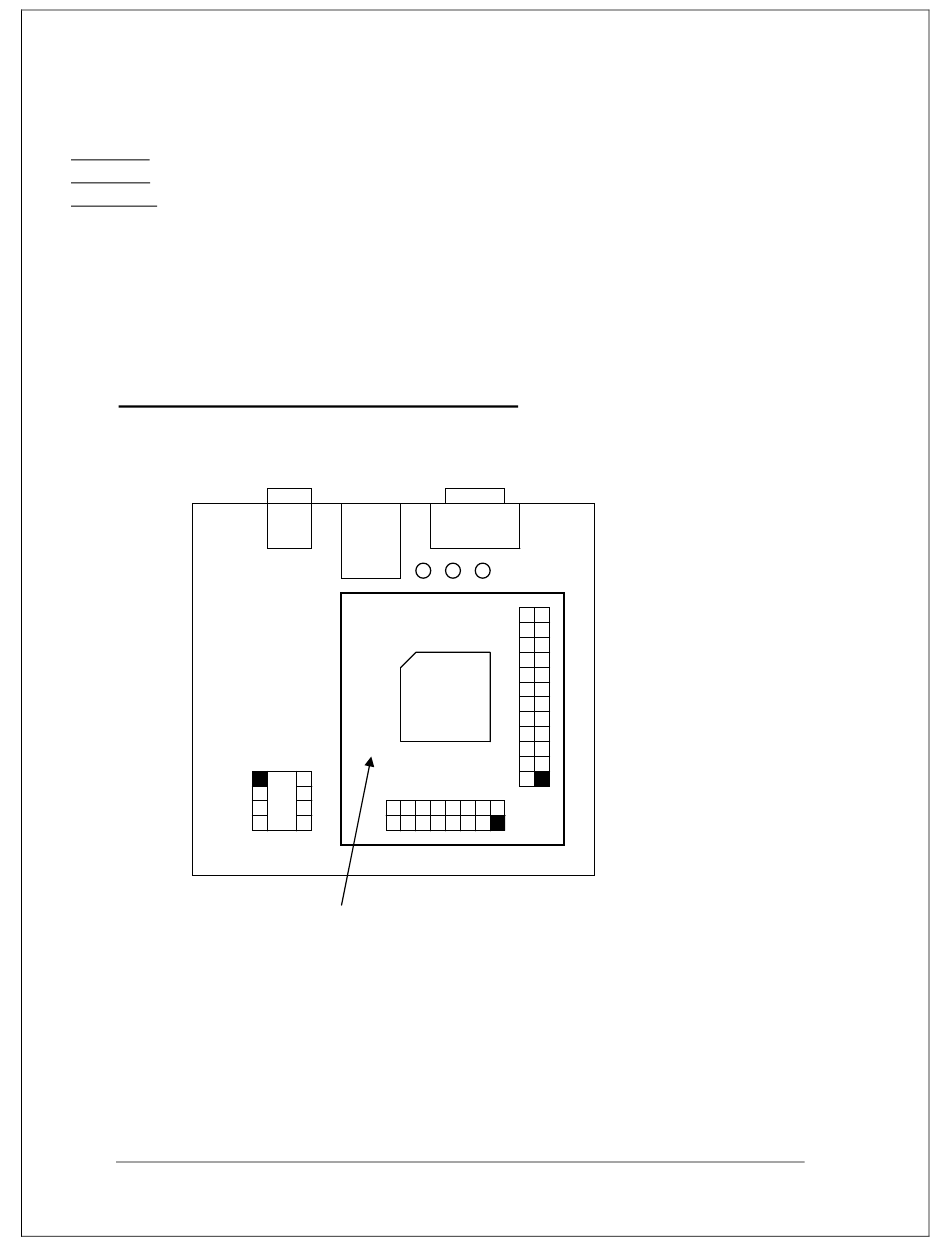

The suitable programming adapter must be mounted (see Figure).
MC68HC05V12 programming adapter
P/C: 1-002-0009
XPROG-m
Users manual
PLCC68
