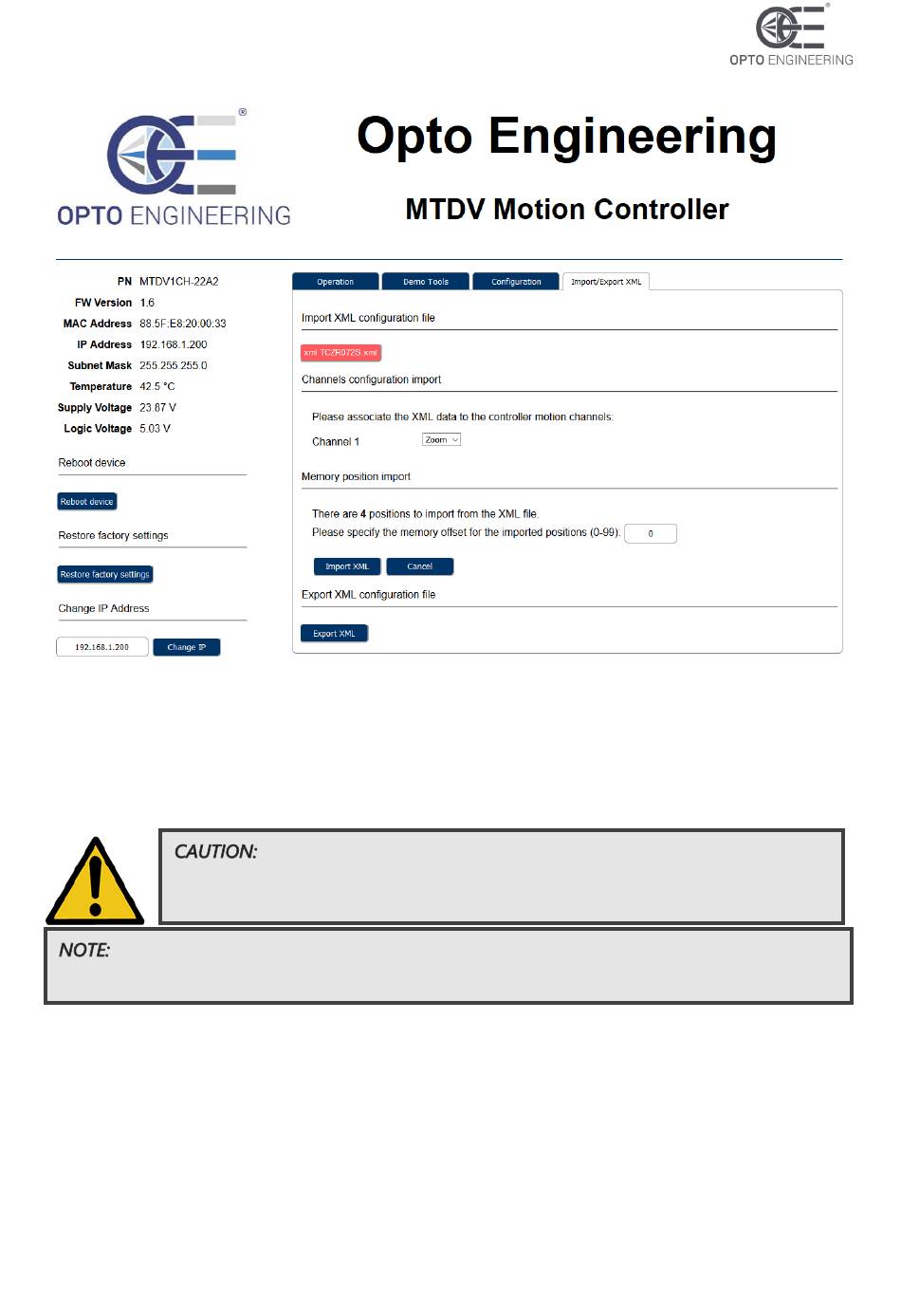

Figure 4: MTDV GUI – Import/Export XML tab after successful loading of XML file.

5.2. Clamping, turning on and focusing

The TCZRS must be mounted on a rigid support by means of adequate clamps. Specifically, it must
be clamped using its M6 clamping holes.
internal components and alter the overall optical performance.
In case of first use of your MTDV motion controller, a specific first configuration is needed.
First use of TCZRS with MTDV motion controller
Please see section
Connect the TCZRS to a MTDV motion controller using the CBMT002, then turn on the product by
supplying 24V to the power connector of the MTDV. When you turn on the device, it performs a
homing procedure and it stops to the last reached position.
After clamping, attaching the camera and turning on the device, please follow step by step the
focusing procedure explained below:
1. Adjust the WD until it is equal to the WD value listed on the test report provided with your
TCZRS.
2. Reach the maximum magnification position (see section 5.3).
