- Page 1 INSTRUCTIONS MANUAL PCHI023-AF PCHI lens with electronic focusing OPTICS V 1.0 - eng...
- Page 2 PCHI023-AF | INSTRUCTIONS MANUAL INDEX 1. PRODUCT OVERVIEW ................3 2. SAFETY WARNINGS .................. 3 3. PRODUCT WARRANTY ................3 3.1. Warranty ..........................3 4. SPECIFICATIONS..................4 4.1. Specifications table ......................4 5. PINOUT AND CONTROLLER ..............5 5.1. Connector and pinout ......................5 5.2.

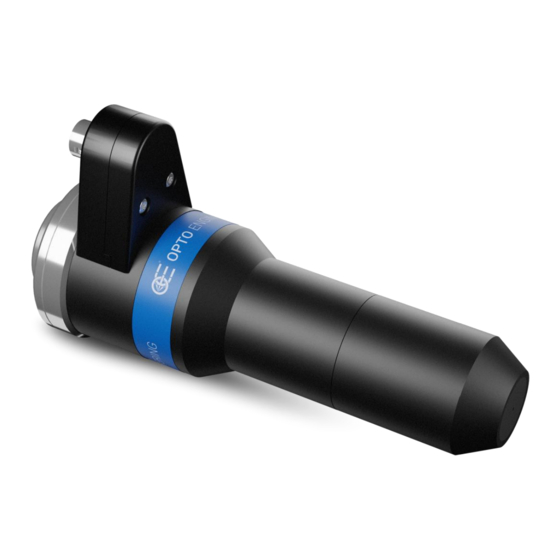

- Page 3 PCHI023-AF integrates a liquid lens module which allows for fast and accurate refocusing of the lens. This solution is dedicated to fully automated lines, or applications with frequent change in product types.
- Page 4 PCHI023-AF | INSTRUCTIONS MANUAL 4. SPECIFICATIONS 4.1. Specifications table 2/3” Detector type Image circle Ø (mm) Field of view (diameter x height) Minimum (mm x mm) 10 x 10 Maximum (mm x mm) 120 x 190 Optical specifications Wavelength range (nm) 450..650...
- Page 5 Compatible controllers The PCHI tunable lens must be controlled by a suitable lens driver. Only the following part numbers are considered fully compliant with the PCHI023-AF. CBGPIO6PMF-3M, 6 Pin Hirose Male - Female moulded connector cable, 3 m RT-EL-E-4i, USB driver for electrical lenses, Industrial housing with 6-pin Hirose connector, Output current: 0 to +/-250 mA, I2C sensor read-out.
- Page 6 PCHI023-AF | INSTRUCTIONS MANUAL V 1.0 - eng...
