opto engineering TCZR072S Instruction Manual

8x bi-telecentric zoom lenses with motorized control
Hide thumbs
Table of Contents

Advertisement

Quick Links

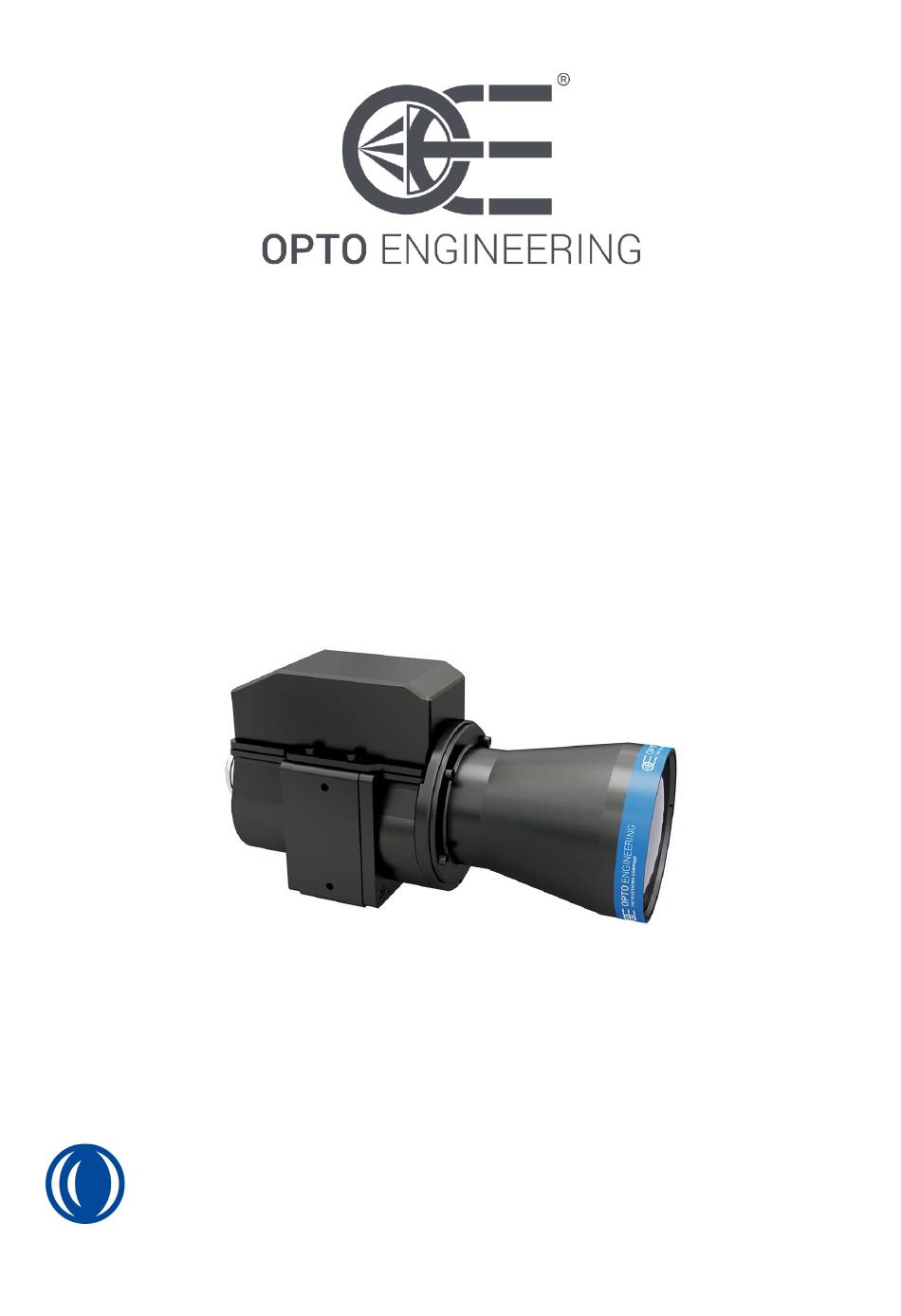

8x Bi-Telecentric zoom lenses
with motorized control
TCZR036S
TCZR072S
INSTRUCTION MANUAL
OPTICS
V 1.1 - eng

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCZR072S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for opto engineering TCZR072S

Summary of Contents for opto engineering TCZR072S

  • Page 1 8x Bi-Telecentric zoom lenses with motorized control TCZR036S TCZR072S INSTRUCTION MANUAL OPTICS V 1.1 - eng...

  • Page 2: Table Of Contents

    INDEX 1. PRODUCT OVERVIEW ......................3 2. SAFETY WARNINGS .......................3 3. PRODUCT WARRANTY ......................3 3.1. Warranty .................................. 3 3.2. Applied directives ..............................4 4. SPECIFICATIONS ........................4 4.1. Specifications table ............................. 4 4.2. Connector ................................5 5. INSTRUCTIONS FOR USE WITH MTDV MOTION CONTROLLER ......6 5.1.

  • Page 3: Product Overview

    1. PRODUCT OVERVIEW TCZR036S and TCZR072S are zoom revolver telecentric lenses that provide up to four different magnification changes. In particular, TCZR036S and TCZR072S perform discrete (non-continuous) magnification changes while working at the same fixed working F-number and at the same working distance.

  • Page 4: Applied Directives

    3.2. Applied directives Opto Engineering srl, with registered office in Strada Circonvallazione Sud 15, 46100 Mantova (Mn), Italy, states that the products described in this manual are marked with “CE” and comply therefore with the following applicable Directives and their amendments: RoHS Directive 2011/65/EU.

  • Page 5: Connector

    Number of motors Type Bipolar stepper RMS winding current (mA) Winding voltage Steps per revolution Environmental specifications Operating temperature (°C) 0 to 40 Storage temperature (°C) 0 to 50 Humidity 10-85 non-condensing IP rating Installation Indoor use only. The product must be shielded from vibration sources and impulse forces 4.2.

  • Page 6: Instructions For Use With Mtdv Motion Controller

    MTDV motion controller is a general purpose motion controller. If you connect it to a TCZRS zoom lens for the first time, you need to properly configure its parameters. This operation is fast and simple. You only need: TCZR072S or TCZR036S zoom lens • MTDV1CH-22A2 motion controller •...
  • Page 7 5.1.3. Open the GUI and Load the XML configuration file Open a browser and type 192.168.1.200 in the address bar. Now you are in the “Operation” web page of the MTDV GUI. Figure 3: MTDV GUI – Operation tab Click the button “Import/Export XML” (top-right of the web page) and click “Browse XML file” to select and load the XML file previously downloaded.

  • Page 8: Clamping, Turning On And Focusing

    Figure 4: MTDV GUI – Import/Export XML tab after successful loading of XML file. 5.2. Clamping, turning on and focusing The TCZRS must be mounted on a rigid support by means of adequate clamps. Specifically, it must be clamped using its M6 clamping holes. Clamping the product in other positions might seriously damage internal components and alter the overall optical performance.

  • Page 9: How To Change The Magnification With Mtdv Motion Controller

    3. Precisely adjust the mount position by means of adding/removing back focal adjustment spacers until you find the best focusing position. 4. Adjust the phase angle. Once you find the right phase, lock the screws (M2 metric thread). 5.3. How to change the magnification with MTDV motion controller Be sure to correctly load the lens XML configuration file (see sections 5.1.1 and 5.1.3 for details).
  • Page 10 V 1.1 - eng...
