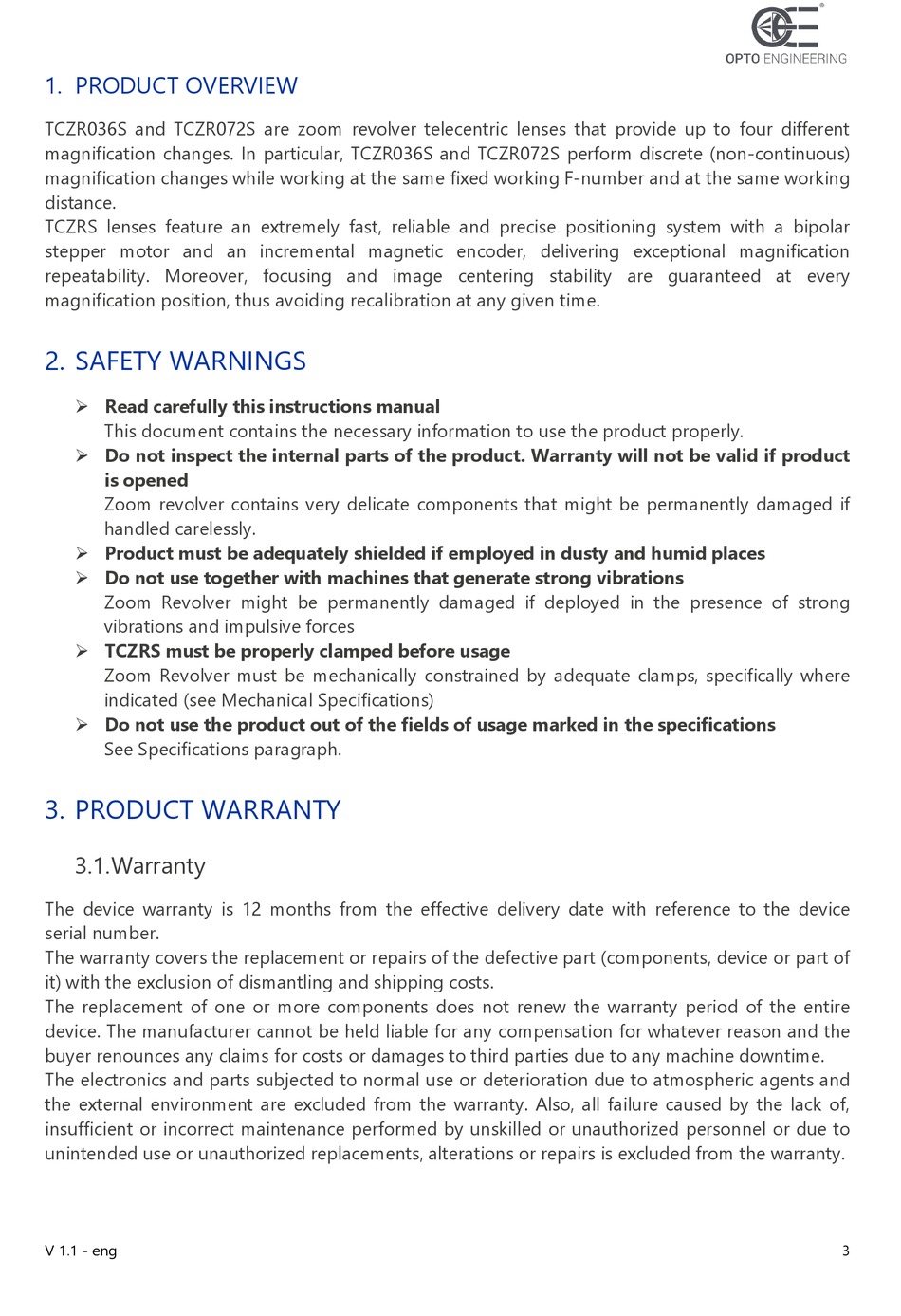

1. PRODUCT OVERVIEW

TCZR036S and TCZR072S are zoom revolver telecentric lenses that provide up to four different
magnification changes. In particular, TCZR036S and TCZR072S perform discrete (non-continuous)
magnification changes while working at the same fixed working F-number and at the same working
distance.
TCZRS lenses feature an extremely fast, reliable and precise positioning system with a bipolar
stepper motor and an incremental magnetic encoder, delivering exceptional magnification
repeatability. Moreover, focusing and image centering stability are guaranteed at every
magnification position, thus avoiding recalibration at any given time.

2. SAFETY WARNINGS

 Read carefully this instructions manual
This document contains the necessary information to use the product properly.
 Do not inspect the internal parts of the product. Warranty will not be valid if product
is opened
Zoom revolver contains very delicate components that might be permanently damaged if
handled carelessly.
 Product must be adequately shielded if employed in dusty and humid places
 Do not use together with machines that generate strong vibrations
Zoom Revolver might be permanently damaged if deployed in the presence of strong
vibrations and impulsive forces
 TCZRS must be properly clamped before usage
Zoom Revolver must be mechanically constrained by adequate clamps, specifically where
indicated (see Mechanical Specifications)
 Do not use the product out of the fields of usage marked in the specifications
See Specifications paragraph.

3. PRODUCT WARRANTY

3.1. Warranty

The device warranty is 12 months from the effective delivery date with reference to the device
serial number.
The warranty covers the replacement or repairs of the defective part (components, device or part of
it) with the exclusion of dismantling and shipping costs.
The replacement of one or more components does not renew the warranty period of the entire
device. The manufacturer cannot be held liable for any compensation for whatever reason and the
buyer renounces any claims for costs or damages to third parties due to any machine downtime.
The electronics and parts subjected to normal use or deterioration due to atmospheric agents and
the external environment are excluded from the warranty. Also, all failure caused by the lack of,
insufficient or incorrect maintenance performed by unskilled or unauthorized personnel or due to
unintended use or unauthorized replacements, alterations or repairs is excluded from the warranty.
V 1.1 - eng 3
