Connector - opto engineering TCZR072S Instruction Manual

Number of motors
Type
RMS winding current
Winding voltage
Steps per revolution
Environmental specifications
Operating temperature
Storage temperature
Humidity
IP rating
Installation

4.2. Connector

1
6
11

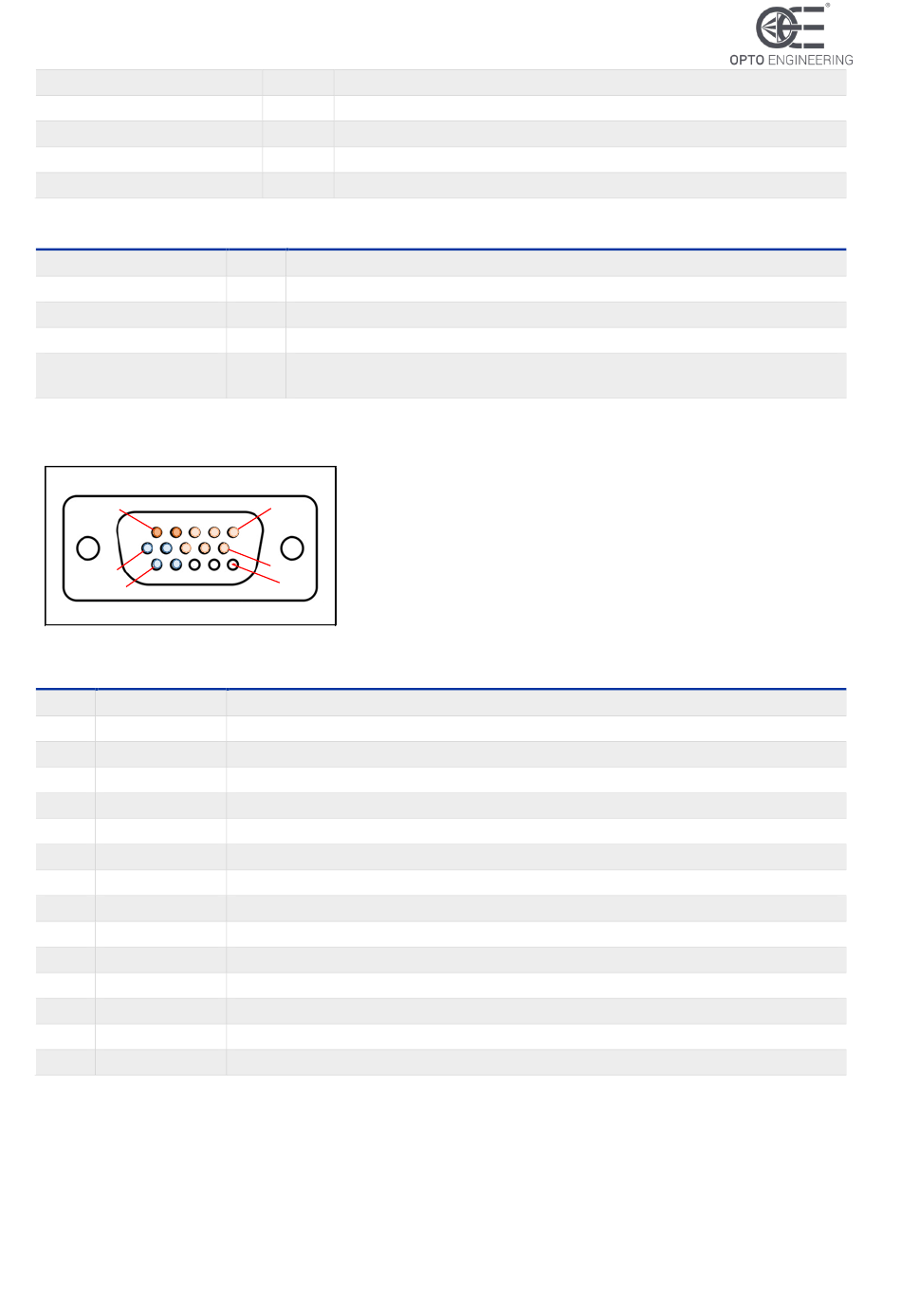

Figure 1: DB15-HD connector, male, panel view
PIN NAME
1 5V
2 GND
3 ENC_A +
4 ENC_B +
5 ENC_Z +
6 MOT_A +
7 MOT_B +
8 ENC_A -
9 ENC_B -
10 ENC_Z -
11 MOT_A -
12 MOT_B -
13 N.C.
14 N.C.
15 N.C.
V 1.1 - eng
1
Bipolar stepper
(mA) 600
(V) 24
200
(°C) 0 to 40
(°C) 0 to 50
(%) 10-85 non-condensing
-
Indoor use only. The product must be shielded from vibration sources
and impulse forces
5
10
15
DESCRIPTION
5V encoder power supply
0V encoder reference ground
Encoder quadrature signal – A +
Encoder quadrature signal – B +
Encoder quadrature signal – Z +
Motor – Phase A +
Motor – Phase B +
Encoder quadrature signal – A -
Encoder quadrature signal – B -
Encoder quadrature signal – Z -
Motor – Phase A -
Motor – Phase B -
-
-
-
5
