5. INSTRUCTIONS FOR USE WITH MTDV MOTION CONTROLLER

5.1. First use of TCZRS with MTDV motion controller

MTDV motion controller is a general purpose motion controller. If you connect it to a TCZRS zoom
lens for the first time, you need to properly configure its parameters. This operation is fast and
simple. You only need:
TCZR072S or TCZR036S zoom lens
•
MTDV1CH-22A2 motion controller
•
CBMT002 cable
•
Ethernet cable
•
24V power supply (power required ~ 40W) and 3 electrical wires
•
A browser and internet connection
•
5.1.1. Download the XML configuration file
Download the XML configuration file of your zoom lens on the web page
https://www.opto-e.com/configuration_files
by typing the serial number of the lens and the Opto Security Number and by clicking the submit
button.

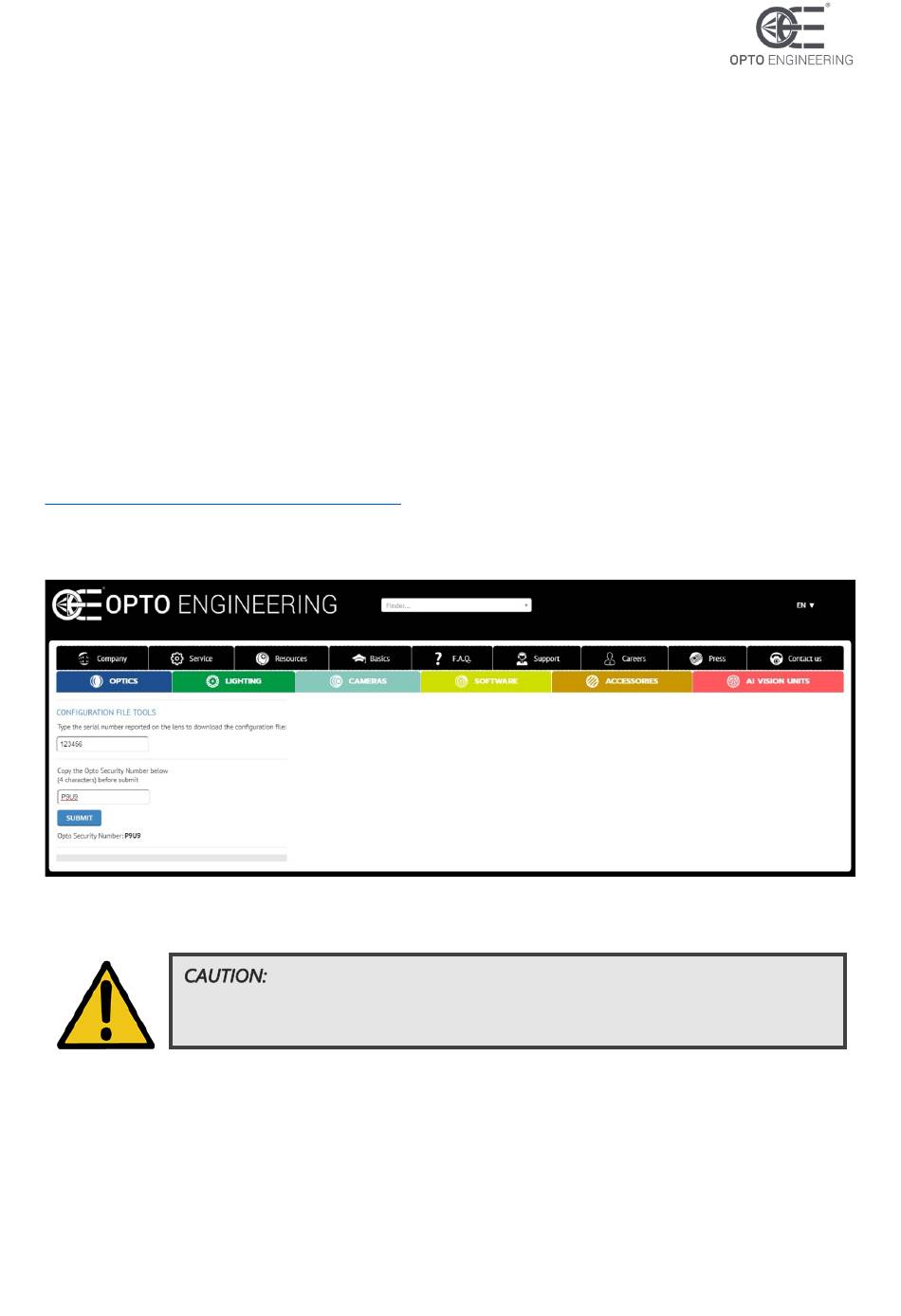

Figure 2: XML downloading page.
A not correct MTDV configuration may damage TCZRS devices.
5.1.2. Connect the MTDV motion controller
Power on the MTDV1CH-22A2 motion controller by wiring the power supply to power connector of
the device (+24V, GND and PE). Configure your network card to a static IP 192.168.1.xxx (xxx goes
from 0 to 255 and must be different from 200) with subnet mask 255.255.255.0. Connect the
network card to the RJ45 connector of the device using an Ethernet cable. Wait a few seconds.
V 1.1 - eng
DO NOT connect TCZRS at this point.
