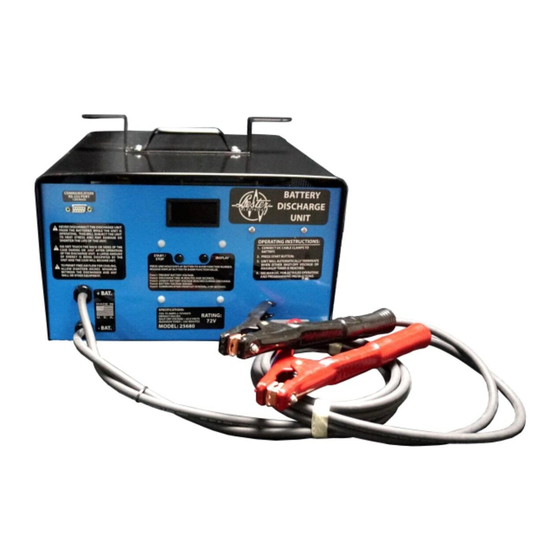

72 VOLT BATTERY DISCHARGE UNIT
PLEASE SAVE THESE IMPORTANT SAFETY AND OPERATING INSTRUCTIONS
For correct operation of the equipment, it is important to read and be familiar
with this entire manual before installing and operating the discharger.
LOOK FOR THIS SYMBOL TO POINT OUT SAFETY PRECAUTIONS.
BECOME ALERT—YOUR SAFETY IS INVOLVED. IF YOU DO NOT FOLLOW THESE
SAFETY INSTRUCTIONS, INJURY OR PROPERTY DAMAGE CAN OCCUR.
A discharge unit is used to measure the remaining
or proportional useful energy for which a battery set
is capable. Since slightly different methods are used
when determining a battery's useful energy, this
discharge
unit
has
the
programmed to use a variety of discharge times and
shut-off voltages. Other features which have been
designed in are:
• Operates from battery voltage only (no AC supply)
• Used on 72 volt battery systems only
• Electronically controlled (uses microcontroller)
• Programmable voltage or time shut-off
• LED digital display for easy reading
• Built-in thermal protection
• 8 foot DC cord with cord wrap built into handle
• Durable eighteen gauge (18 Ga.) steel case with
powder coat paint
• Large 500 amp alligator clamps for battery
connections
• Three minute test cycle feature for measuring cell
voltages
• Discharge data can be viewed or saved with a
terminal or computer
www.lesterelectrical.com
MODEL 25680
DO NOT DISCARD THIS MANUAL AFTER READING.
capability
of
being
IMPORTANT SAFETY INSTRUCTIONS
1. This manual contains important safety and
operating instructions for discharge unit Model
25680.
2. Before using discharge unit, read all instructions
and cautionary markings on electric vehicle,
battery, battery charger, and all accessories
using battery.
3. Position the discharger on a foundation of stone,
brick, concrete or grounded metal.
4. TO REDUCE THE RISK OF FIRE, DO NOT
USE THE DISCHARGER NEAR FLAMMABLE
MATERIALS OR VAPORS.
5. Do not expose discharge unit to rain or snow.
6. Use of an attachment not recommended or sold
by the discharge unit manufacturer may result in
a risk of fire, an electric shock, or injury to
persons.
7. Make sure DC cord is located so that it will not
be stepped on, tripped over, or otherwise
subjected to damage or stress.
8. Do not operate discharge unit with damaged
cord or clamp; replace it immediately.
9. To permit free air flow for cooling, allow eighteen
inches (18") minimum between the discharger
and any wall or other equipment.
1
*34748*
IT MEANS:
34748 A
Advertisement
Related Manuals for Lester 25680
Summary of Contents for Lester 25680
- Page 1 *34748* 72 VOLT BATTERY DISCHARGE UNIT MODEL 25680 PLEASE SAVE THESE IMPORTANT SAFETY AND OPERATING INSTRUCTIONS For correct operation of the equipment, it is important to read and be familiar with this entire manual before installing and operating the discharger.
- Page 2 10. Do not touch the back or sides of the case of 80°F until a shut-off voltage of 63 volts (1.75 during or just after operation of the discharge volts per cell) is reached. unit. A large amount of energy is being To test a set of batteries to the above specification, dissipated by the unit and the case will become the battery is to be first completely charged.
- Page 3 OPERATING INSTRUCTIONS START/STOP button The discharge unit is designed for long, trouble-free When the discharger unit is connected to a set of service. It features a five-digit display and two push batteries, it powers up in the off condition, with buttons which are used to interact with the user.
- Page 4 To increase the maximum timer if it has been press and release the START/STOP button. Every decreased from the default value, press and release time you press and release the START/STOP the DISPLAY button until Func is displayed. button, the shut-off voltage will decrease by 0.1 volts.
