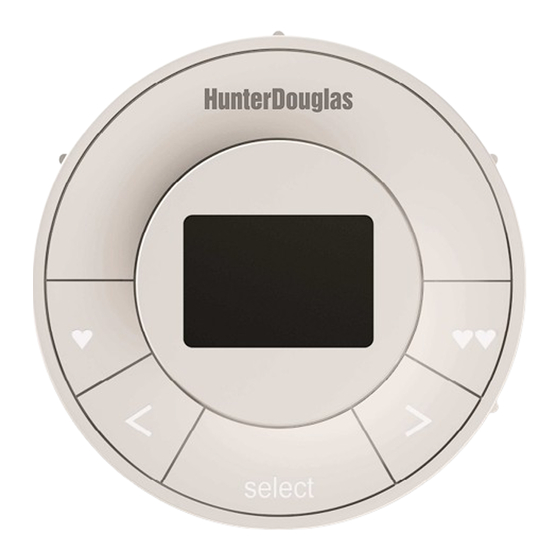

PowerView Scene Controller QuickStart Guide

Rev. 4

Buttons

– 1-press activation of favorite Scene

– 1-press activation of second favorite Scene

– activates Scene shown on display/Program mode/Program menu selections

- scroll buttons for cycling through Scene name list

Need help?

Do you have a question about the PowerView and is the answer not in the manual?

Page 1 PowerView Scene Controller QuickStart Guide Rev. 4 Buttons – 1-press activation of favorite Scene – 1-press activation of second favorite Scene – activates Scene shown on display/Program mode/Program menu selections - scroll buttons for cycling through Scene name list...
Page 2 Configuring the Scene Controller You will need the PowerView Hub to be powered up and connected to a wireless router before configuring the Scene Controller. 1. Remove battery tabs to activate controller 2. Press and hold the button for 4 seconds until the buttons begin to flash.
Page 3 Battery Replacement: 1. Remove Cover. 2. Place Batteries. Press notch to move cover slightly Press notch to move cover slightly Use two CR 2032 3V batteries. Slide one Use two CR 2032 3V batteries. Slide one clockwise to release and remove cover. clockwise to release and remove cover.
Page 4 Hunter Douglas Europe B.V. Piekstraat 2, 3071 EL Rotterdam, The Netherlands certify and declare under our sole responsibility that the PowerView ™ Scene Controller conforms with the essential requirements of the certify and declare under our sole responsibility that the conforms with the essential requirements of the EMC directive 2004/108/EC and R&TTE directive 1999/5/EC.
