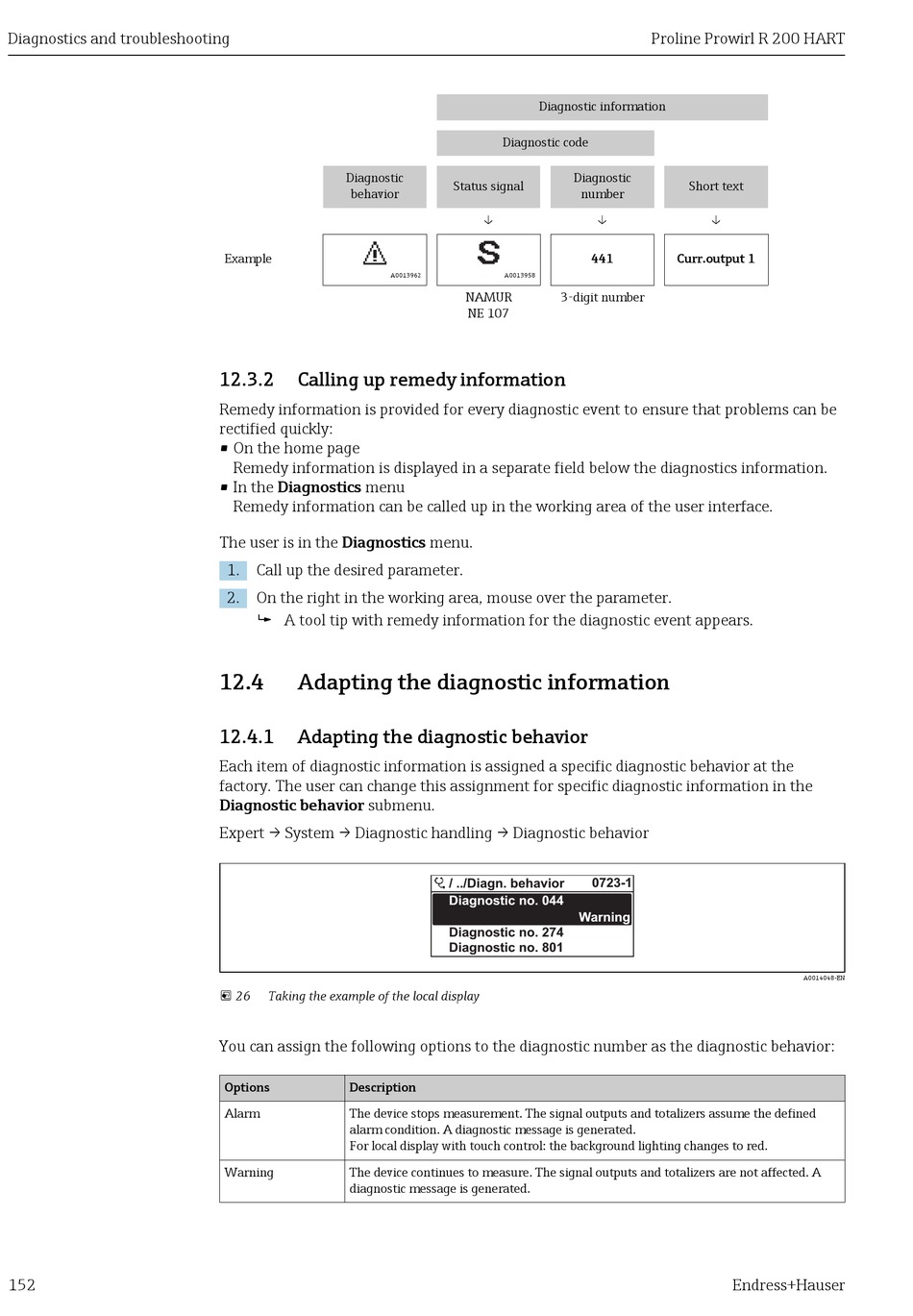

Diagnostics and troubleshooting
152
Diagnostic
behavior
Example
12.3.2

Calling up remedy information

Remedy information is provided for every diagnostic event to ensure that problems can be
rectified quickly:
• On the home page
Remedy information is displayed in a separate field below the diagnostics information.
• In the Diagnostics menu
Remedy information can be called up in the working area of the user interface.
The user is in the Diagnostics menu.
1. Call up the desired parameter.
2. On the right in the working area, mouse over the parameter.
 A tool tip with remedy information for the diagnostic event appears.
12.4

Adapting the diagnostic information

12.4.1

Adapting the diagnostic behavior

Each item of diagnostic information is assigned a specific diagnostic behavior at the
factory. The user can change this assignment for specific diagnostic information in the
Diagnostic behavior submenu.
Expert → System → Diagnostic handling → Diagnostic behavior
 26 Taking the example of the local display
You can assign the following options to the diagnostic number as the diagnostic behavior:
Options Description
Alarm The device stops measurement. The signal outputs and totalizers assume the defined
alarm condition. A diagnostic message is generated.
For local display with touch control: the background lighting changes to red.
Warning The device continues to measure. The signal outputs and totalizers are not affected. A
diagnostic message is generated.
Diagnostic information
Diagnostic code
Status signal
↓
A0013962 A0013958
NAMUR 3-digit number
NE 107
/ ../Diagn. behavior
Diagnostic no. 044
Diagnostic no. 274
Diagnostic no. 801
Proline Prowirl R 200 HART
Diagnostic
Short text
number
↓ ↓
441 Curr.output 1
0723-1
Warning
Endress+Hauser
A0014048-EN
