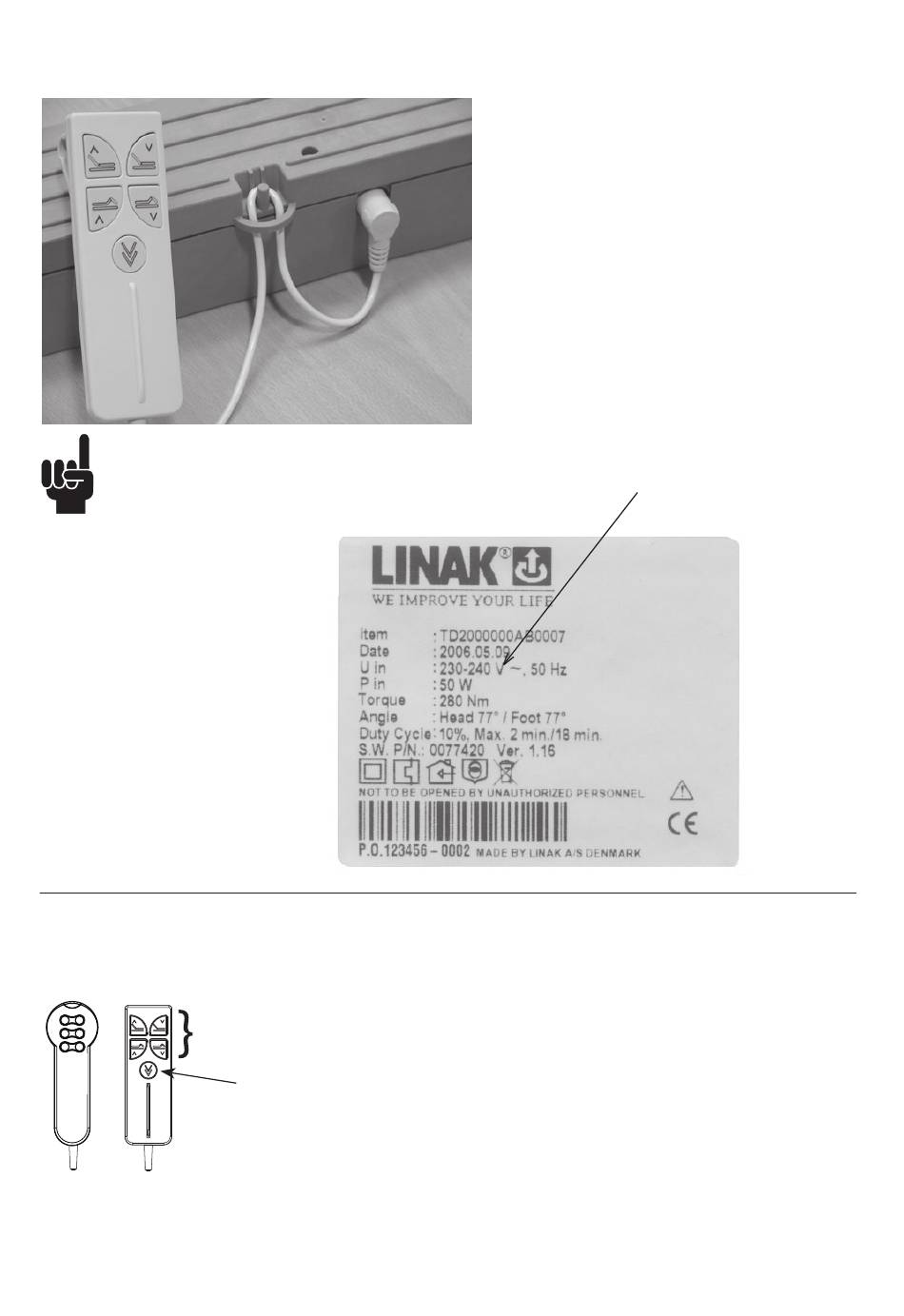

Mounting the handset and connection to the mains

Please note that the TD2 must only be connected to the voltage stated on the label.
The HB10/HB20
Use of the handsets
Up/down operational (1-2 channels)
Common operation up/down (option)
The up/down operation is only activated when holding the button down.
It is recommended to use the strain relief,
otherwise the DIN-plug and the PCB may be
damaged when overstraining the cable.
Page 10 of 20
