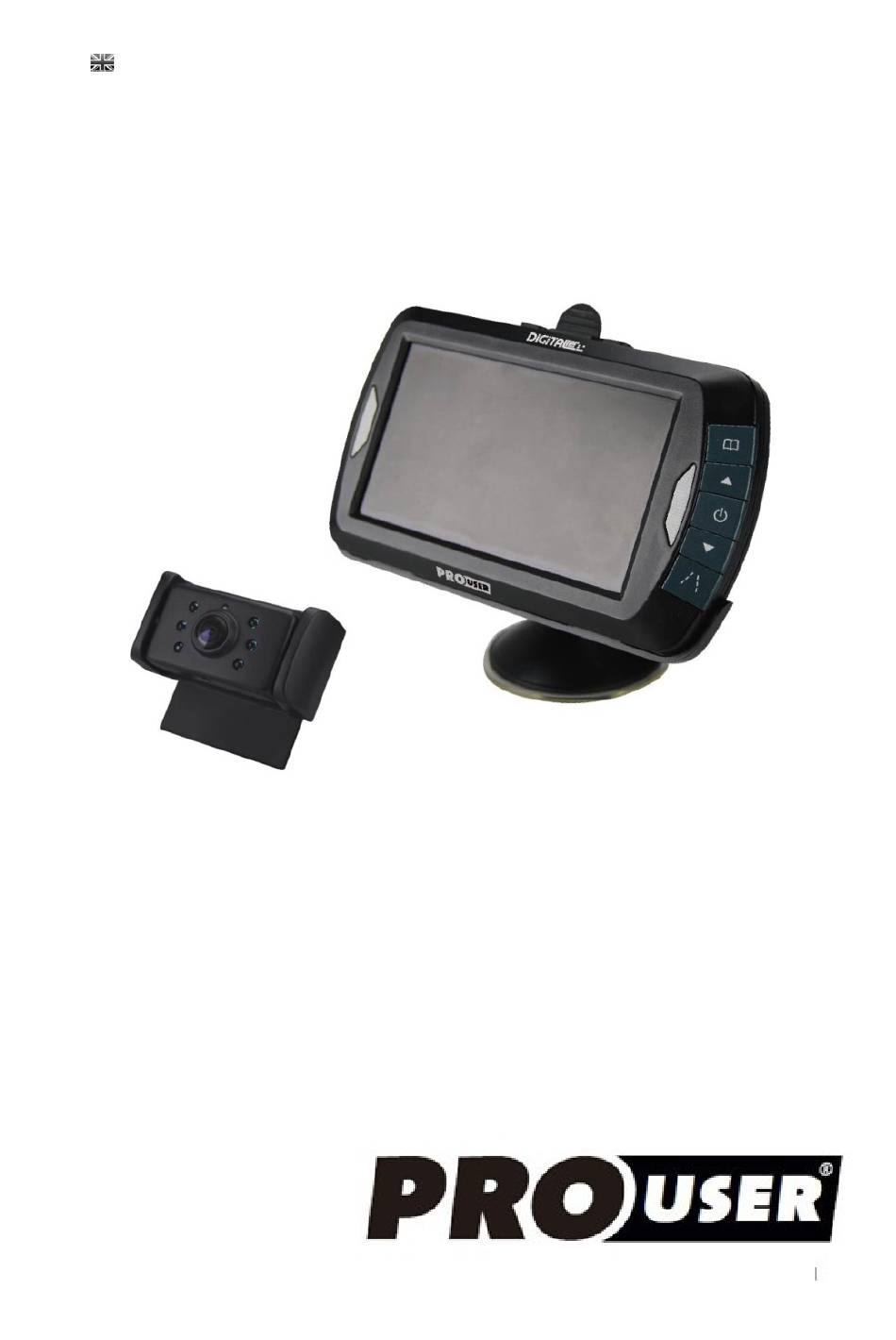

  • Page 1 WIRELESS BACK-UP CAMERA SYSTEM with 12cm / 4.3” monitor PKC0BU4 Tx...
  • Page 2 INTRODUCTION The Pro-User PKC0BU4 Tx is member of the family of advanced car back-up systems manufactured by Pro User International Ltd. The Pro-User Digital Back-up Camera and Monitor with built in transmitter box, when used as described, will improve your ability to see behind your car, camper, trailer, or mini-van.
  • Page 3 INSTALLATION These instructions do not apply to all vehicles. They are only meant as a general guide due to the number of different makes & models. For vehicle specific questions contact your vehicle’s manufacturer. Camera installation There are several ways to mount the camera on the back of your car. But the most convenient is to mount it near the license plate of the car.
  • Page 4 3. Mount the license plate on the license plate bracket. 4. Choose a routing path for the camera’s power cable through the vehicle’s body to the reverse light circuit. If in doubt, seek professional installation assistance. 5. Some vehicles may have a hole available to pass the wire through, such as where the license plate light is mounted, or you can drill a hole close to where the power cable is attached to the camera.
  • Page 5 13. Next splice the black wire of the camera power cable to the reverse light’s negative (-) wire or ground. 14. Replace the reverse light bulb, and then re-install the light socket. Secure all the wires with cable ties or electrical tape. 15.
  • Page 6 OPERATION Please always pair the monitor and camera during the 1 operation, operation details please refer below step. The monitor will automatically turn on when the vehicle is in reverse gear. There are 5 control buttons available for users to have their controls: Menu button Power button Guideline button...
  • Page 7 To change the orientation of the screen image, press the menu button until direction is selected. By pressing the button repeatedly, different screen orientations will be available. These different views allow you to mount the camera and monitor in any position with keeping the right picture on the monitor.
