12.3.1 Bead breaking tool with double joint
(on demand)

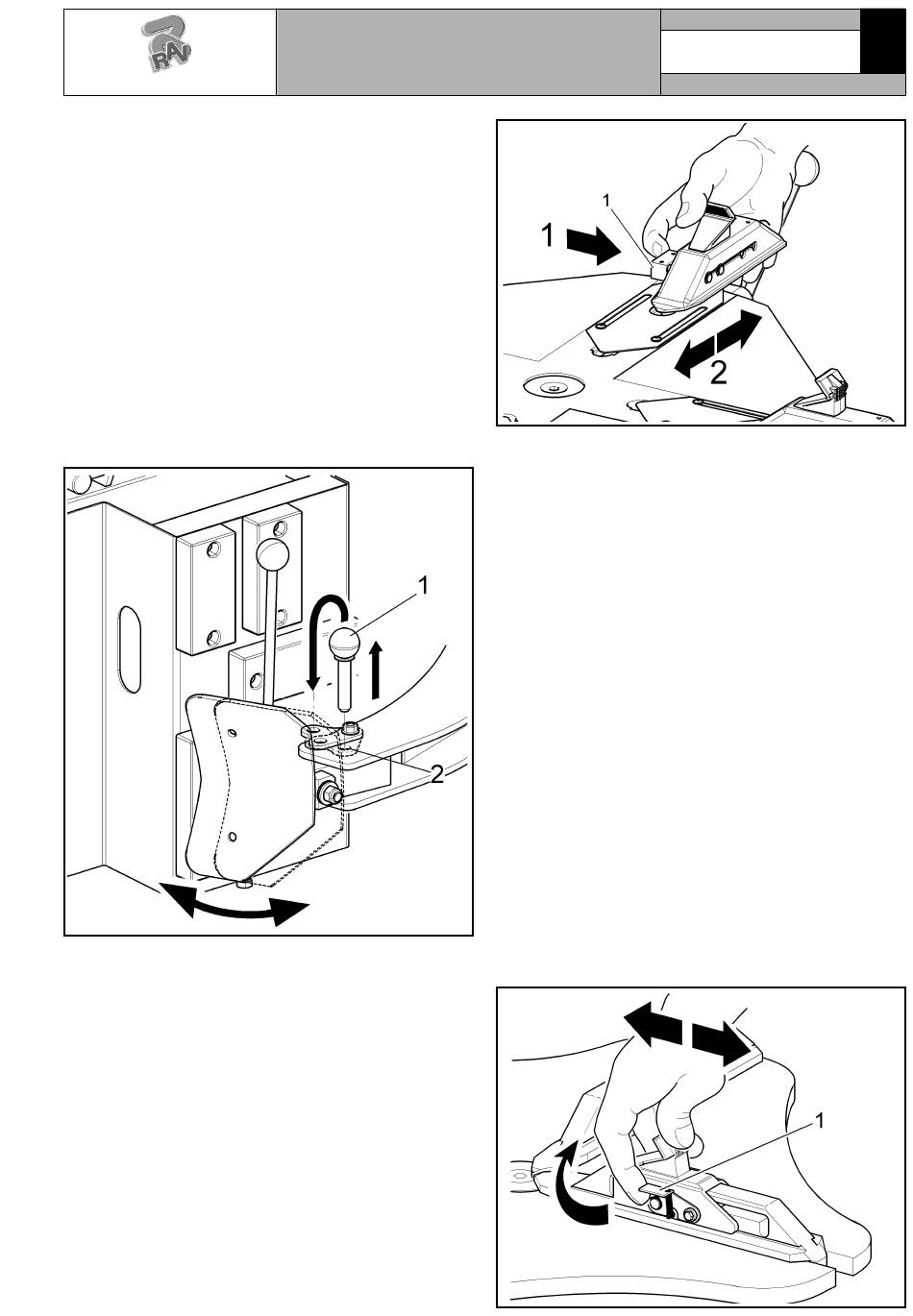

The bead breaking tool is equipped with a double joint
(Fig. 19) that allows, during the bead breaking phase,
to optimize the relative position between the vane and
the bead of the tyre inserting the joint between the vane
and the edge of the rim.
If the machine is utilized with rims that have protected
edges or depressed tyres and/or tyres with heavy thick-
ness, it's recommended to place the vane-joint so that
the hole (Fig. 19 pos. 2) can be utilized.
To change the position of the vane on the joint extract
the pin (Fig. 19 pos. 1) from the hole in which it is
inserted, turn the vane until the required hole corre-
sponds to the hole placed on the joint, then insert the
pin (Fig. 19 pos. 1) again into its new seat.
12.4 Clamping the wheel on 18" - 20" - 22"
- 24" - 26" - 28" chuck
The wheels must be clamped both from the inside and
from the outside compared to the edge of the rim.
In order to carry out the clamping of the wheel from the
inside: place the 4 self-centering jaws by using the ap-
propriate levers (Fig. 20 pos. 1) in correspondence to
the required clamping range.
• Close the turntable clamps, if open, by operating the
relative pedal.
• Place the wheel on the turntable.
• Press the pedal to open the clamps, until the wheel is
completely locked in place.
• Check that the rim is clamped and centred correctly
to ensure that the rim will not slip during the opera-
tions which follow.
INSTRUCTION, USE AND
MAINTENANCE MANUAL
In order to carry out the clamping of the wheel from the
outside: place the 4 self-centering jaws by using the ap-
propriate levers (Fig. 20 pos. 1) in correspondence to
Fig. 19
the required clamping range.
Open the self-centering jaws and place them close to the
diameter of the rim to be clamped.
• Place the wheel on the turntable.
• Close the clamps, taking care that they engage the edge

12.5 Clamping the wheel on 30" chuck

The wheels must be clamped both from the inside and
from the outside compared to the edge of the rim.
In order to carry out the clamping of the wheel from the
inside: place the 4 self-centering jaws by using the
appropriate levers (Fig. 21 pos. 1) in correspondence
to the required clamping range.
• Close the turntable clamps, if open, by operating the
• Place the wheel on the turntable.
• Press the pedal to open the clamps, until the wheel is
• Check that the rim is clamped and centred correctly
Fig. 20
of the rim.
relative pedal.
completely locked in place.
to ensure that the rim will not slip during the
operations which follow.
Fig. 21
