G8641 - G8645

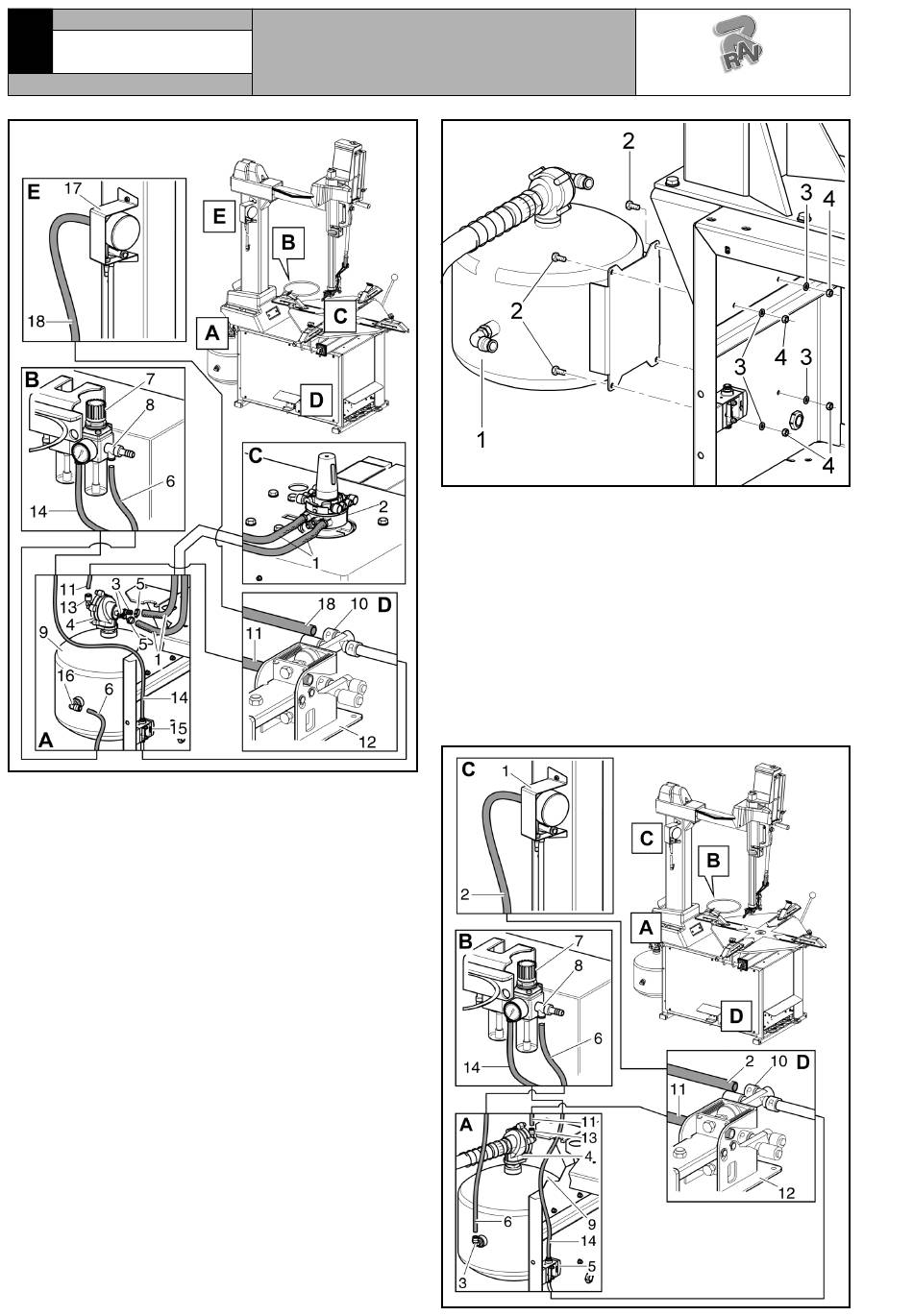

Fig. 11
Only for IT version
1. Mount the tank (Fig. 12 pos. 1) on the base lower
part, as shown in picture 12, using the screws (Fig.
12 pos. 2) (tightening torque approx. 8 N·m), the
washers (Fig. 12 pos. 3) and the nuts (Fig. 12 pos.
4).
INSTRUCTION, USE AND
MAINTENANCE MANUAL
Fig. 12
2. Connect the pipe (Fig. 13 pos. 14) from the greaser
reduction gear filter (Fig. 13 pos. 7)(air not lubri-
cated) to the compensation balancing valve (Fig. 13
pos. 5).
3. Connect the pipe (Fig. 13 pos. 11) from the pedal
board lower valve (Fig. 13 pos. 12) to the blow valve
(Fig. 13 pos. 4) union (Fig. 13 pos. 13).
4. Connect the pipe (Fig. 13 pos. 6) to the coupling (Fig.
13 pos. 3) placed on the tank (Fig. 13 pos. 9).
5. Connect the pipe (Fig. 13 pos. 2) from the blowing
unit (Fig. 13 pos. 1) to the pedal board (Fig. 13 pos.
12) upper union (Fig. 13 pos. 10).
RAVAGLIOLI S.p.A.
Fig. 13
