1 Camera Overview

VX-4V-B-RI Camera Description

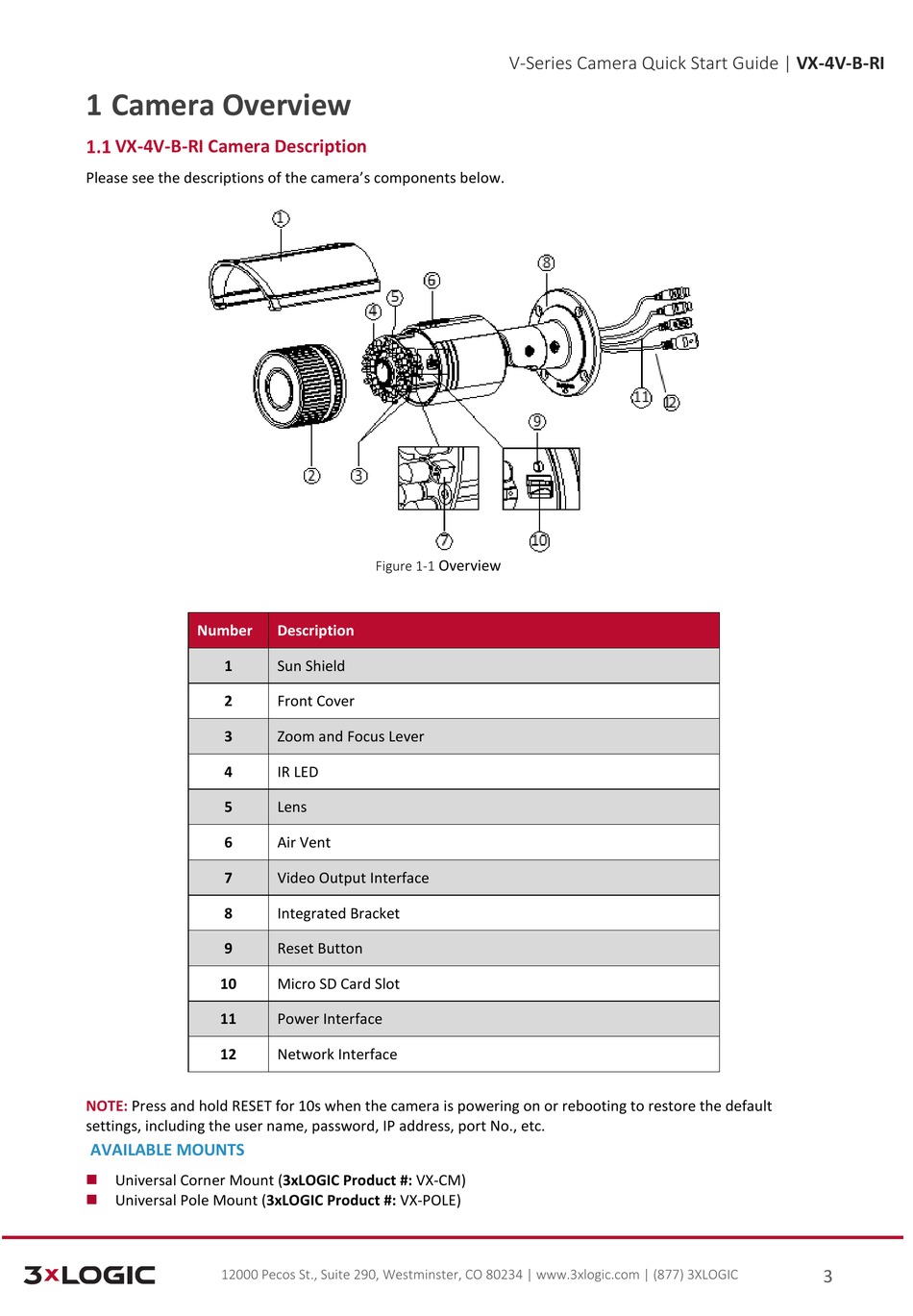

Please see the descriptions of the camera's components below.
Number
1
2
3
4
5
6
7
8
9
10
11
12
NOTE: Press and hold RESET for 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.

AVAILABLE MOUNTS

Universal Corner Mount (3xLOGIC Product #: VX-CM)

Universal Pole Mount (3xLOGIC Product #: VX-POLE)

12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
Overview
Figure 1-1
Description
Sun Shield
Front Cover
Zoom and Focus Lever
IR LED
Lens
Air Vent
Video Output Interface
Integrated Bracket
Reset Button
Micro SD Card Slot
Power Interface
Network Interface
