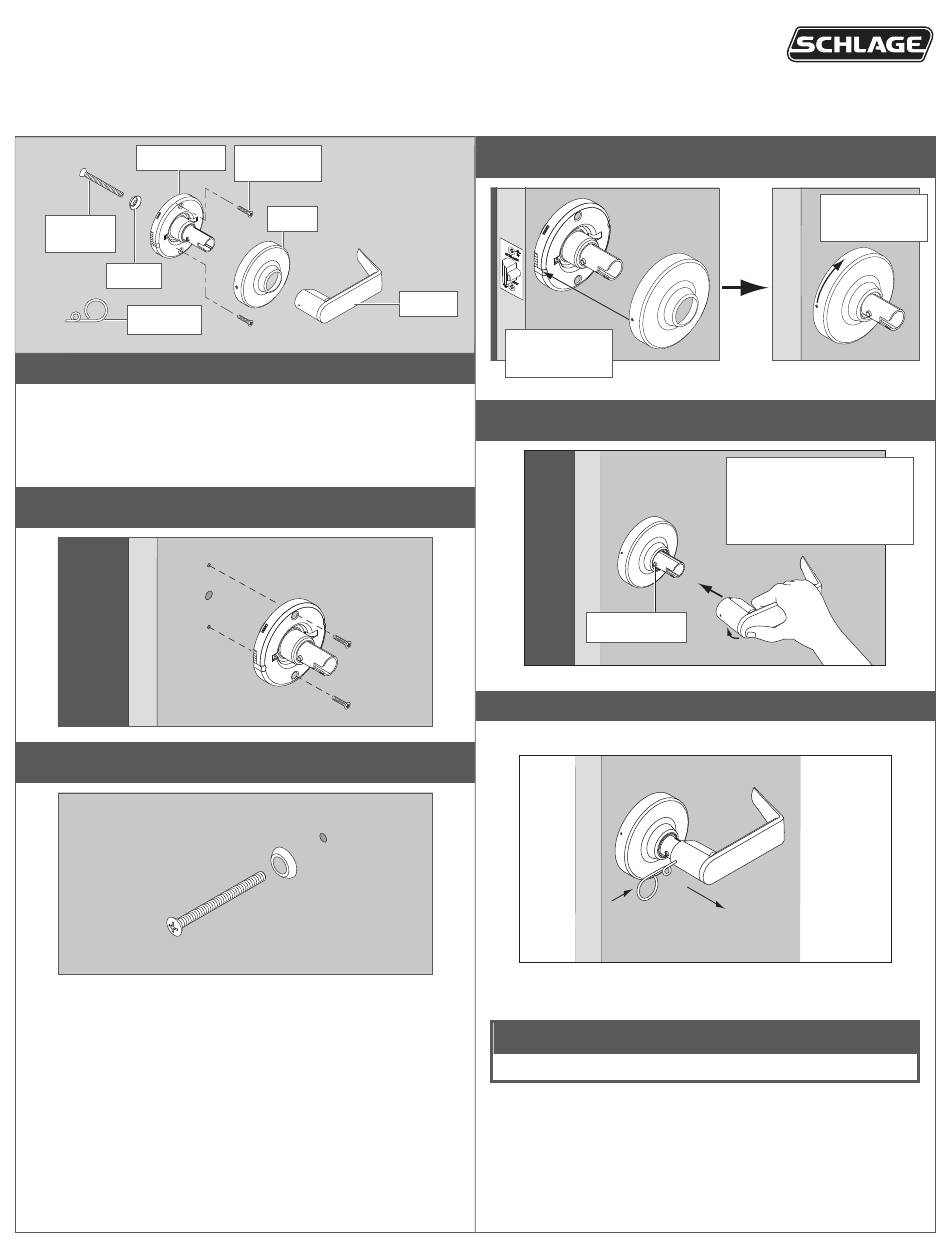

*P515-169*
P515-169
Spring Cage
Mounting
Screw
Washer
Pin Wrench
Door Preparation
For door preparation use the template included in the package
with the lock. For additional information, refer to the Schlage
website:
www.allegion.com/us
1
Install spring cage.
2
Install mounting screw and washer.
ND170 Dummy Lock
Spring Cage
Screws (2)
Rose
Lever
3
Install rose.
Align dimple
and groove.
4
Install lever.
Lever catch
To remove lever:
Insert pin wrench and push against lever catch. Pull off the lever.
Customer Service
1-877-671-7011
Installation Instructions
Rotate rose
until it stops.
Rotate lever slightly
toward lever catch and
firmly push on until lever
catch engages.
www.allegion.com/us
