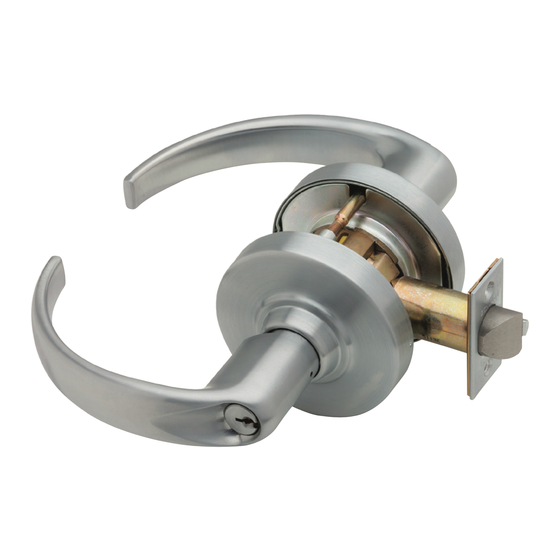

Summary of Contents for Schlage ND Series

  • Page 1 ND-Series Service manual...

  • Page 3: Table Of Contents

    Contents Introduction 43 Trim assemblies Lock assembly drawing index Passage latch Exit lock Changes and additions Exit lock request-to-exit Exit lock—electrically locked (fail safe) Lock assembly drawing index Exit lock— electrically locked (fail safe) request-to-exit Exit lock and storeroom lock— electrically unlocked (fail Chassis secure) Passage latch...
  • Page 4 Spring cage and tailpiece for competitor cylinder options Roses Cylinders Latches Installation tools and kits Strikes Screws, screw packs and special parts 94 Finishes Finish codes and descriptions 94 Ordering procedures 95 Limited warranty iv • Schlage • ND-Series service manual...

  • Page 5: Introduction

    This manual contains a complete listing of ND-Series (Grade 1) cylindrical lock parts and assemblies manufactured by the Schlage Lock Company. This edition lists components of ND-Series locks manufactured after November, 2003. This manual provides exploded views of each lock chassis and trim assembly with an accompanying chart to identify parts for replacement purposes, along with lock trim ordering procedures, general cylinder information, and all auxiliary components of the ND-Series cylindrical locks.

  • Page 6: Lock Assembly Drawing Index

    † Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only. 6 • Schlage • ND-Series service manual...
  • Page 7 † Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only. Schlage • ND-Series service manual • 7...
  • Page 8 † Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only. 8 • Schlage • ND-Series service manual...
  • Page 9 † Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only. Schlage • ND-Series service manual • 9...
  • Page 10 † Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only. 10 • Schlage • ND-Series service manual...

  • Page 11: Chassis

    Chassis Passage latch Exit lock/storeroom lock Exit lock/storeroom lock with request-to-exit Exit lock and storeroom lock— Electrically locked (fail safe) Exit lock and storeroom lock— Electrically locked (fail safe) with request-to-exit Exit lock and storeroom lock— Electrically unlocked (fail secure) Exit lock and storeroom lock—...

  • Page 12: Passage Latch

    Slide clip N523-025 Chassis screw L583-454 Adjustment plate N523-054 Outside housing 24088544 Spindle N523-056 Inside hub 24085037 Gauge insert 23988066 Slide N523-149 Insert, inside hub N523-160* * Not sold separately as a part. 12 • Schlage • ND-Series service manual...

  • Page 13: Exit Lock/Storeroom Lock

    Slide clip N523-025 Keycam assembly N123-008 Adjustment plate N523-054 Spindle N523-013 Spindle N523-056 Outside housing 24088544 Gauge insert 23988066 Inside hub 24085037 Insert, inside hub N523-160* * Not sold separately as a part. Schlage • ND-Series service manual • 13...

  • Page 14: Exit Lock/Storeroom Lock With Request-To-Exit

    RX harness screw N523-135 Outside housing 24088544 RX inside spindle N523-138 Inside hub, electrified and RX 24085078 Gauge insert 23988066 Slide N523-149 Insert, inside hub N523-160 * * Not sold separately as a part. 14 • Schlage • ND-Series service manual...

  • Page 15: Exit Lock And Storeroom Lock- Electrically Locked (Fail Safe)

    24085078 Adjustment plate N523-054 Outside electrified spindle N523-019 Inside electrified spindle N523-057 Slide N523-149 Gauge insert 23988066 Slide clip N523-025 Insert, inside hub N523-160* Solenoid—EL N523-027 * Not sold separately as a part. Schlage • ND-Series service manual • 15...

  • Page 16: Exit Lock And Storeroom Lock- Electrically Locked (Fail Safe) With Request-To-Exit

    Outside electrifed spindle N523-019 RX harness N523-134 Slide N523-149 RX harness screw N523-135 Slide clip N523-025 Gauge insert 23988066 Solenoid—EL N523-027 Insert, inside hub N523-160 * Clip N523-028 * Not sold separately as a part. 16 • Schlage • ND-Series service manual...

  • Page 17: Exit Lock And Storeroom Lock- Electrically Unlocked

    24085078 Adjustment plate N523-054 Outside electrified spindle N523-019 Inside electrified spindle N523-057 Slide N523-149 Gauge insert 23988066 Slide clip N523-025 Insert, inside hub N523-160* Solenoid—EU N523-026 * Not sold separately as a part. Schlage • ND-Series service manual • 17...

  • Page 18: Exit Lock And Storeroom Lock- Electrically Unlocked (Fail Secure) With Request-To-Exit

    Outside electrifed spindle N523-019 Harness, RX N523-134 Slide N523-149 Screw, harness, RX N523-135 Slide clip N523-025 Gauge insert 23988066 Solenoid—EU N523-026 Insert, inside hub N523-160* Clip N523-028 * Not sold separately as a part. 18 • Schlage • ND-Series service manual...

  • Page 19: Single Dummy Trim

    Chassis Single dummy trim ND170 Description Part number Description Part number Spindle pin C604-340 Dummy insert N523-069 Spring cage assembly N123-019 For mounting two ND170 as double trim, see page 51. Schlage • ND-Series service manual • 19...

  • Page 20: Exit Lock With Blank Plate

    Slide clip N523-025 Chassis screw L583-454 Adjustment plate N523-054 Outside housing 24088544 Spindle N523-056 Inside hub 24085037 Gauge insert 23988066 Slide N523-149 Insert, inside hub N523-160 * * Not sold separately as a part. 20 • Schlage • ND-Series service manual...

  • Page 21: Special- Classroom Exit Lock

    Chassis screw L583-454 Slide clip N523-025 Keycam assembly N123-010 Adjustment plate N523-054 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160* Inside hub 24085060 * Not sold separately as a part. Schlage • ND-Series service manual • 21...

  • Page 22: Special- Storeroom Exit Lock

    Chassis screw L583-454 Slide clip N523-025 Keycam assembly N123-008 Adjustment plate N523-054 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160* Inside hub 24085060 * Not sold separately as a part. 22 • Schlage • ND-Series service manual...

  • Page 23: Patio, Bath/Bedroom Privacy And Hospital Privacy Lock

    Slide clip N523-025 Chassis screw L583-454 Adjustment plate N523-054 Keycam assembly N123-045 Spindle N523-056 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160 * * Not sold separately as a part. Schlage • ND-Series service manual • 23...

  • Page 24: Entrance/Office And Entrance Lock

    Slide clip N523-025 Chassis screw L583-454 Adjustment plate N523-054 Keycam assembly N123-007 Spindle N523-056 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160* * Not sold separately as a part. 24 • Schlage • ND-Series service manual...

  • Page 25: Vestibule Lock

    Spindle N523-013 Plunger N523-064 Outside housing 24088544 Cam pin N523-065 Inside hub 24085037 N523-066 Slide N523-149 Gauge insert 23988066 Slide clip N523-025 Insert, inside hub N523-160* * Not sold separately as a part. Schlage • ND-Series service manual • 25...

  • Page 26: Store Lock

    Slide clip N523-025 Keycam assembly N123-009 Adjustment plate N523-054 Spindle N523-013 Plunger bar N523-067 Outside housing 24088544 Gauge insert 23988066 Inside hub 24085060 Insert, inside hub N523-160* * Not sold separately as a part. 26 • Schlage • ND-Series service manual...

  • Page 27: Classroom Lock

    Slide clip N523-025 Keycam assembly N123-010 Adjustment plate N523-054 Spindle N523-013 Spindle N523-056 Outside housing 24088544 Gauge insert 23988066 Inside hub 24085037 Insert, inside hub N523-160* * Not sold separately as a part. Schlage • ND-Series service manual • 27...

  • Page 28: Special- Classroom By Storeroom Lock

    Slide N523-149 Keycam assembly N123-008 Slide clip N523-025 Keycam assembly N123-010 Adjustment plate N523-054 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160* * Not sold separately as a part. 28 • Schlage • ND-Series service manual...

  • Page 29: Special- Communicating Lock

    Chassis screw L583-454 Slide clip N523-025 Keycam assembly N123-010 Adjustment plate N523-054 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160* Inside hub 24085060 * Not sold separately as a part. Schlage • ND-Series service manual • 29...

  • Page 30: Special- Communicating Lock With Vandlgard

    L583-454 Slide clip N523-025 Keycam assembly N123-012 Adjustment plate N523-054 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160 * Inside hub 24085060 * Not sold separately as a part. 30 • Schlage • ND-Series service manual...

  • Page 31: Corridor Lock

    Slide clip N523-025 Chassis screw L583-454 Adjustment plate N523-054 Keycam assembly N123-010 Spindle N523-056 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160 * * Not sold separately as a part. Schlage • ND-Series service manual • 31...

  • Page 32: Classroom Security Lock

    Inside cam N123-059 Plunger sleeve N523-063 Spindle N523-013 Plunger bar N523-067 Outside housing 24088544 Gauge insert 23988066 Inside hub 24085037 Insert, inside hub N523-160 * Slide N523-149 * Not sold separately as a part. 32 • Schlage • ND-Series service manual...

  • Page 33: Institution Lock

    L583-454 Slide clip N523-025 Keycam assembly N123-008 Adjustment plate N523-054 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160 * Inside hub 24085060 * Not sold separately as a part. Schlage • ND-Series service manual • 33...

  • Page 34: Faculty Restroom Lock

    Slide clip N523-025 Chassis screw L583-454 Adjustment plate N523-054 Keycam assembly N123-055 Spindle N523-056 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160 * * Not sold separately as a part. 34 • Schlage • ND-Series service manual...

  • Page 35: Entrance/Office And Entrance Lock With Vandlgard

    Slide clip N523-025 Chassis screw L583-454 Adjustment plate N523-054 Keycam assembly N123-011 Spindle N523-056 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160 * * Not sold separately as a part. Schlage • ND-Series service manual • 35...

  • Page 36: Vestibule Lock With Vandlgard

    N523-013 Plunger N523-064 Outside housing 24088544 Cam pin N523-065 Inside hub 24085037 N523-066 Slide N523-149 Gauge insert 23988066 Slide clip N523-025 Insert, inside hub N523-160 * * Not sold separately as a part. 36 • Schlage • ND-Series service manual...

  • Page 37: Classroom Lock With Vandlgard

    Slide clip N523-025 Keycam assembly N123-012 Adjustment plate N523-054 Spindle N523-013 Spindle N523-056 Outside housing 24088544 Gauge insert 23988066 Inside hub 24085037 Insert, inside hub N523-160 * * Not sold separately as a part. Schlage • ND-Series service manual • 37...

  • Page 38: Classroom Security Lock With Vandlgard

    Inside cam N123-059 Plunger sleeve N523-063 Spindle N523-013 Plunger bar N523-067 Outside housing 24088544 Gauge insert 23988066 Inside hub 24085037 Insert, inside hub N523-160 * Slide N523-149 * Not sold separately as a part. 38 • Schlage • ND-Series service manual...

  • Page 39: Storeroom Lock With Vandlgard

    Slide clip N523-025 Keycam assembly N123-013 Adjustment plate N523-054 Spindle N523-013 Spindle N523-056 Outside housing 24088544 Gauge insert 23988066 Inside hub 24085037 Insert, inside hub N523-160 * * Not sold separately as a part. Schlage • ND-Series service manual • 39...

  • Page 40: Electrically Locked

    Adjustment plate N523-054 Outside electrified spindle N523-019 Inside electrified strike N523-057 Slide N523-149 Gauge insert 23988066 Slide clip N523-025 Insert, inside hub N523-160 * Solenoid–EL N523-027 * Not sold separately as a part. 40 • Schlage • ND-Series service manual...
  • Page 41 Adjustment plate N523-054 Outside electrified spindle N523-019 Inside electrified spindle N523-057 Slide N523-149 Gauge insert 23988066 Slide clip N523-025 Insert, inside hub N523-160 * Solenoid—EU N523-026 * Not sold separately as a part. Schlage • ND-Series service manual • 41...

  • Page 42: Corridor Lock With Vandlgard

    Slide clip N523-025 Chassis screw L583-454 Adjustment plate N523-054 Keycam assembly N123-097 Spindle N523-056 Spindle N523-013 Gauge insert 23988066 Outside housing 24088544 Insert, inside hub N523-160 * * Not sold separately as a part. 42 • Schlage • ND-Series service manual...

  • Page 43: Trim Assemblies

    Trim assemblies 44 Passage latch 45 Exit lock 46 Exit lock request-to-exit Exit lock—electrically locked (fail safe) 48 Exit lock— electrically locked (fail safe) request-to-exit 49 Exit lock and storeroom lock— electrically unlocked (fail secure) Exit lock and storeroom lock—electrically unlocked (fail secure) request-to-exit Single dummy trim Exit lock with blank plate...

  • Page 44: Passage Latch

    Latch screw C603-897 Outside spring cage—passage N123-043 Mounting screw N523-021 Inside spring cage—standard N123-032 Strike screw C603-256 Chassis 24088254* Soft durometer spacer 24055246 Anti-rotation plate N523-055 Chassis part number is for reference only. 44 • Schlage • ND-Series service manual...

  • Page 45: Exit Lock

    Outside spring cage—passage N123-022 Strike screw C603-256 Inside spring cage—standard N123-032 Spring C503-331 Chassis 24088262* Catch stop N523-041 Anti-rotation plate N523-055 Soft durometer spacer 24055246 Springlatch 13-048 Chassis part number is for reference only. Schlage • ND-Series service manual • 45...

  • Page 46: Exit Lock Request-To-Exit

    Outside spring cage—passage N123-022 Strike screw C603-256 Inside spring cage—standard N123-032 Spring C503-331 Chassis 24088437* Catch stop N523-041 Anti-rotation plate N523-131 Soft durometer spacer 24055246 Springlatch 13-048 Chassis part number is for reference only. 46 • Schlage • ND-Series service manual...

  • Page 47: Exit Lock-Electrically Locked (Fail Safe)

    Inside spring cage—standard N123-032 Spring C503-331 Chassis 63-106* Catch stop N523-041 Anti-rotation plate N523-055 Ac rectifier circuit C303-439 Electrified latch Not sold separately as a part. Chassis part number is for reference only. Schlage • ND-Series service manual • 47...

  • Page 48: Exit Lock- Electrically Locked (Fail Safe) Request-To-Exit

    C503-331 Chassis 63-215* Catch stop N523-041 Anti-rotation plate N523-131 Ac rectifier circuit C303-439 Electrified latch Soft durometer spacer 24055246 ** Not sold separately as a part. Chassis part number is for reference only. 48 • Schlage • ND-Series service manual...

  • Page 49: Exit Lock And Storeroom Lock- Electrically Unlocked

    C503-331 Chassis 63-105* Catch stop N523-041 Anti-rotation plate N523-055 Ac rectifier circuit C303-439 Electrified latch Soft durometer spacer 24055246 ** Not sold separately as a part. Chassis part number is for reference only. Schlage • ND-Series service manual • 49...

  • Page 50: Exit Lock And Storeroom Lock-Electrically Unlocked (Fail Secure) Request-To-Exit

    C503-331 Chassis 63-216* Catch stop N523-041 Anti-rotation plate N523-131 Ac rectifier circuit C303-439 Electrified latch Soft durometer spacer 24055246 ** Not sold separately as a part. Chassis part number is for reference only. 50 • Schlage • ND-Series service manual...

  • Page 51: Single Dummy Trim

    Letter Description Part number Inside lever—closed 03-030 Chassis 63-104* Rose 03-042 Dummy through bolt N523-092 Dummy mounting screws L583-133 Soft durometer spacer 24055246 Washer A501-171 * Chassis part number is for reference only. Schlage • ND-Series service manual • 51...

  • Page 52: Exit Lock With Blank Plate

    Latch screw C603-897 Inside spring cage—standard N123-032 Mounting screw N523-021 Chassis 24088296* Strike screw C603-256 Anti-rotation plate N523-055 Blank plate N523-002 Deadlatch 13-047 Soft durometer spacer 24055246 Chassis part number is for reference only. 52 • Schlage • ND-Series service manual...

  • Page 53: Special-Classroom Exit Lock

    Blank plate N523-002 Deadlatch 13-047 Soft durometer spacer 24055246 Strike 10-025 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 53...

  • Page 54: Special-Storeroom Exit Lock

    Deadlatch 13-047 Blank plate N523-002 Strike 10-025 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. 54 • Schlage • ND-Series service manual...

  • Page 55: Special-Patio Lock

    Inside spring cage—standard N123-032 Push button N523-000 Chassis 24088304* Spring C503-331 Anti-rotation plate N523-055 Catch stop N523-041 Deadlatch 13-047 Soft durometer spacer 24055246 Strike 10-025 * Chassis part number is for reference only. Schlage • ND-Series service manual • 55...

  • Page 56: Bath/Bedroom Privacy Lock

    Inside spring cage—standard N123-032 Push button N523-000 Chassis 24088304* Emergency cylinder N523-020 Anti-rotation plate N523-055 Emergency button and plunger N123-034 Springlatch 13-048 Soft durometer spacer 24055246 Strike 10-025 Chassis part number is for reference only. 56 • Schlage • ND-Series service manual...

  • Page 57: Hospital Privacy Lock

    N123-032 Push button N523-000 Chassis 24088304* Emergency cylinder N523-020 Anti-rotation plate N523-055 Emergency turn button and plunger N123-035 Springlatch 13-048 Soft durometer spacer 24055246 Strike 10-025 Chassis part number is for reference only. Schlage • ND-Series service manual • 57...

  • Page 58: Entrance/Office Lock

    Anti-rotation plate N523-055 Push button N523-000 Deadlatch 13-047 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. 58 • Schlage • ND-Series service manual...

  • Page 59: Entrance Lock

    Push and Turn Button N523-001 Deadlatch 13-047 Soft Durometer Spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 59...

  • Page 60: Vestibule Lock

    Chassis 24088320* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. 60 • Schlage • ND-Series service manual...

  • Page 61: Nd60 With Closed Outside Lever: Special

    Catch stop N523-041 Anti-rotation plate N523-055 Soft durometer spacer 24055246 Strike 10-025 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 61...

  • Page 62: Store Lock

    Chassis 24088338* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. 62 • Schlage • ND-Series service manual...

  • Page 63: Classroom Lock

    Chassis 24088346* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 63...

  • Page 64: Special-Classroom By Storeroom Lock

    Chassis 24088239* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. 64 • Schlage • ND-Series service manual...

  • Page 65: Special-Communicating Lock

    Chassis 24088197* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 65...

  • Page 66: Special-Communicating Lock With Vandlgard

    Chassis 24088205* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. 66 • Schlage • ND-Series service manual...

  • Page 67: Corridor Lock

    Anti-rotation plate N523-055 Push button N523-000 Deadlatch 13-047 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 67...

  • Page 68: Classroom Security Lock

    Chassis 24088163* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. 68 • Schlage • ND-Series service manual...

  • Page 69: Storeroom Lock

    Chassis 24088262* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 69...

  • Page 70: Storeroom Lock With Request-To-Exit

    Chassis 24088437* Cylinder—6-pin 23-065 Anti-rotation plate N523-131 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 86. Chassis part number is for reference only. 70 • Schlage • ND-Series service manual...

  • Page 71: Storeroom Lock- Electrically Locked (Fail Safe)

    Soft durometer spacer 24055246 Electrified latch † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Not sold separately as a part. Chassis part number is for reference only. Schlage • ND-Series service manual • 71...

  • Page 72: Storeroom Lock-Electrically Locked (Fail Safe) With Request-To-Exit

    Soft Durometer Spacer 24055246 Electrified Latch † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Not sold separately as a part. Chassis part number is for reference only. 72 • Schlage • ND-Series service manual...

  • Page 73: Storeroom Lock-Electrically Unlocked (Fail Secure)

    Soft durometer spacer 24055246 Electrified latch † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Not sold separately as a part. Chassis part number is for reference only. Schlage • ND-Series service manual • 73...

  • Page 74: Storeroom Lock-Electrically Unlocked (Fail Secure) With Request-To-Exit

    Soft durometer spacer 24055246 Electrified latch † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Not sold separately as a part. Chassis part number is for reference only. 74 • Schlage • ND-Series service manual...

  • Page 75: Institution Lock

    24088361* Cylinder—6 pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 75...

  • Page 76: Faculty Restroom Lock

    Plunger—push and turn N123-017 Inside spring cage—standard N123-032 Cylinder—6-pin indicator 23-003 Chassis 24088411* Push button with spanner access N523-124 Anti-rotation plate N523-055 Soft durometer spacer 24055246 Strike 10-025 Chassis part number is for reference only. 76 • Schlage • ND-Series service manual...

  • Page 77: Entrance/Office Lock Wtih Vandlgard

    Anti-rotation plate N523-055 Push button N523-000 Deadlatch 13-047 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 77...

  • Page 78: Entrance Lock With Vandlgard

    Push and turn button N523-001 Deadlatch 13-047 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Chassis part number is for reference only. 78 • Schlage • ND-Series service manual...

  • Page 79: Vestibule With Vandlgard

    Outside spring cage—standard N123-022 Mounting screw N523-021 Inside spring cage—keyed inside except SFIC N123-021 Strike screw C603-256 Chassis 24088387* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 Chassis part number is for reference only. Schlage • ND-Series service manual • 79...

  • Page 80: Classroom Lock With Vandlgard

    Chassis 24088395* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Chassis part number is for reference only. 80 • Schlage • ND-Series service manual...

  • Page 81: Classroom Security Lock With Vandlgard

    Chassis 24088171* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft duromater spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 81...

  • Page 82: Storeroom Lock With Vandlgard

    Chassis 24088403* Cylinder—6-pin 23-065 Anti-rotation plate N523-055 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Chassis part number is for reference only. 82 • Schlage • ND-Series service manual...

  • Page 83: Storeroom Lock With Vandlgard ® -Electrically Unlocked

    Soft durometer spacer 24055246 Electrified latch † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Not sold separately as a part. Chassis part number is for reference only. Schlage • ND-Series service manual • 83...
  • Page 84 Soft durometer spacer 24055246 Electrified latch † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Not sold separately as a part. Chassis part number is for reference only. 84 • Schlage • ND-Series service manual...

  • Page 85: Corridor Lock With Vandlgard

    Anti-rotation plate N523-055 Push button N523-000 Deadlatch 13-047 Soft durometer spacer 24055246 † For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 86. Chassis part number is for reference only. Schlage • ND-Series service manual • 85...

  • Page 86: Parts And Kits

    N123-021 Inside spring cage—SFIC N123-057 Anti-rotation plate N523-055 Anti-rotation plate N523-055 Mounting screw N523-021 Mounting screw N523-021 Cylinder—full size IC 23-030 Cylinder—SFIC 80-037 IC driver N523-127 Small format IC spacer (6-pin only) D500-000 86 • Schlage • ND-Series service manual...

  • Page 87: Lever Designs

    Lever sizes available for Competitor Cylinder Options, see 88. Not available on Omega lever style. Tactile warning Not available on Omega levers Tubular lever Rhodes lever Preface design code for tactile warning levers Athens Rhodes Sparta Tubular Schlage • ND-Series service manual • 87...

  • Page 88: Competitor Cylinder Options

    JD CO7 Corbin Russwin Full Size Interchangeable Core 7 Pin Cylinder UNDER DEVELOPMENT LD CO6 Corbin Russwin Key in Lever 6 Pin Cylinder JD YA7 Yale Full Size Interchangeable Core 7 Pin Cylinder 88 • Schlage • ND-Series service manual...

  • Page 89: Roses

    Logo, 20-741 ® ® 23-565. UL 437 Listed Small format interchangeable cores Everest Combinated, 80-037 Best Keyway 7-Pin Uncombinated, ® ® 80-033 Also available in Also available in uncombinated 6-pin uncombinated (80-036) (80-043) Schlage • ND-Series service manual • 89...

  • Page 90: Latches

    Can only be used with 2 ³⁄₄” backset latch. Installation tools and kits Boring jigs and tools are designed to provide fast and accurate lock installation. Complete kits or individual tools can be ordered for preparing doors and jambs for Schlage products. Pin wrench Old style pin wrench...
  • Page 91 Tool, trim removal N123-028 Plunger assembly N123-017 Plunger assembly N523-056 Spindle, inside N523-013 Spindle, outside N523-019 Spindle, outside, electrified N123-020 Package, screw N123-040 Package, screw 24085037 Hub, inside 24085060 Hub, inside 24088544 Housing, outside Bottom Schlage • ND-Series service manual • 91...

  • Page 92: Strikes

    626. 606, 612, 613, 619, 625, 626. ElectrIc Strike, 10-042 ANSI PlastIc Strike Box, K510-066 Size: 1 ” x 4 ” 24 Volt AC 12 Volt DC Available in 606 and 626 only. 92 • Schlage • ND-Series service manual...

  • Page 93: Screws, Screw Packs And Special Parts

    Specify lip length Specify finish. Screw packs, Torx ® Part no. Description Contents C203-311 Latch and strike (includes tool) (4) C503-766 (T-15) C203-312 Latch and ANSI strike (includes tool) (2) C503-766 (T-15) (2) L583-371 (T-20) Schlage • ND-Series service manual • 93...

  • Page 94: Finishes

    Satin chromium plated, no coating (US 10B) Oil rubbed bronze, oxidized satin bronze, oil rubbed, no coating Ordering procedures To order Schlage products, descriptive data should be in the same sequence as shown below. Line Item Product Outside Inside Hand...

  • Page 95: Limited Warranty

    Fax (800) 452-0665 may not apply to you. The Schlage Lock Company reserves the right to make changes in The provisions of this warranty do not apply to Products: (i) used designs and specifications or to make additions or improvements for purposes for which they are not designed or intended;...
  • Page 96 As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 7,800 people and sells products in more than 120 countries across the world. Allegion comprises 23 global brands, including strategic brands CISA , Interflex , LCN , Schlage and Von Duprin ® ® ® ®...
