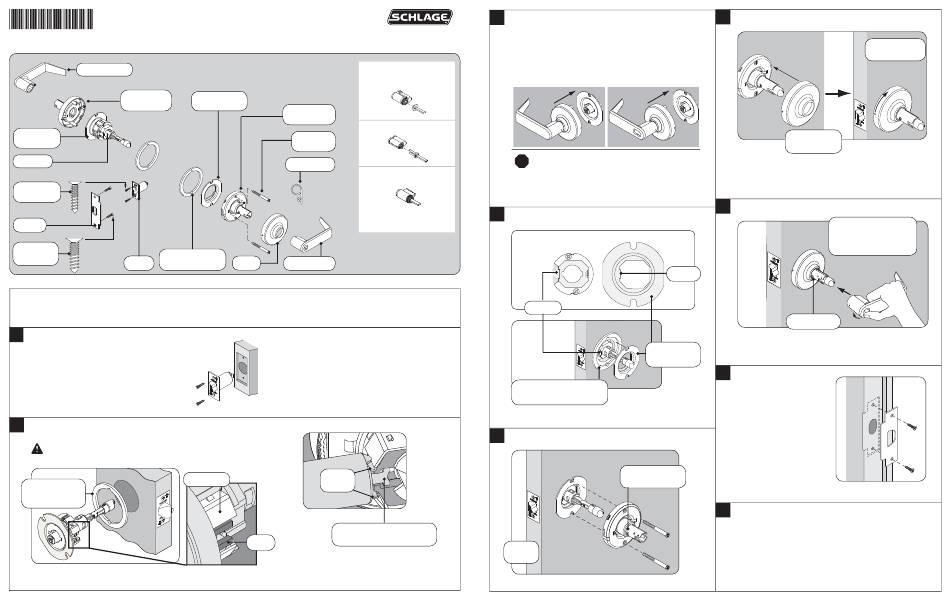

Standard Installation Instructions
P515-167
Outside Lever
Outside
Spring Cage
Adjustment
Plate
Chassis
Latch
Screws (2)
Strike
Strike
Screws (2)
Optional Spacer
Latch
for 1³⁄₈" Door (2)
Door Preparation
For door preparation use the template included in the package with the lock. For additional information, refer to the Schlage website:
securitytechnologies.ingersollrand.com
1
Install Latch
The bevel must face toward the door stop.
2
³⁄₄
IF DOOR THICKNESS IS NOT 1
",
SEE "DOOR THICKNESS ADJUSTMENT".
Slide Clip
Optional Spacer
1³⁄₈" (35 mm) thick
door ONLY
Latch prongs fi t between slide and slide clip.
ND-Series
ND53 Function Shown
Cylinder Options
Full Size IC (FSIC)
Anti-Rotation
Plate
Inside Spring
Cage
Small Format (SFIC)
Mounting
Screws (2)
Pin Wrench
Standard Cylinder
See Keyed Levers/ Timing
for installation instructions
Rose
Inside Lever
Latch
Prongs
IMPORTANT!
Push latch to center of slide
Slide
3
Non-Keyed Outside Levers ONLY:
Install Outside Lever and Springcage
Keyed IC Outside Levers ONLY:
Install Outside Lever and Springcage - DO NOT
install IC cylinder
Non Keyed
Keyed IC
!
IMPORTANT! ALL Keyed Outside Levers:
Follow steps at Keyed Levers/Timing
Non-Keyed Levers ONLY, go to step 4
4
Install Anti-Rotation Plate
Align the tab with the indent
on the hub.
Indent
Anti-Rotation
Plate
Optional Spacer
³⁄₈
1
" (35 mm) door ONLY.
5
Install Inside Spring Cage Assembly
Lever catch
faces door edge.
Door
edge
6
Install Inside Rose
Align dimple
and groove.
7
Install Inside Lever
Rotate lever slightly
toward lever catch and
fi rmly push on until lever
catch engages.
Tab
Lever catch
8
Install Strike
9
Check Lock Function
If a keyed function does not work properly, see
KEYED LEVERS/TIMING.
Rotate rose
until it stops.
