1 I
NTRODUCTION
The Datamars R-IN1300 MID High Frequency (HF) RFID-reader, designed to work in industrial
environments, is resistant to vibrations, electromagnetic interference and able to detect the following
transponder technologies:
T-BT 1320, T-BT1315, T-BT1311 (ISO 15693), HF
The reader is able to find simultaneously more than one High Frequency (HF - multi read)
1
transponder .

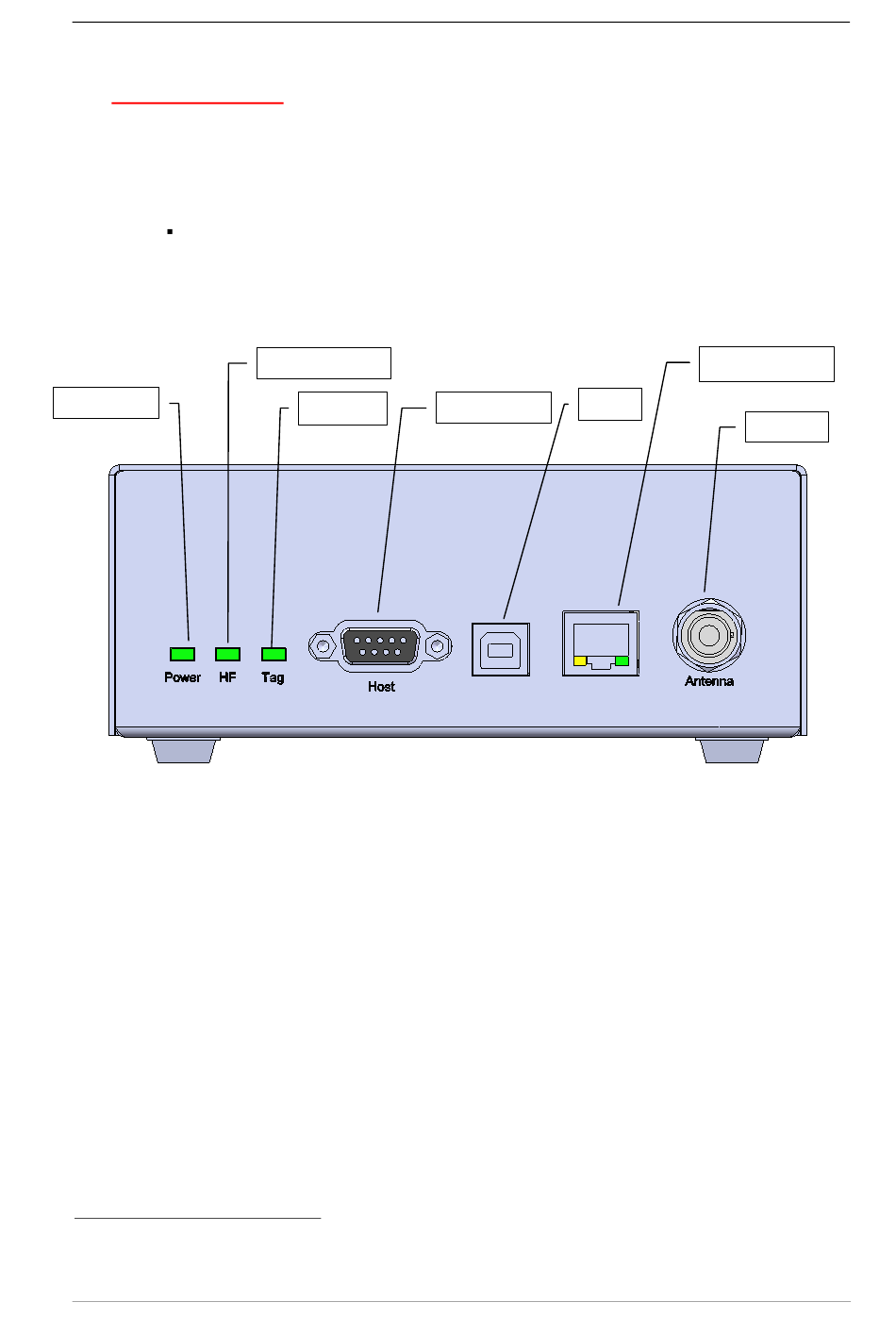

Power
indicator
LEDs
Power
Tag
HF
Antenna
Antenna
Interfaces
Host
USB
Ethernet (Web Server)
1
the quantity of transponders detected and the accuracy can change depending on the used transponder, the environment, the
size of the antenna, etc.
R-IN 1300 MID User Manual – Rev 3.0
HF field indicator
Tag found
Light on when the reader is switched on
Light on when one or more transponder are detected
High Frequency reading is ON (Led blinks during software update)
TX/RX antenna: for example A-ST1330TT / TTL
Connect to any serial port (COM) on your PC with RS-232 cable or to
any other RS232 Terminal.
USB device port
Connect to LAN with a standard Ethernet cable.
For more info in Ethernet communication please request the
"R-IN1300 TCP/IP Dedicated Protocol" manual to
support@datamars.com
USB
Host Interface
interfa
DATAMARS
Ethernet interface
Antenna
2 (40)
