2 H

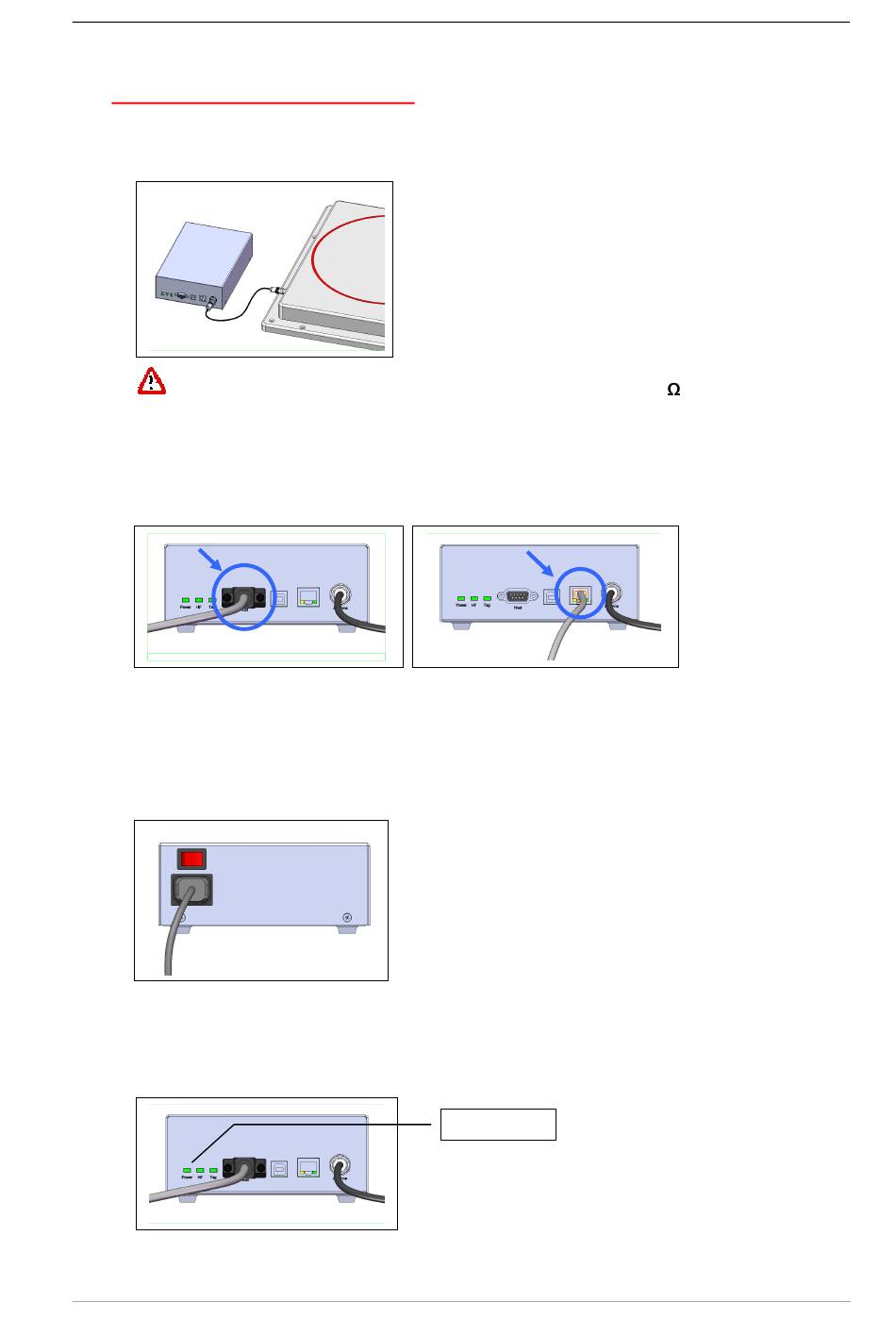

ARDWARE CONNECTIONS
1. Antenna:
Connect the black coaxial cable from the antenna to the connector marked as "Antenna".
You can not use cable other than the 3.5m coaxial 50
Datamars. Additional extension cables at disposal.
2. PC/Terminal or Ethernet
Connect the serial white cable from the connector marked "Host" to any serial port (COM) on
your PC or the reader "R-IN 1300 MID" can be connected to the LAN just like a PC (Ethernet
cable & RJ-45 connectors).
A direct Ethernet connection between a PC and "R-IN 1300 MID" reader is also possible, with
an Ethernet Cross Cable (supplied together with the reader). Refer to Appendix A for more
details on how to do this.
3. Power
Connect the power cable 110 – 240 V AC and be sure that it is well fixed.
4. Set the Power Switch to ON and check if the green LED (Power) is on.
5. Wait until light "Tag" stop flashing (~20 seconds).
R-IN 1300 MID User Manual – Rev 3.0
Green light on
DATAMARS
cable supplied by
4 (40)
