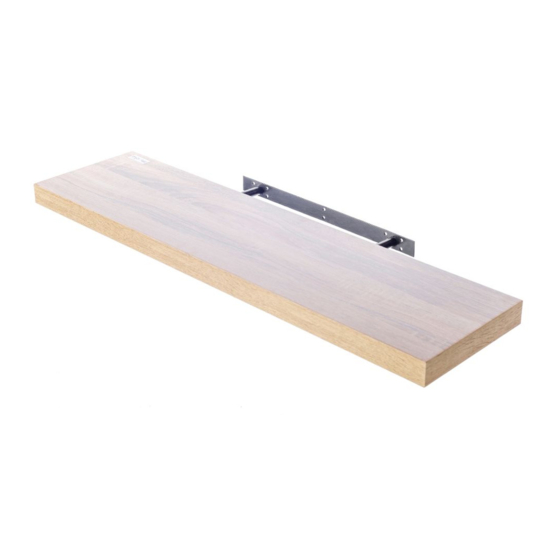

Floating Shelf
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
D
wall
35mm
wall
25mm
anchor x6
screw x6
bracket x1
screw x2
Hardware Supplied
Phillips screwdriver required.
We also recommend using a pencil and spirit level.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
1
mocka.co.nz | mocka.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Floating Shelf
Summary of Contents for Mocka Floating Shelf
- Page 1 Floating Shelf Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. wall 35mm wall 25mm anchor x6 screw x6 bracket x1 screw x2 Hardware Supplied Phillips screwdriver required. We also recommend using a pencil and spirit level.
- Page 2 Floating Shelf Assembly Instructions Determine the placement of your shelf, ensuring it is level. Mark the Slide the shelf over the bracket (C). location of the anchors with a pencil. Insert 6x screws (B) into the wall bracket (C) using 6x anchors (A) and tighten with a screwdriver or drill.
- Page 3 Floating Shelf Assembly Instructions Tighten 2x screws (D) into the bracket to secure. You’re all done, enjoy! mocka.co.nz | mocka.com.au...
