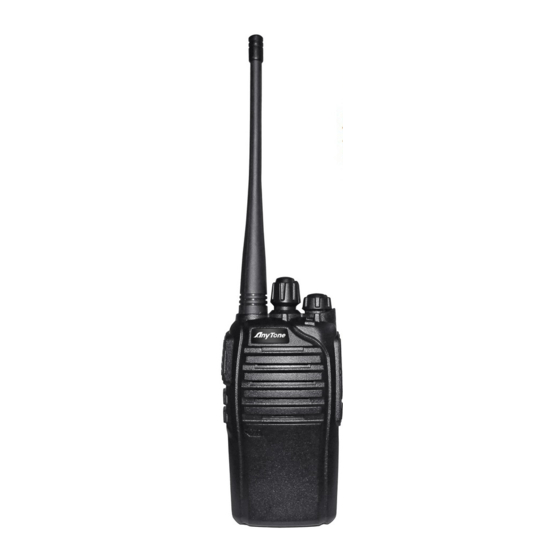

- Page 1 TWO WAY RADIO Model name:3208plus Frequency:136-174MHz FCC ID:T4K3208PLUSA...
- Page 2 SAFETY INFORMATION FOR USER transceiver is excellently designed with advanced technology. Please observe the following precautions to perform your obligation, prevent personal injury and ensure the safety of transceiver usage. Keep the transceiver and accessories away from children. Please do not try to open or modify the transceiver without permission, non-professionals process may also cause damage.
-
Page 3: Table Of Contents
CONTENTS UNPACKING ............................1 Supplied Accessories .........................1 STANDARD ACCESSORIES/OPTIONAL ACCESSORIES ..............2 Standard Accessories ..............................2 BATTERY INFORMATION ........................3 How to Charge ................................3 PREPARATION .............................4 Installing / Removing the Battery ..........................4 Installing / Removing the Antenna ..........................5 Installing / Removing the Belt Clip ..........................5 Installing the Additional Speaker/ Microphone (Optional) ..................6 GETTING ACQUAINTED ........................7 Indicator Status and Beep ............................9... - Page 4 CONTENTS Transmitting ................................13 Power Switch ................................13 ON/OFF VOX ................................13 Battery Save Setup ..............................14 CTCSS / DCS Encode and Decode ..........................14 Time-out Timer ................................14 Resume Factory Default ............................15 Maintaining and Cleaning ............................15 TECHNICAL SPECIFICATIONS ......................16 TROUBLE SHOOTING GUIDE ......................17 Professional FM Transceiver...
-
Page 5: Unpacking
UNPACKING Carefully unpack the transceiver. We recommend you to identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, please contact dealers immediately. Supplied Accessories Item Number Quantity Antenna... -
Page 6: Standard Accessories/Optional Accessories
STANDARD ACCESSORIES/OPTIONAL ACCESSORIES Standard Accessories Antenna* Li-ion Battery Pack Charger AC Adaptor Belt Clip QB-40L QBC-40L QPS-07 BC09 QA01U (136-174MHz) Instruction Manual Professional FM Transceiver... -
Page 7: Battery Information
BATTERY INFORMATION How to Charge Plug the AC adaptor into the AC outlet, and then plug the cable of the AC adaptor into the DC jack located on the back of the Charger. The Backlight lights orange (1s) and then goes out, lights green----waits to charge. -
Page 8: Preparation
PREPARATION Installing / Removing the Battery ■ Installing the Battery Lay the battery to face the back of the radio. Press the button of battery , the latch in button of transceiver locks will release . After hearing a "click" sounds ,the battery has been locked. ■... -
Page 9: Installing / Removing The Antenna
PREPARATION Installing / Removing the Antenna Installing the Antenna: ■ Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. ■ Removing the Antenna: Turn the antenna anticlockwise to remove it. Installing / Removing the Belt Clip ■... -
Page 10: Installing The Additional Speaker/ Microphone (Optional)
PREPARATION Installing the Additional Speaker/ Microphone (Optional) Unveil the MIC-SP jack cover and then insert the Speaker/Microphone plug into MIC-SP jack. Note: The transceiver is not completely waterproof while using the Speaker/Microphone. Professional FM Transceiver... -
Page 11: Getting Acquainted
GETTING ACQUAINTED Professional FM Transceiver... - Page 12 GETTING ACQUAINTED Antenna POWER / VOLUME Switch: Turn clockwise to switch on the transceiver, and turn anticlockwise till hearing “Click” to switch off the transceiver. After switching on the transceiver, turn clockwise to increase the volume and anticlockwise to decrease the volume. Indicator light PTT Key When you are making a call, please press and hold this key to speak into the microphone.
-
Page 13: Indicator Status And Beep
GETTING ACQUAINTED Indicator Status and Beep Warning on low voltage The red light twinkles. Transmitting Lighten the red light. Receiving Lighten the green light. Reading Frequency: Red light twinkles Reading/Writing Frequency Writing Frequency: Green light twinkles Key Operation Voices "DU" into any function, "DU DU" to exit any function. [PF1] &... -
Page 14: Auxiliary Functions
GETTING ACQUAINTED AUXILIARY FUNCTIONS Users can setup the key [PF1] and [PF2] to be one of the optional functions as bellows : • Squelch off • Monitor • Current Channel Power Enquiry • Frequency Reverse • Talk Around • Battery Capacity Enquiry •... -
Page 15: Basic Operations
BASIC OPERATIONS Switch on / off Transceiver Switch on Transceiver: Under power-off state, turn POWER / VOLUME clockwise till hearing "Click" to switch on the transceiver. The transceiver will announce "Power on" when power-on and announce the current channel. Switch off Transceiver: Under power-off state,turn POWER / VOLUME anticlockwise till hearing "Click"... -
Page 16: Channel Selection
BASIC OPERATIONS Channels Selection Under the standby conditions, turn channel selector knob to choose the desired channel, and the transceiver will announce the adjusted channel. Turn clockwise to increase the channel, anticlockwise to decrease the channel. NOTE: The transceiver will emit a voice prompt when current channel is blank and the red light will flash. Receiving You can hear the transmitting party's calling when the channel you are operating is called and the LED light turns green. -
Page 17: Transmitting
BASIC OPERATIONS Transmitting Before transmitting, make sure that the channel you want to use is not in busy state through monitoring for a while by pressing the programmed Squelch off [PF1] / [PF2] key. Under these conditions, press the [PTT] key and speak into microphone. Please keep around 2.5-5cm distance between microphone and your lip. -
Page 18: Battery Save Setup
BASIC OPERATIONS Battery Save Setup When this function is enabled, the transceiver can efficiently reduce battery consumption. The transceiver will automatically switch on Battery Save Function when not receiving a signal or making any operations. But when the transceiver receives a matching signal or make operation it will automatically exits this function. -
Page 19: Resume Factory Default
BASIC OPERATIONS Resume Factory Default Once transceiver works abnormally for wrong operations or wrong programming, users can start this function to resume all functions and channels as Factory Default. Under standby conditions press [PTT] and [PF1] key synchronously to switch on transceiver. Holding the two keys until hear transceiver announces "DI"... -
Page 20: Technical Specifications
TECHNICAL SPECIFICATIONS General Adjacent Channel ≥60dB Selectivity Frequency Range UHF: 136-174MHz Intermodulation ≥55dB Spurious Rejection ≥80dB Channel Capacity 16 channels Audio Response 6dB/per interval Channel Spacing Hum & Noise ≥40dB 12.5KHz Audio Distortion ≤5% Phase-locked Step 2.5KHz, 5KHz, 6.25KHz Audio Power Output 500mW/10% Operating Voltage 7.4V DC... -
Page 21: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE Problem Corrective Action The battery pack may be exhausting. Recharge or replace the battery pack. The battery pack may not be installed correctly. Remove the battery pack and install it again. No Power The power switch is broken; send it to local dealers to repair. - Page 22 SAFETYTRAINING INFORMATION Your Qixiang Electron Science & Technology Co., Ltd radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. In addition, your Qixiang Electron Science & Technology Co., Ltd radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
