Panels and Locations of Features

Location and quantity of LEDs and corresponding connectors vary by model, but the functions and port wiring are identical
across models for each port type.

Front Panel Features

Power
R
LED
Reset
Button
(recessed)
RTS
CTS
Power
R
Tx
LED
Rx
Reset
Button
(recessed)
RTS
CTS
Power
R
Tx
LED
Rx
Contact Input
LEDs
1
2
Power
3
R
LED
4
Reset
Button
(recessed)
Power
R
LED
NOTE: Numbers adjacent to LEDs
correspond to the like-numbered
rear panel ports.

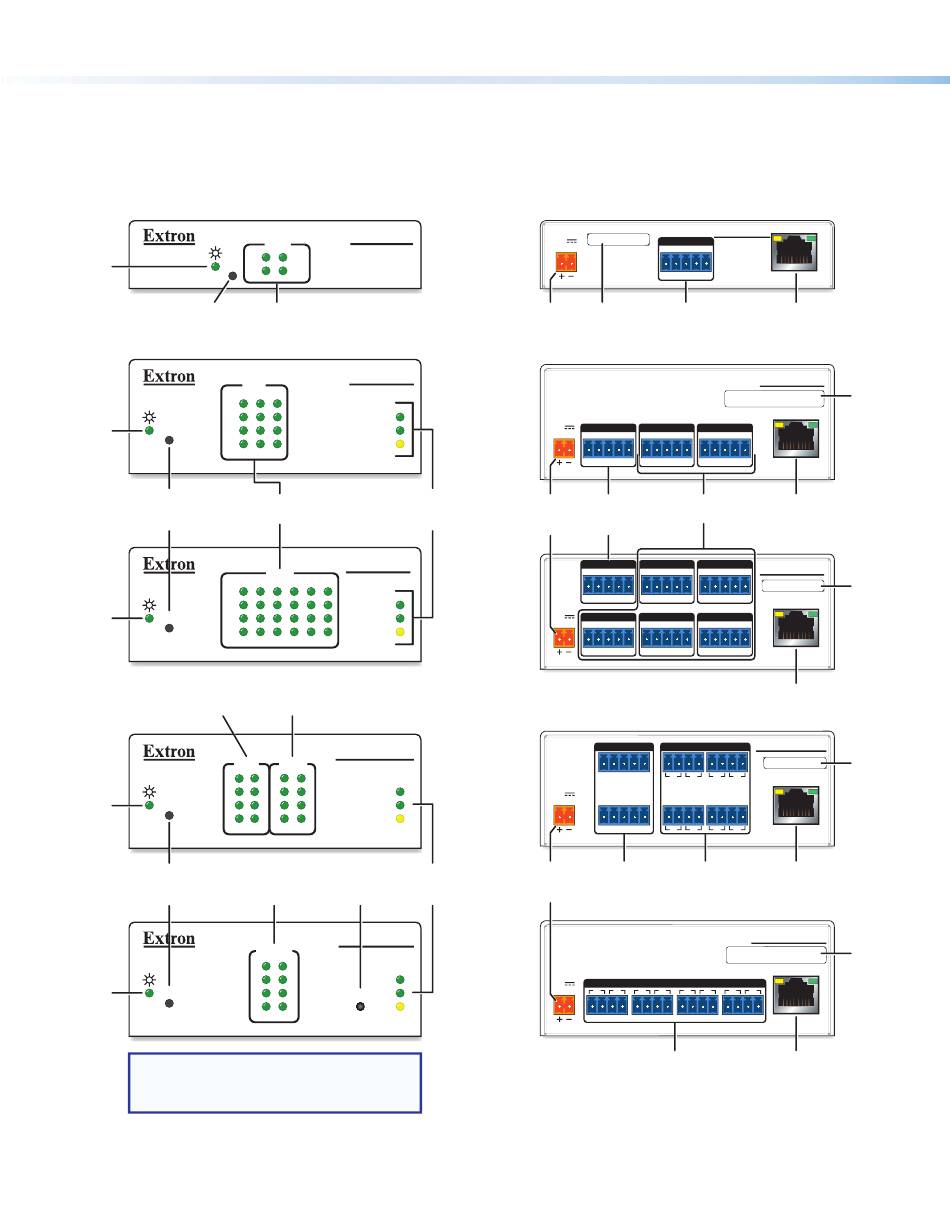

IPL Pro Series Front Panel Features
Figure 2.
4
IPL PRO S1
COM
Tx RTS
Rx CTS
COM (Serial)
LEDs
IPL PRO S3
COM
1000
LINK
ACT
1 2 3
COM (Serial)
Network
LEDs
IPL PRO S6
COM
1000
LINK
ACT
1 2 3 4 5 6
Relay
LEDs
IPL PRO CR88
INPUT RELAYS
5 1 5
1000
6 2 6
LINK
7 3 7
ACT
8 4 8
IR/Serial IR Learning Network
LEDs Receiver
IPL PRO IRS8
IR/SERIAL
1 5
1000
2 6
LINK
3 7
IR
ACT
4 8

Rear Panel Features

POWER
MAC: 00-05-A6-XX-XX-XX
12V
S/N: ####### E######
0.2A MAX
Power MAC
input address
connector
POWER
12V COM 1
0.3A MAX
Tx Rx
LAN/
Power 5-pole COM
input
RS-232/RS-422/
LEDs
connector RS-485 ports
COM 1
Tx Rx
POWER
COM 4
12V
0.3A MAX
Tx Rx
POWER
12V
0.3A MAX
Power
LAN/
input
connector
LEDs
POWER
12V
0.3A MAX
1
S
IPL Pro Series Rear Panel Features
Figure 3.
IPL PRO S1
COM
Tx Rx G RTS CTS LAN / PoE
5-pole COM LAN/PoE
RS-232 port (Ethernet)
connector and LEDs
IPL PRO S3
MAC: 00-05-A6-XX-XX-XX
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX S/N: ####### E######
S/N: ####### E######
COM 2 COM 3
G RTS CTS Tx Rx G RTS CTS Tx Rx G RTS CTS LAN / PoE
5-pole COM LAN/PoE (Ethernet)
RS-232 ports connector and LEDs
COM 2 COM 3
IPL PRO S6
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
G RTS CTS Tx Rx G RTS CTS Tx Rx G RTS CTS
COM 5 COM 6
G RTS CTS G RTS CTS G RTS CTS LAN / PoE
Tx Rx Tx Rx
LAN/PoE (Ethernet)
connector and LEDs
IPL PRO CR88
INPUT RELAYS
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
1 2 3 4 G 1 2 3 4
LAN / PoE
5 6 7 8 G 5 6 7 8
Contact Relay LAN/PoE (Ethernet)
input ports connector and LEDs
ports
IPL PRO IRS8
MAC: 00-05-A6-XX-XX-XX
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX S/N: ####### E######
S/N: ####### E######
IR/SERIAL
2 7 8 7 8 7 8
LAN / PoE
G S G S G S G S G S G S G S G
IR/Serial output LAN/PoE (Ethernet)
ports connector and LEDs
MAC
address
MAC
address
MAC
address
MAC
address
