IPL Pro Series • Setup Guide (Continued)

Overall Configuration Procedure for the Control Processor

Within Global Configurator
(GC Professional or
GC Plus mode):
Figure 4.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
©
2014-2018 - Extron Electronics All rights reserved. All trademarks mentioned are the property of their respective owners.
10
Configure the IP settings of
the control processor and the
TouchLink Pro touchpanels.
If desired or required, install a new
security certi cate (via Toolbelt).
Create a new GC Professional or GC Plus project
and add the control processor to it.
third party touchpanels or
No
Create monitors, schedules, timers,
macros, and local variables.
Add touchpanels or other interfaces
(if used) to the project.
Import GUI layouts and con gure the
touchpanels or other interfaces.
Build and upload the con guration to
Test the system, make adjustments,

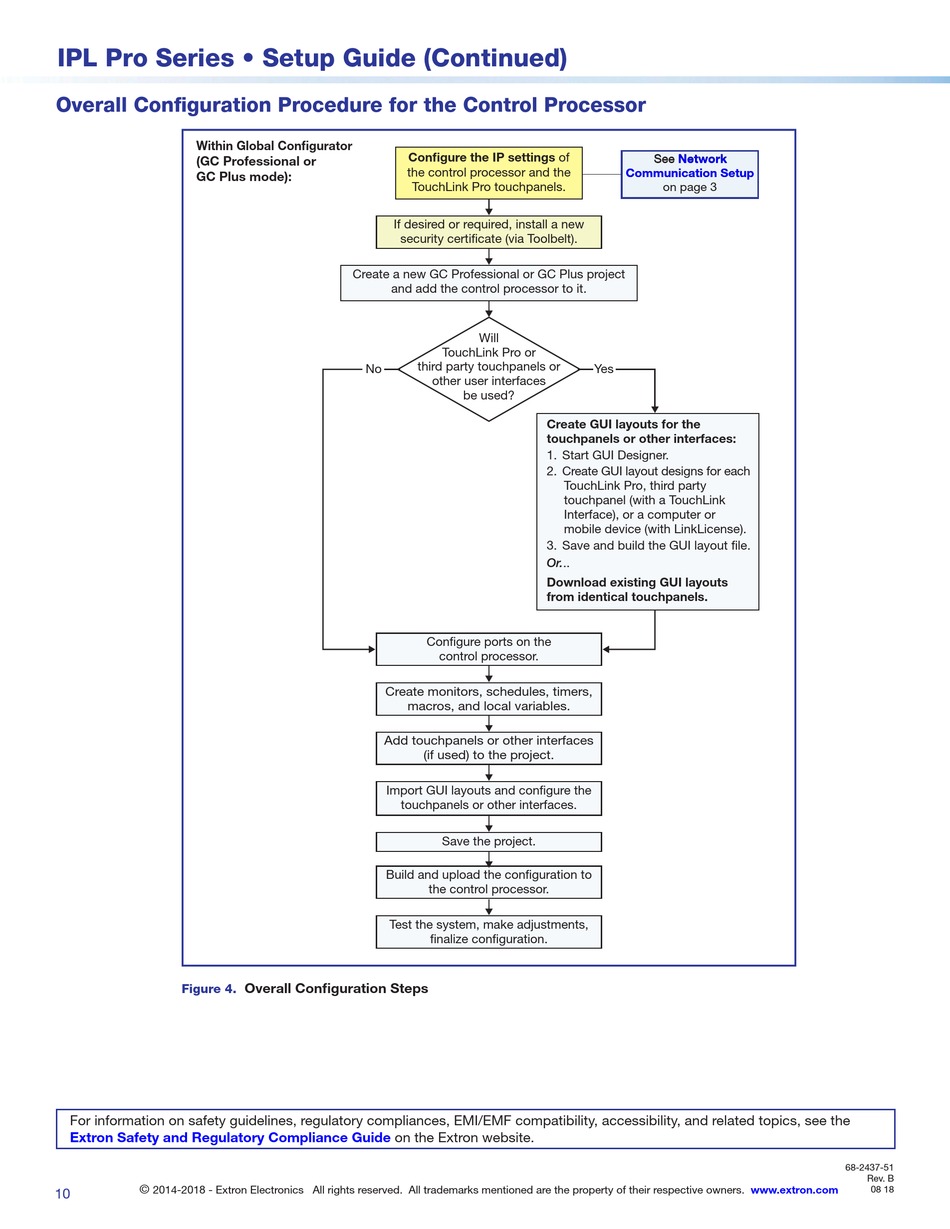

Overall Configuration Steps
