Chauvet Professional WELL PAD User Manual

Wireless event led luminaire
Hide thumbs Also See for WELL PAD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Chauvet Professional WELL PAD

Summary of Contents for Chauvet Professional WELL PAD

  • Page 1 User Manual...
  • Page 2 Edition Notes The WELL Pad User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the WELL Pad as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and WELL Pad are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.

  • Page 3: Table Of Contents

    Control Options ..................... Programming....................Control Panel Lock..................Passcode ........................Menu Map ..................... Configuration (DMX) ..................Control Personalities ...................... 10 Starting Address......................10 DMX Values ....................10Ch..........................11 6Ch..........................11 4Ch..........................12 HSV..........................12 HSI ..........................12 WELL Pad User Manual Rev. 1...
  • Page 4 Virtual Color Wheel (VCW) ................Virtual Color Wheel Chart ....................14 IR Infrared Remote Control ................IR Remote Operation ..................... 15 5. Technical Information ..............Product Maintenance ..................6. Technical Specifications ............Photometrics Charts..................Returns.................... Contact Us ..................WELL Pad User Manual Rev. 1...

  • Page 5: Before You Begin

    Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. WELL Pad User Manual Rev. 1 Page 1 of 20...

  • Page 6: Safety Notes

    40,000 to 50,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product, thus reducing the ambient temperature. In addition, limiting the overall projection intensity may extend the LEDs’ lifespan. Page 2 of 20 WELL Pad User Manual Rev. 1...

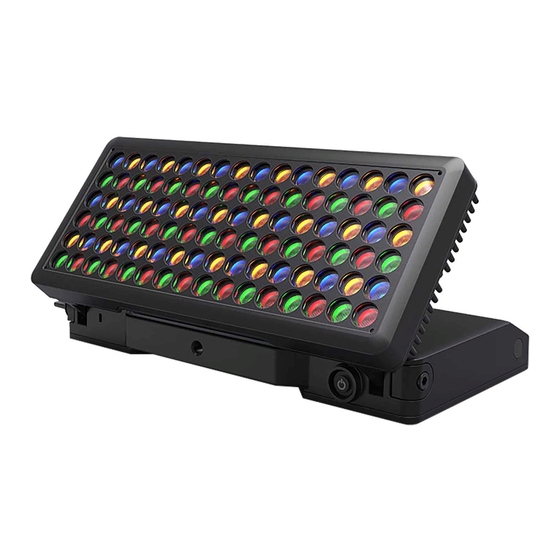

  • Page 7: Introduction

    96 LEDs in red, green, blue, and amber. It can be controlled by WDMX, by an included IR remote, or manually from the OLED display on the product. 90-degree rotation of the panel from the base allows easy direction of light. Selectable PWM ensures the WELL Pad is always camera-ready. Features •...

  • Page 8: Setup

    Each WELL Pad has an auto-ranging battery charger inside the charging case that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for the WELL Pad, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.

  • Page 9: Wireless Operation

    If the WELL Pad has already been paired with the W-DMX transmitter, the Signal Strength Indicator in the middle of the LCD screen will show the strength of the signal. In this case, the WELL Pad is ready to work in Wireless mode.

  • Page 10: Master/Slave Connectivity

    Setup Master/Slave Connectivity The Master/Slave mode allows an WELL Pad (the master) to control one or more WELL Pad products (the slaves) without a DMX controller. One WELL Pad becomes the master when running an auto program, or by being in Static mode.

  • Page 11: Operation

    <DOWN> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the WELL Pad starting address in the 001–512 DMX range. This enables control of up to 51 products in the 10-channel 10Ch personality.
  • Page 12 Shows current firmware version <_ _ _ _ _ _ _ _ _ _ _> Shows product UID Selects DMX address (highest channel DMX Address <1–510> restricted to personality chosen) Page 8 of 20 WELL Pad User Manual Rev. 1...
  • Page 13 Resets the internal receiver (Only in Receive mode) IR Setting Enables/disables IR receiver Locks display (password is <UP>, Key Lock <DOWN>, <UP>, <DOWN>, <ENTER>) Reset Resets the product to factory default Factory settings WELL Pad User Manual Rev. 1 Page 9 of 20...

  • Page 14: Configuration (Dmx)

    1. Go to the DMX Address main level. 2. Select the starting address (001–510). The highest recommended starting address for each DMX mode is as follows: Personality Address 10Ch Page 10 of 20 WELL Pad User Manual Rev. 1...

  • Page 15: Dmx Values

    Dimmer 255 0–100%  255 0–100%  Green 255 0–100%  Blue 255 0–100%  Amber 255 0–100%  010 No function  Strobe 255 Strobe, slow to fast  WELL Pad User Manual Rev. 1 Page 11 of 20...

  • Page 16: 4Ch

    Repeat steps a-b until the static color is set as desired. Dimmer Profiles This setting determines how fast the output of the WELL Pad changes when you modify the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product.

  • Page 17: White Balance

    2. Select PWM Frequency (600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, or 25Khz). Back Light This setting allows for selection of the amount of time the backlight on the WELL Pad’s display stays on after the last button is pressed on the control panel.

  • Page 18: Virtual Color Wheel (Vcw)

    Operation Virtual Color Wheel (VCW) The WELL Pad includes a feature called the Virtual Color Wheel (VCW). This feature is available as a stand-alone control mode for manual use and also as a control channel in select DMX personalities. Over 30 pre-mixed colors, custom blended by our engineers, are available to call up for easier programming.

  • Page 19: Ir Infrared Remote Control

    The WELL Pad is compatible with the included IR remote from Chauvet. To enable use with the IR remote, follow the instructions below: 1.

  • Page 20: Technical Information

    Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 16 of 20 WELL Pad User Manual Rev. 1...

  • Page 21: Technical Specifications

    6. Technical Specifications Dimensions and Weight Length Width Height Weight WELL Pad 15.98 in (406 mm) 8.38 in (213 mm) 3.99 in (101.5 mm) 21.6 lb (9.8 kg) Charging Case 26.29 in (668 mm) 22.83 in (580 mm) 19 in (482.6 mm) 67.8 lb (30.8 kg)

  • Page 22: Photometrics Charts

    7.78 m 13.77 m 9.60 m 19.08 m 25 m 9.72 m 17.22 m 12.00 m 23.85 m 30 m 11.66 m 20.66 m 14.40 m 28.62 m Field Beam Field Page 18 of 20 WELL Pad User Manual Rev. 1...

  • Page 23: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). WELL Pad User Manual Rev. 1 Page 19 of 20...

  • Page 24: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, France, Germany, Benelux, or Mexico, contact the dealer of record. Page 20 of 20 WELL Pad User Manual Rev. 1...
