RHINO-MAT

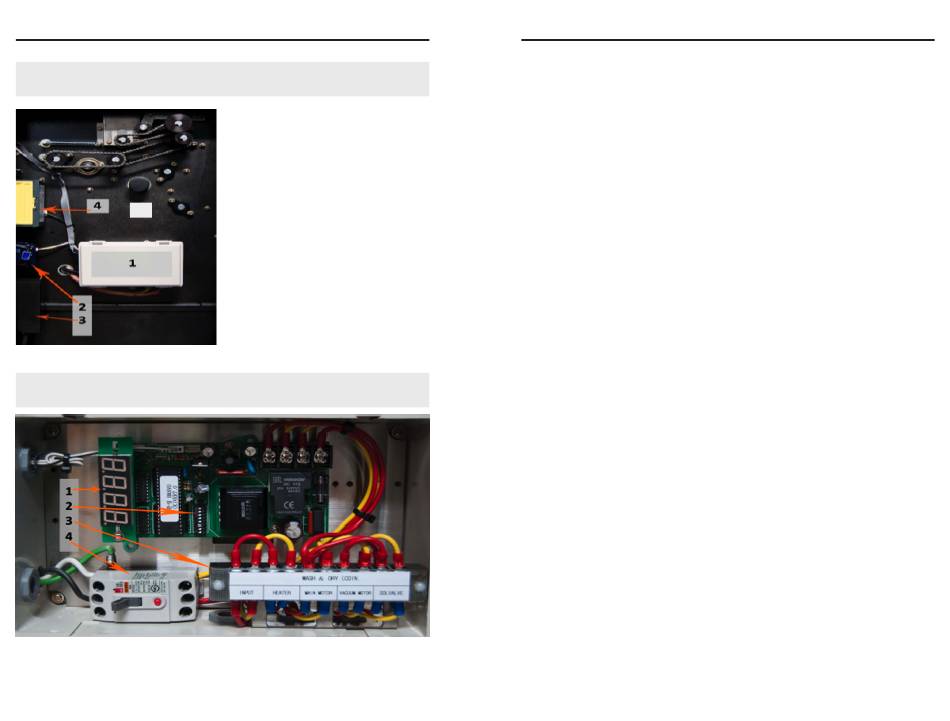

Right Side Panel
5
Control Box (Self-Serve and Full-Serve)
1. Digital Counter
2. Control Box Dip Switches
8
1. Control Box
2. Coin Acceptor
3. Coin Collection Bin
4. Bill Acceptor
5. Extraction Chamber
3. Electrical Connection Board
4. Circuit Breaker
Initial Setup
(Apply to both Full-Serve and Self-Serve models)
NOTE: When opening doors or panels using the provided keys,
always turn the keys together at the same time.
1. If the four included castor wheels are to be utilized for easy
mobility, please ensure they are installed PRIOR to all other setup.
REMEMBER to utilize built-in brakes when the machine is stationary.
2. Position the machine on a level surface, free from obstructions and out
of the way of traffic.
3. Extend the rear mat catch rack and secure to the first or second notch
on both arms.
4. Clamp and position exterior drainage hose pointing down at drain or
connect extended drainage line as needed at your location.
5. Connect line from water source to the water valve inside of the Left
Side Panel. REMEMBER to apply hose clamp tightly. A loose hose
clamp will result in leakage.
6. Pull power cord through the cut out hole and connect the End-Plug
(not included).
7. Plug in to a 110v, 30 amps power source to begin configuration.
CRITICAL INFORMATION: Using a power source rated for less
than 30 amps may result in irreversible damage to the machine
and property. Please exercise extreme caution when working with
electricity and electrical components.
OPERATIONS MANUAL
9
