RHINO-MAT

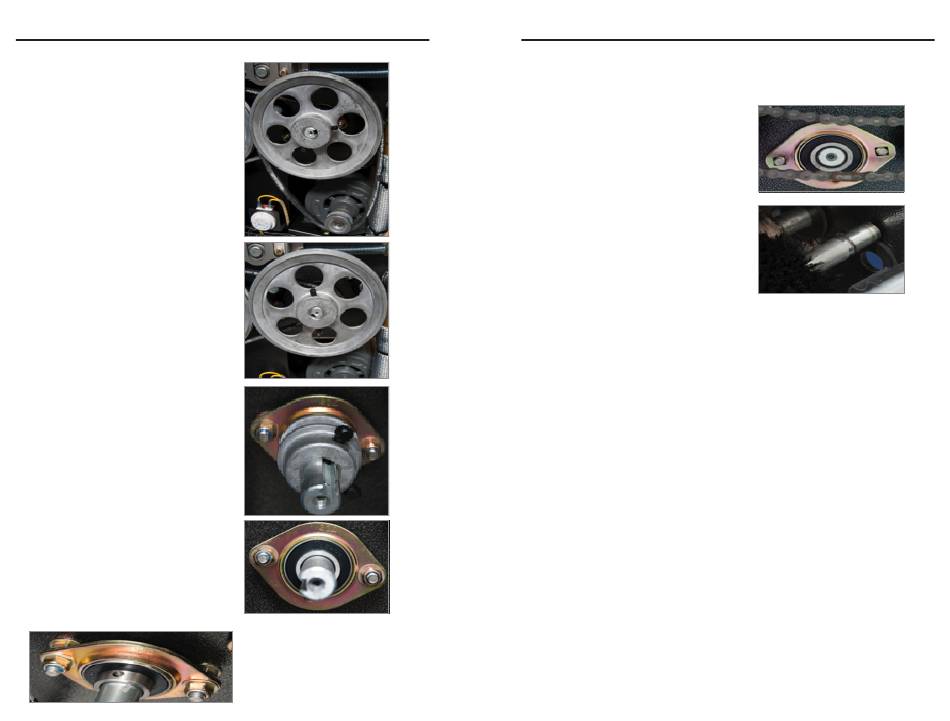

From the left side door panel
1. Remove Main Motor Belt
2. Remove Main Motor Pulley
by loosening the two black
locking bolts. A lot of force
may be needed to pull the
pulley off.
3. Remove Secondary inner
Pulley by loosening the
two black locking bolts.
4. Remove the Bearing and
lock ring.
30
(NOTE: The lock rings have
bolts that must be removed
with an allen wrench before
the bearing assembly can be
removed.)
From the right side door panel
5. Remove the bearing assembly
and lock ring.
From the top hood
6. Slowly push the Brush Roller to
the far left and lift the roller out
of the machine.
Installing the New Brush Roller
Once the old Brush Roller has been removed, installing the new one is as
simple as following the previous steps in reverse order.
1. Insert the new Brush Roller by sliding the shorter side (less rod is
exposed) into the right side hole. Push as far as needed to get the left
side into its respective hole.
2. Reattach and lock the bearing assembly and lock ring into place in the
Right Side Door panel.
3. Move over to the Left Side Door Panel, reattach the bearing assembly,
and lock ring into place.
4. Next, slide the smaller secondary pulley into place ensuring that it
lines up correctly with a corresponding pulley located to the left side.
Once it is in place, lock it down and reattach the belt between it and the
corresponding pulley.
5. Slide the Main Motor Pulley on, ensuring that it is perfectly aligned with
the pulley on the main motor. When the two pulleys are aligned, lock it
into place.
6. Finally reattach the Main Motor belt to complete the installation.
(NOTE: When re-attaching pulleys, some filing of the rod may be
necessary in order for the pulleys to slide on smoothly.)
