Clean World Distribution, Inc. Rhino-Mat RHM-CS Operation Manual
  1. Manuals
  2. Brands
  3. Clean World Distribution, Inc. Manuals
  4. Ultrasonic Jewelry Cleaner
  5. Rhino-Mat RHM-CS
  6. Operation manual

Clean World Distribution, Inc. Rhino-Mat RHM-CS Operation Manual

All in one auto mat wash & dry system
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rhino-Mat RHM-CS and is the answer not in the manual?

Questions and answers

Agustín torres
February 28, 2025

Los motores de vacío de dos etapas a que voltaje vienen para chile en 220 o 110 vac

0
1 comments:
Mr. Anderson
February 28, 2025

The Clean World Distribution, Inc. Rhino-Mat RHM-CS operates at 110V/60Hz, as stated in the manual. There is no mention of a 220V option.

This answer is automatically generated

0

Summary of Contents for Clean World Distribution, Inc. Rhino-Mat RHM-CS

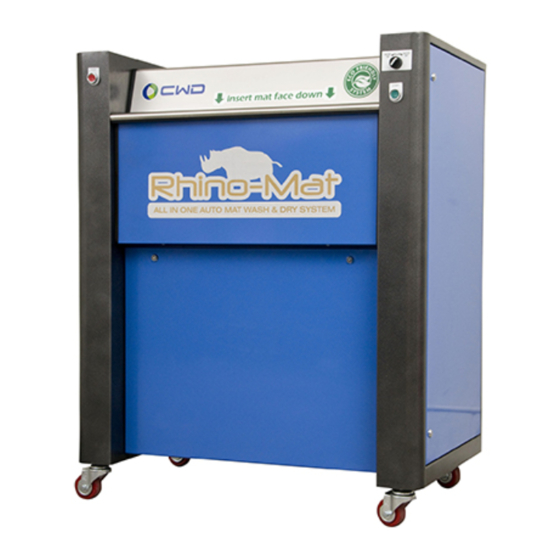

  • Page 2 RHINO-MAT OPERATIONS MANUAL Product Overview Safe, Fast, and Easy to Use  One simple 30-second step process is all it takes to clean and dry each vehicle mat.  Just insert the dirty mat into the auto-flat feed opening, and watch the clean and dry mat exit the machine.

  • Page 3: Table Of Contents

    RHINO-MAT OPERATIONS MANUAL Congratulations on the purchase of your Rhino-Mat Wash & Dry System. Safety Instructions The following operations manual has been created to assist you with the installation, maintenance, and operation of your new Rhino-Mat System. IMPORTANT: TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS Please read the following pages thoroughly as they contain important EQUIPMENT, PLEASE READ THE SAFETY AND OPERATIONAL information about your new equipment.

  • Page 4: Getting Started

    RHINO-MAT OPERATIONS MANUAL Getting Started Top Hood BEFORE OPERATING THE MACHINE, ALL END-USERS SHOULD KNOW HOW TO USE THE MACHINE AND ITS COMPONENTS PROPERLY. MISHANDELING AND NEGLECT CAN LEAD TO IRREVERSABLE DAMAGES TO THE MACHINE NOT COVERED UNDER MANUFACTURER’S WARRANTY. Opening Top Hood Open the top hood by sliding fingers into the mat-feeding slot with palms facing up.

  • Page 5: Initial Setup (Self-Serve And Full-Serve)

    RHINO-MAT OPERATIONS MANUAL Initial Setup Right Side Panel (Apply to both Full-Serve and Self-Serve models) NOTE: When opening doors or panels using the provided keys, always turn the keys together at the same time. 1. Control Box If the four included castor wheels are to be utilized for easy 2.

  • Page 6: Quick Setup Guide

    RHINO-MAT OPERATIONS MANUAL Quick Setup Guide Remove the keys (6) including Remove the top hood stands Fully Extend the rack to Apply the metal fastener first Apply the power connection Insert a 5/8 inch standard (1) clamp for the water line maximize the use of the tray then the plastic tightner as circuit, you should hear a...
  • Page 7 RHINO-MAT OPERATIONS MANUAL Automatic Shutoff Dip Switch Settings Full-Serve Configuration Run Time SW 1 SW 2 SW 3 SW 4 SW 5 SW 6 THE FOLLOWING PROCEDURES DO NOT APPLY TO THE SELF- (MM:SS) SERVE MODEL CONFIGURED FOR PAYMENT. PLEASE REFER TO THE 01:00 NEXT SECTION FOR INFORMATION ON SETTING UP THE PAYMENT 01:30...

  • Page 8: Control Panel Dip Switch Configuration

    RHINO-MAT OPERATIONS MANUAL Self-Serve Configuration Control Box DIP SW Chart for Setting Time Seconds DIP SW 1 DIP SW 2 DIP SW 3 DIP SW 4 DIP SW 5 The following procedures DO NOT apply to the Full-Serve, Push Button Start models.
  • Page 9 RHINO-MAT OPERATIONS MANUAL Configuring Control Panel Dip Switches 6-8 for Price The Configuration settings for length of time per cycle: Now take the ‘Dollar Amount to be charged per cycle in quarters’ and look at DIP SW Chart for Setting Time the Control Box DIP SW Chart for setting price below.
  • Page 10 RHINO-MAT OPERATIONS MANUAL CONFIGURING THE HAWK XEPTOR COIN ACCEPTOR COIN LEARN PROCEDURE Slide the front cover open again and turn the rotary switch back to position #0 and observe the LED turning green. Check that you have Slide the front cover up and identify the three controls to be used in this not accidentally turned it too far to position #15 which is a field test procedure: function position, in which it will not accept coins.
  • Page 11 RHINO-MAT OPERATIONS MANUAL Configuration of the MEI AE 2400 Series Bill Validator The following instructions have been provided courtesy of MEI Group. Clean World Distribution holds no responsibility for claims made by MEI Group. AE2400 Bill Validator is supported directly by MEI Group, Clean World Distribution, Inc. can only provide basic support or replacement of the component in the event of a catastrophic failure.

  • Page 12: Easy Operation Guide: Self-Serve

    RHINO-MAT OPERATIONS MANUAL Easy Operation Guide: Self-Serve Easy Operation Guide: Full Serve Select water switch to Select water switch to “On” or “Off” position “On” or “Off” position Insert payment Press the green Start Button to begin to begin the cycle the cycle Insert first mat face Insert first mat face...

  • Page 13: Frequently Asked Questions

    RHINO-MAT OPERATIONS MANUAL Frequently Asked Questions Q: What if the mat gets stuck or jammed in the machine? Q: Why is water not flowing properly from the drain hose? A: Open the Top Hood; Open the top hood by sliding fingers into the mat- A: The drain hose may be clogged due to an excess of waste.
  • Page 14 RHINO-MAT OPERATIONS MANUAL Maintenance DISCONNECT FROM POWER SOURCES BEFORE PERFORMING Extraction Tray Slit Maintenance MAINTENANCE PROCEDURES. Period Between Maintenance: Every 12 to 18 months after purchase, or Brush Roller Maintenance with replacement of Sponge Roller Date of last maintenance: ___________ Period Between Maintenance: Every 2 weeks or as needed Maintenance consists of clearing any clogged slits on the extraction tray.
  • Page 15 RHINO-MAT OPERATIONS MANUAL Replacing the Brush Roller Sponge Roller In order to replace the Brush Roller you will need access to the left side door Effective life expectancy: 1 to 2 years depending on usage panel, the top hood, and the right side door panel. Unlock the left and right Date of last replacement: ___________ side door panels using the keys provided.
  • Page 16 RHINO-MAT OPERATIONS MANUAL From the left side door panel From the right side door panel Remove the bearing assembly and lock ring. Remove Main Motor Belt From the top hood Slowly push the Brush Roller to the far left and lift the roller out of the machine.
  • Page 17 RHINO-MAT OPERATIONS MANUAL Replacing the Sponge Roller Unlink the chain connected to the Sponge Roller gear by In order to replace the Sponge Roller you will need access to the top hood, carefully removing the chain and the right side door panel. Unlock the right side door panel using the keys clip holding the removable link provided.
  • Page 18 RHINO-MAT OPERATIONS MANUAL Replacing the Feeder Roller Installing the New Sponge Roller Insert the new Sponge Roller from left to In order to replace the Feeder Roller you will need access to the top hood, right, ensuring that the rod end with the and the right side door panel.
  • Page 19 RHINO-MAT OPERATIONS MANUAL Replacing the Vacuum Motor(s) Replacing the Feeder Roller To replace the vacuum motors unlock the bottom front panel using the two keys provided. Use a Philips head screwdriver to remove two screws to open Unlink the chain by carefully the top front panel.
  • Page 20 RHINO-MAT OPERATIONS MANUAL Guide to Maximizing Rhino-Mat’s Washing and Drying Hot water will always help. While the effectiveness of Rhino-Mat System The following list of tips has been created to provide operators of Rhino-Mat lies primarily in patented technology, the application of hot water will effective ways to work out the older more soiled in stains.
  • Page 21 RHINO-MAT OPERATIONS MANUAL Marketing Upon the purchase of your new Rhino-Mat System, it is extremely important to Reward program. have a marketing plan in place to promote the new service within the first month. Provide your customers with a reward for purchasing services. By utilizing The promotional ideas listed below are just a few suggestions for maximizing this program, it gives your customers a goal to attain by coming back to your your potential revenue with the Rhino-Mat system as well as beginning the...

  • Page 22: Dema Adjustable Single Stage Injector

    RHINO-MAT OPERATIONS MANUAL DEMA ADJUSTABLE SINGLE TABLE 1 TABLE 3 STAGE INJECTOR Injection Rates (Oz/Min) Water Pressure Operating Range - INSTALLATION INSTRUCTIONS Metering Tip Color (psi) Gallons Per Minute Viscosity (cps) 1. PARTS 2.00 - 6.40 WATER BY-PASS SCREW A. Injector FIGURE 1 2.30 - 7.50 FINE METERING...
  • Page 23 RHINO-MAT OPERATIONS MANUAL Liquid Carpet Cleaner 4. SERVICING Features: CAUTION: Turn off water supply before servicing. • Concentrated fast drying, low foaming shampoo ideal for The check valve parts are in the metering knob and can be cleaned by Rhino Mat Machines removing the four screws.
  • Page 24 RHINO-MAT WAS TESTED AND MEETS OUR STRINGENT QUALITY STANDARDS. THIS PRODUCT IS GUARANTEED TO BE FREE FROM MANUFACTURING DEFECTS IN ORIGINAL MATERIALS AND ORIGINAL PARTS FROM DATE OF DELIVERY UP TO 2 YEAR; HOWEVER, IT DOES NOT EXTEND TO DAMAGE CAUSED BY SUBSEQUENT OWNERS OF THE EQUIPMENT AFTER THE MACHINE HAS BEEN PUT INTO PLACE.

This manual is also suitable for:

Rhino-mat rhm-ssRhino-mat rhm-ssbc

Table of Contents
