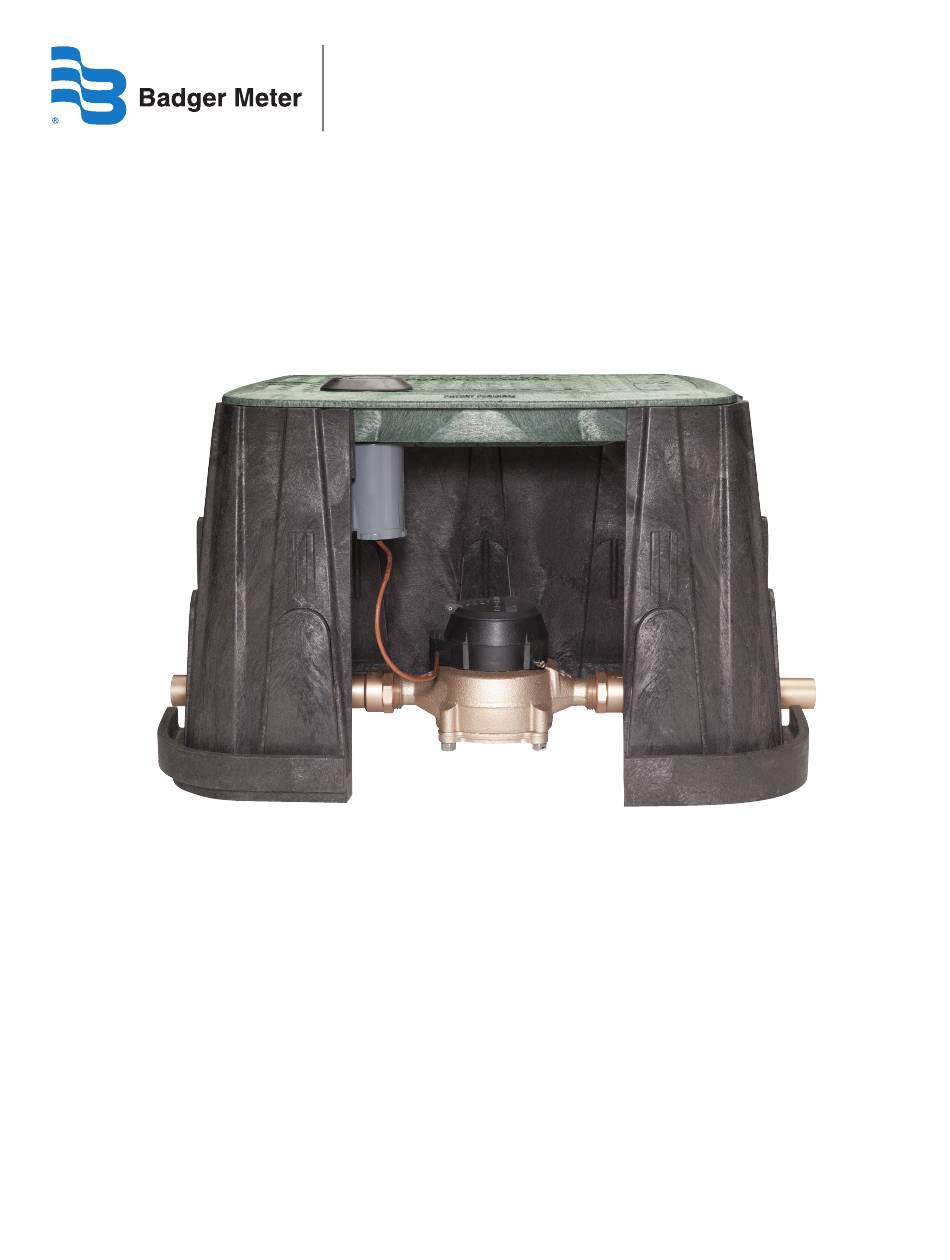

- Page 1 ORION® Water Endpoint IMPORTANT: This manual contains important information. READ AND KEEP FOR REFERENCE. ORI-I-79 (11-11) Installation Data 62014-144 Rev. 2...
- Page 2 ORION® Water Endpoint Page ii 11-11...
-
Page 3: Table Of Contents
Installation Data CONTENTS Overview ................................... 5 Product Unpacking and Inspection ........................5 License Requirements .............................. 5 Identification ................................6 Network Endpoint Installation ..........................7 Splicing Considerations ............................7 ORION Installation Kit Part Numbers ........................7 Pit Installation ................................8 Through the Lid Installation Kit (SE, ME and CE Endpoints) .................8 Below Lid with Knuckles Installation Kit (ME and CE Endpoints) .................9 Integrated Pit Lid Hanger Installation Kit (ME and CE Endpoints) ..............10 Vault Installation Kit (ME and CE Endpoints) .......................10... - Page 4 ORION® Water Endpoint Page iv 11-11...
-
Page 5: Overview
(uncontrolled exposure), a 40 centimeter distance between the transmitter and the body of the user must be maintained during testing. No FCC license is required by a utility to operate an ORION SE meter reading system. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. -
Page 6: Identification
Each ORION endpoint can be identified using the unique numeric serial number located on a tag attached to the wire harness and etched on the top (CE) or side (SE, ME) of the endpoint housing. Each Badger Meter encoder is clearly identified on the face of the register with an assembly number, unit of measure and meter model. -
Page 7: Network Endpoint Installation
Please refer to RTR-I-15 for field splice kit installation instructions. ORION endpoints shipped factory pre-wired to a Badger Meter encoder require no splicing. Only the mounting of the encoder to the meter and tightening the TORX® seal screw is necessary. -
Page 8: Pit Installation

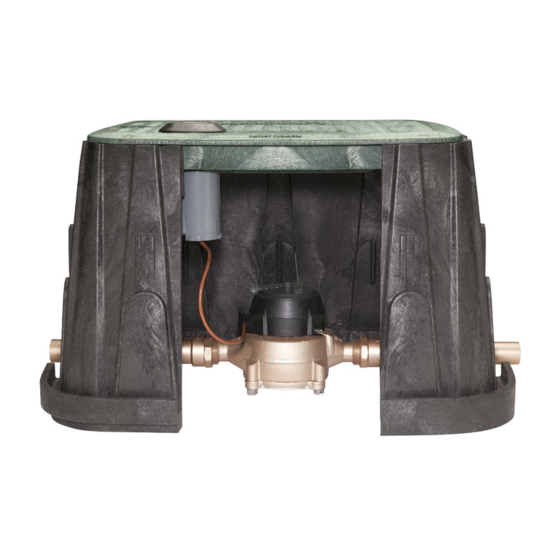

ORION® Water Endpoint Pit Installation Through the Lid Installation Kit (SE, ME and CE Endpoints) The Through the Lid Installation Kit is designed for use with a lid with maximum thickness of one-inch, and a standard hole diameter of 1-7/8 inches. Top Cap 1"... -
Page 9: Below Lid With Knuckles Installation Kit (Me And Ce Endpoints)
Installation Data Below Lid with Knuckles Installation Kit (ME and CE Endpoints) For below the lid installations, a special mounting bracket (Figure 3) is available. This mounting support bracket is designed for use with 3/8", 1/2" and 5/8" rebar or 1/2" schedule 40 PVC pipe. Hex head bolt can be placed 1/2"... -
Page 10: Integrated Pit Lid Hanger Installation Kit (Me And Ce Endpoints)
Figure 5: Integrated Pit Lid Hanger Installation Vault Installation Kit (ME and CE Endpoints) When installation of the ORION endpoint occurs in a deep vault, Badger Meter offers a kit that can be used to mount the endpoint to the side of the vault. -
Page 11: Remote Installation
Installation Data Remote Installation Remote Wall Mount Box Enclosure Kit (SE, ME and CE Endpoints) The ORION Remote Wall Mount Box Enclosure Kit is for use with either the Recordall Transmitter Register (RTR) or Absolute Digital Encoder (ADE) stepped tube and threaded tube ORION endpoint for remote mounting applications. The wall mounted Remote Box Enclosure is designed for mounting ORION endpoints in indoor or outdoor environments and also provides an environmentally protected area for gel splice connections (if needed) to be maintained inside the enclosure. - Page 12 ORION® Water Endpoint 3 Security Ribs 2 Strain Relief Tabs " Wide Slot Hole in Bottom Figure 8: Remote Box Enclosure Mounting Place the endpoint into the ORION Remote Box Enclosure as shown in Figure 9. To ensure maximum endpoint performance, it is important to mount the ORION endpoint in the proper orientation, with the endpoint antenna up and ORION endpoint IR communication port and wire down.
- Page 13 Installation Data After the endpoint is mounted in the Remote Box Enclosure, loop the endpoint wire through the strain relief tab and through the cut out on the bottom of the enclosure. If needed, gel splice connections can be made and kept inside the Enclosure prior to mounting.
-
Page 14: Remote Installation Bracket Kit (Se, Me And Ce Endpoints)
ORION® Water Endpoint Remote Installation Bracket Kit (SE, ME and CE Endpoints) The following instructions are provided to properly install an ORION endpoint in any indoor, outdoor or pit application. Prior to beginning the installation procedure, ensure that the following items are available. •... - Page 15 Installation Data Locate the small triangle aligned with the small hole on the bottom of the installation bracket. This triangle is used to properly align the endpoint to the installation bracket. Triangle Figure 13: Aligning Triangle On the ORION endpoint, there is a small triangle printed on the lower side of the housing. Triangle Figure 14: Housing Triangle Align the two triangles and push the bracket and endpoint together.
- Page 16 ORION® Water Endpoint With the installation bracket in one hand and the housing in your other hand, hold the bracket still and twist the housing approximately 1/4 turn clockwise until it clicks and locks into place. Figure 16: Bracket and Housing Connection To install the endpoint assembly, follow these steps.
-
Page 17: Wiring A Universal Endpoint
Installation Data Wiring a Universal Endpoint Universal Endpoint Identification The ORION Universal endpoint is available in a three-wire pit or remote endpoint configuration for connection to Sensus® and ECR II, Neptune® ProRead and E-Coder™, Elster AMCo® ScanCoder ®, Hersey® and Metron Translator encoder registers. - Page 18 When the terminal post information is determined, use the Sensus ECR 11, OCE wiring directions below. NOTE: The terminal posts and wire colors may not match. ORION CE Endpoints (Serial Number > 80,000,000) or ORION SE and ME Endpoints Universal 1 Sensus...
-
Page 19: Encoder Register Installation
Installation Data Using the required Gel Splice Crimping Tool (59983-001), place the connector with the wires into the jaws of the crimping tool. Figure 19: Connector in Crimping Tool Crimp the connector by squeezing the handles until the connector is completely compressed. The crimp tool is designed to prevent applying too much pressure to the gel cap. - Page 20 In either case, no specific testing or programming of the endpoint is required. Reading each pit endpoint after it has been installed verifies proper installation and reading performance. ADE, ORION and RTR are registered trademarks of Badger Meter, Inc. Other trademarks appearing in this document are the property of their respective entities.
