FourStar 11210477 Assembly Instructions

MODEL: 11210477
PARSON'S 3 PIECES
NESTING TABLE

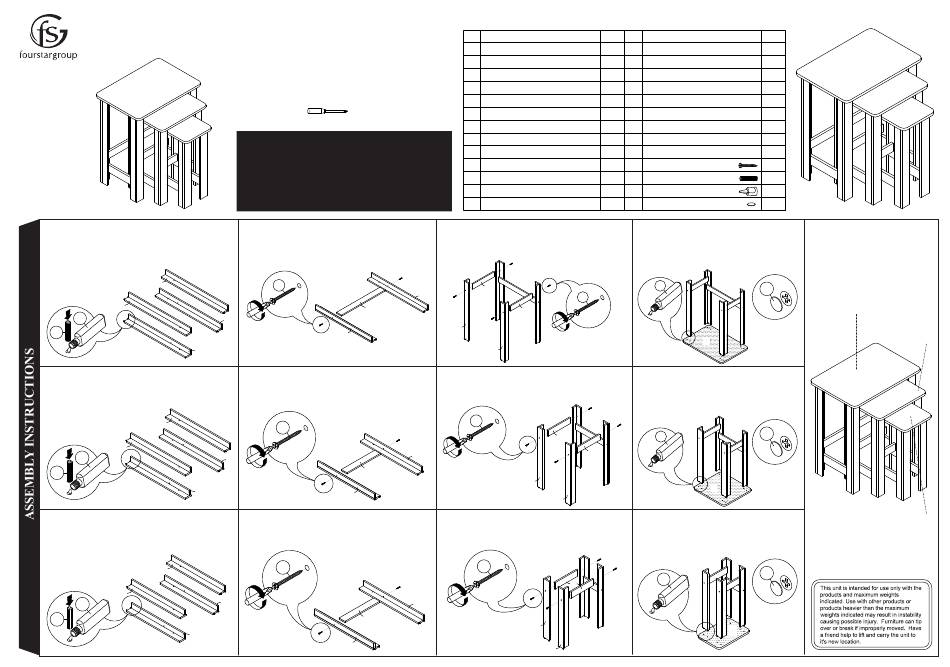

STEP 1

INSERT WOODEN DOWEL (2) INTO PANELS (B) (C)
(D) (E) WITH GLUE (3).
C
B
3
D
2
E

STEP 5

INSERT WOODEN DOWEL (2) INTO PANELS (I) (J)
(K) (L) WITH GLUE (3).
J
I
3
K
2
L

STEP 9

INSERT WOODEN DOWEL (2) INTO PANELS (P) (Q)
(R) (S) WITH GLUE (3).
Q
P
R
3
2
S
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS
CAREFULLY. FOLLOW THEM STEP BY STEP.
CAUTION:
1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS.
CARE SHOULD BE TAKEN IN THE UNPACKING
AND ASSEMBLY OF THE PRODUCT.
2. ASSEMBLE ON SOFT SURFACES TO PREVENT
DAMAGE TO THE PRODUCT FINISH.
3. MAKE SURE ALL PARTS ARE INCLUDED BEFORE ASSEMBLY.

ASSEMBLY TOOLS REQUIRED

SCREWDRIVER
Do you have any questions? Missing small parts or hardware? If you need
PARSON'S 3 PIECES NESTING TABLE
assistance with the assembly of your
support@fourstari.com or
please e-mail our Customer Service Department at:
call us at (800) 639-3803 or (508) 473-7688
if calling locally
from Massachusetts area
Please include the following information in your email:
• Where item was purchased • Item, model, style or SKU number listed on
instructions or box • Part number, description of the part and quantity needed
This information will help us get the proper part to you faster

STEP 2

ATTACH PANEL (D) (E) TO PANEL (G) WITH
SCREW (1).
1
D
G
E

STEP 6

ATTACH PANEL (L) (K) TO PANEL (N) WITH
SCREW (1).
1
K
N
L
STEP 10
ATTACH PANEL (S) (R) TO PANEL (U) WITH
SCREW (1).
1
R
U
S

PARTS AND HARDWARE LIST

NO PARTS LIST QTY
1 PC
A UPPER TOP PANEL
1 PC
B UPPER FRONT LEFT LEG PANEL
1 PC
C UPPER FRONT RIGHT LEG PANEL
D 1 PC
UPPER BACK LEFT LEG PANEL
1 PC
E UPPER BACK RIGHT LEG PANEL
2 PCS
F UPPER SIDE SUPPORT PANEL
1 PC
G UPPER LEG SUPPORT PANEL
1 PC
H CENTER TOP PANEL
I 1 PC
CENTER FRONT LEFT LEG PANEL
1 PC
J CENTER FRONT RIGHT LEG PANEL
1 PC
K CENTER BACK LEFT LEG PANEL
1 PC
L CENTER BACK RIGHT LEG PANEL
M 2 PCS
CENTER SIDE SUPPORT PANEL

STEP 3

ATTACH PANEL (B) (C) & (F) TO THE ASSEMBLED
PARTS WITH SCREW (1).
F
1
F
C
B

STEP 7

ATTACH PANEL (I) (J) & (M) TO THE ASSEMBLED
PARTS WITH SCREW (1).
1
M
M
J
I
STEP 11
ATTACH PANEL (P) (Q) & (T) TO THE ASSEMBLED
PART WITH SCREW (1).
1
T
Q
P
NO PARTS LIST QTY
1 PC
N CENTER LEG SUPPORT PANEL
1 PC
O BOTTOM TOP PANEL
1 PC
P BOTTOM FRONT LEFT LEG PANEL
Q 1 PC
BOTTOM FRONT RIGHT LEG PANEL
1 PC
R BOTTOM BACK LEFT LEG PANEL
1 PC
S BOTTOM BACK RIGHT LEG PANEL
2 PCS
T BOTTOM SIDE SUPPORT PANEL
1 PC
U BOTTOM LEG SUPPORT PANEL
HARDWARE LIST
18 PCS
1 M4 x 25MM C/B SCREW (BLACK)
24 PCS
2 M5 x 25MM WOODEN DOWEL
1 PC
3 7.5G WHITE GLUE
4 18 PCS
PE SCREW CAP COVER (BLACK)

STEP 4

ATTACH THE ASSEMBLED PART TO TOP
PANEL (A) WITH GLUE (3), COVER SCREW
HOLES BY SCREW CAP COVER (4).
3
4
A

STEP 8

ATTACH THE ASSEMBLED PART TO TOP
PANEL(H) WITH GLUE (3), COVER SCREW
HOLES BY SCREW CAP COVER (4).
4
3
H
STEP 12
ATTACH THE ASSEMBLED PART TO TOP
PANEL (O) WITH GLUE (3), COVER SCREW
HOLES BY SCREW CAP COVER (4).
4
3
O
A
H
O
SHELF WEIGHT LIMIT: 75LBS. (34.0KG)

SHELF WEIGHT LIMIT:

55LBS. (26.5KG)
SHELF WEIGHT LIMIT:
30LBS. (13.6KG)
