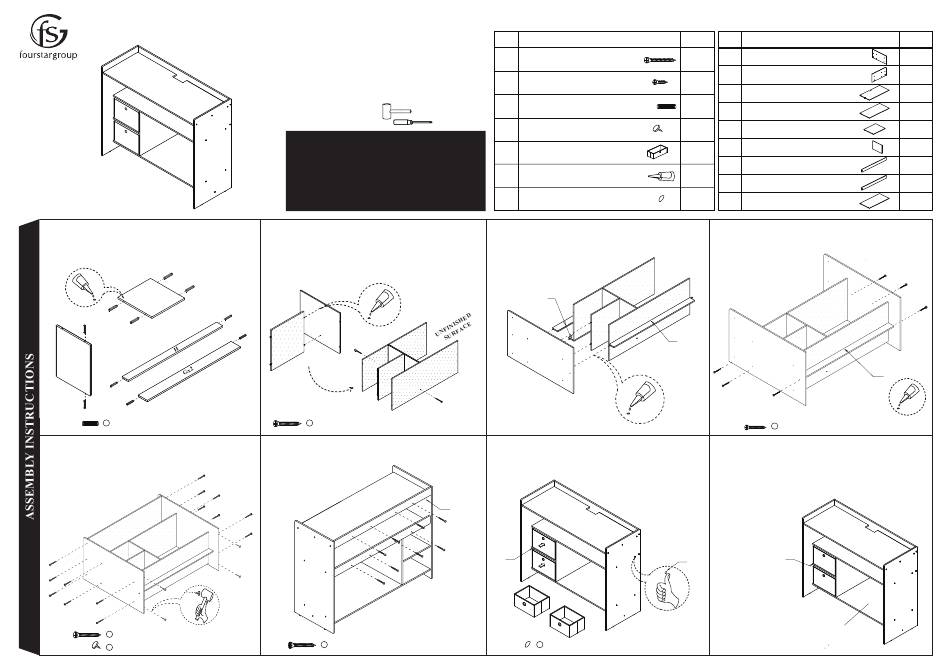

FourStar 11210915A Assembly Instructions

MODEL: 11210915A
COMPUTER DESK
STEP 1
INSERT PLASTIC DOWEL (3) TO SHORT SHELF PANEL (E),
CENTER PANEL (F) AND CROSSBAR (G)(H) WITH GLUE (6).
6
E
F
3 PLASTIC DOWEL - 12 PCS
STEP 5
5.1 ATTACH TOP PANEL (C) TO ASSEMBLED PARTS WITH
SCREW (1).
5.2 INSTALL NAIL LEG (4) TO SIDE PANEL (A)(B) WITH HAMMER.
C
B
D
I
F
E
H
A
1 M4 x 38mm CHIPBOARD SCREW - 14 PCS
4 NAIL LEG - 4PCS
CAUTION :
1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS.
CARE SHOULD BE TAKEN IN THE UNPACKING AND
ASSEMBLING OF THIS PRODUCT.
2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO
THE PRODUCT FINISH.
3. MAKE SURE ALL PARTS ARE INCLUDED BEFORE ASSEMBLING.
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS
CAREFULLY. FOLLOW THEM STEP BY STEP.
ASSEMBLY TOOLS REQUIRED
RUBBER MALLET
PHILIPS SCREWDRIVER
Do you have any questions? Missing small parts or hardware? If you need
assistance with the assembly of your COMPUTER DESK please e-mail our
support@fourstari.com or
Customer Service Department at:
call us at (800) 639-3803 or (508) 435-4830
if calling locally
from Massachusetts area
Please include the following information in your email:
• Where item was purchased • Item, model, style or SKU number listed on
instructions or box • Part number, description of the part and quantity needed
This information will help us get the proper part to you faster
STEP 2
2.1 ATTACH SHELF PANEL (E) TO CENTER PANEL (F) WITH
GLUE (6).
2.2 ATTACH THE ASSEMBLED 2.1 TO LONG SHELF PANEL (D) AND
BOTTOM PANEL (I) WITH GLUE (6) ALSO TIGHTEN WITH
SCREW (2).
6
F
E
D
F
E
I
2 M3.5 x 32mm CHIPBOARD SCREW - 2 PCS
STEP 6
TIGHTEN TOP/CENTER CROSSBAR (G) WITH SCREW (1),
AS SHOWN.
C
A
G
E
D
F
G
B
I
1 M4 x 38mm CHIPBOARD SCREW - 8 PCS
PARTS LIST AND HARDWARE
NO HARDWARE LIST
1 M4 x 38mm CHIPBOARD SCREW
2 M3 x 9mm CHIPBOARD SCREW
3
PLASTIC DOWEL
4
NAIL LEG
5
BIN
6 WHITE GLUE
7
STICKER
STEP 3
ATTACH THE ASSEMBLED SECTIONS FROM STEP 2 AND
CROSSBAR (G)(H) TO LEFT SIDE PANEL (A) WITH GLUE (6).
D
G
F
I
E
A
6
STEP 7
7.1 UNFOLD THE BINS (5) AND SLIDE INTO THE DESK.
7.2 PLACE THE STICKER (7) ON THE SCREW POSITION.
G
C
A
D
E
F
I
B
5
5
7 STICKER - 21 PCS
QTY
NO PARTS LIST
A LEFT SIDE PANEL
22 PCS
B RIGHT SIDE PANEL
8 PCS
C TOP PANEL
12 PCS
D LONG SHELF PANEL
E SHORT SHELF PANEL
4 PCS
F CENTER PANEL
2 PCS
G TOP CROSSBAR
1 PC
H BOTTOM CROSSBAR
25 PCS
I BOTTOM PANEL
STEP 4
ATTACH RIGHT SIDE PANEL (B) TO THE ASSEMBLED SECTION
FROM STEP 3 WITH GLUE (6) AND TIGHTEN SIDE PANEL (A)(B)
SCREW (2).
D
F
H
E
A
2 M3.5 x 32mm CHIPBOARD SCREW - 6 PCS
This unit is intended for use only with the products and maximum weights
indicated. Use with other products or products heavier than the maximum
weights indicated may result in instability causing possible injury.
Furniture can tip over or break if improperly moved. Have a friend help
to lift and carry the unit to its new location.
A
Weight limit: 116 lbs.
(52.7kg)
E
7
F
Weight limit: 43 lbs.
(19.5kg)
Weight limit: 71 lbs.
(32.4kg)
QTY
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
2 PCS
1 PC
1 PC
B
I
H
6
G
C
D
I
B
