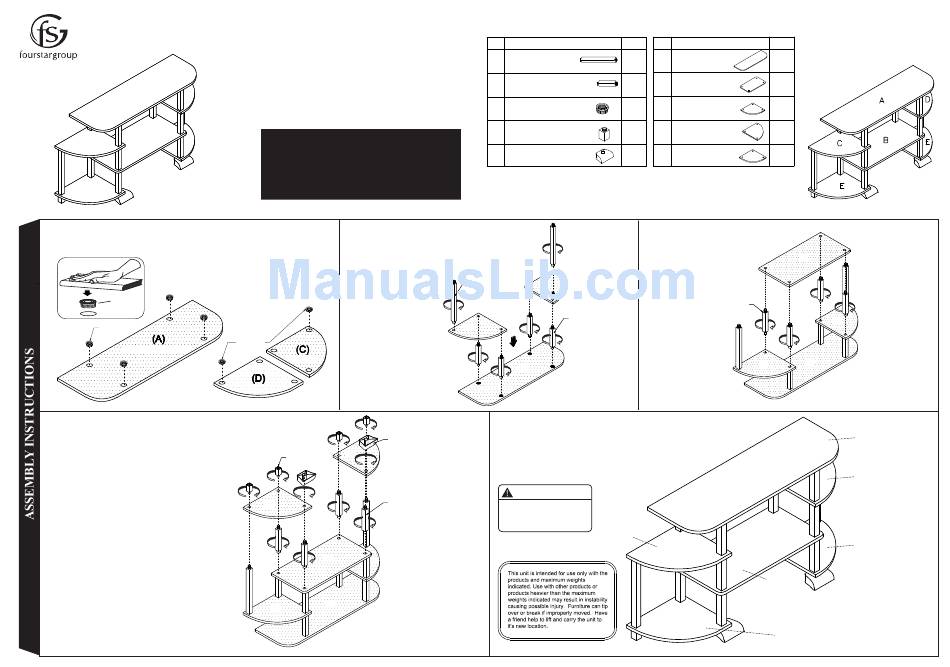

FourStar 11210345CB Assembly Instructions

MODEL: 11210345CB
ENTERTAINMENT CENTER
Total maximum
weight limits 135 Lbs.
Inculde:
Top panel 30 Lbs
Center shelf 25 Lbs
Side shelf
20 Lbs x 4 = 80 Lbs
STEP 1.
INSTALL INSERT CAP (3) INTO PANEL (A) (C) (D), PUSH DOWN FIRMLY.
(3)
(3) x 4pcs
UNFINISHED SURFACE
STEP 4
ATTACH PANEL (E) AND TIGHTEN
WITH SQUARE POLE (2) & LEG (4) (5).
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW
THEM STEP BY STEP.
CAUTION:
1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN
IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT.
2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
3. MAKE SURE ALL PARTS ARE INCLUDED BEFORE ASSEMBLY.
4. PLACE ENTERTAINMENT CENTER ON FLAT, LEVEL SURFACE. ENTERTAINMENT
CENTER WILL NOT BE STABLE ON HIGH PILE CARPETING OR OUT OF LEVEL
SURFACES. NOT FOR USE ON HIGH PILE CARPETING OR OTHER SIMILAR SURFACES.
5. SHOULD YOU HAVE REASON FOR CONCERN FOR STABILITY AND SECURITY, TIPPING
OR KNOCKING OF THE TELEVISION DUE TO, BUT NOT LIMITED TO, SMALL
CHILDREN, PETS OR LOCATION, PLEASE TETHER TELEVISION TO THE WALL TO
PREVENT IT FROM TIPPING. TETHER NOT INCLUDED, REFER TO TELEVISION USER'S
MANUAL OR AFTER MARKET ACCESSORY DEALERS.
6. NOT FOR USE WITH TUBE STYLE, CRT TELEVISIONS. WEIGHT LIMIT 135 LBS.
Do you have any questions? Missing small parts or hardware? If you need
assistance with the assembly of your ENTERTAINMENT CENTER please e-mail our
support@fourstari.com or
Customer Service Department at:
call us at (800) 639-3803
if calling locally from Massachusetts area
Please include the following information in your email:
• Where item was purchased • Item, model, style or SKU number listed on
instructions or box • Part number, description of the part and quantity needed
This information will help us get the proper part to you faster
STEP 2
ATTACH SQUARE POLE (1) (2) TO
PANEL (A) (C) (D) AND TIGHTEN IT.
(3) x 2pcs
UNFINISHED
SURFACE
UNFINISHED SURFACE
(5) x 2pcs
(E)
(4) x 4pcs
(2) x 4pcs
(E)
(B)
(C)
(A)
(D)
PARTS LIST AND HARDWARE
NO HARDWARE LIST QTY
1 SQUARE LONG POLE 2 PCS
2 SQUARE SHORT POLE 12 PCS
3 INSERT CAP 6 PCS
4 SQUARE LEG 4 PCS
5 DUCK LEG 2 PCS
(1) x 2pcs
(C)
(2) x 4pcs
(D)
(A)
STEP 5
STAND THE ENTERTAINMENT CENTER UPRIGHT.
CAUTION: MAXIMUM LOADING
CAPACITY IS 135 LBS.
DO NOT SIT, STAND, LEAN, WALK CLIMB
OR JUMP ON FURNITURE! FAILURE TO
COMPLY WITH THIS CAUTION COULD
RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE!
20 LBS
(9KG)
NO PARTS LIST QTY
A TOP PANEL 1 PC
CENTER SHELF
B 1 PC
PANEL
LEFT SIDE
C 1 PC
TOP PANEL
RIGHT SIDE
D 1 PC
TOP PANEL
SIDE BOTTOM
E 2 PCS
PANEL
STEP 3
ATTACH PANEL (B) AND TIGHTEN
WITH SQUARE POLE (2).
(B)
(2) x 4pcs
(A)
(D)
25 LBS
(11KG)
20 LBS
(9KG)
(C)
30 LBS
(13.6KG)
20 LBS
(9KG)
20 LBS
(9KG)
