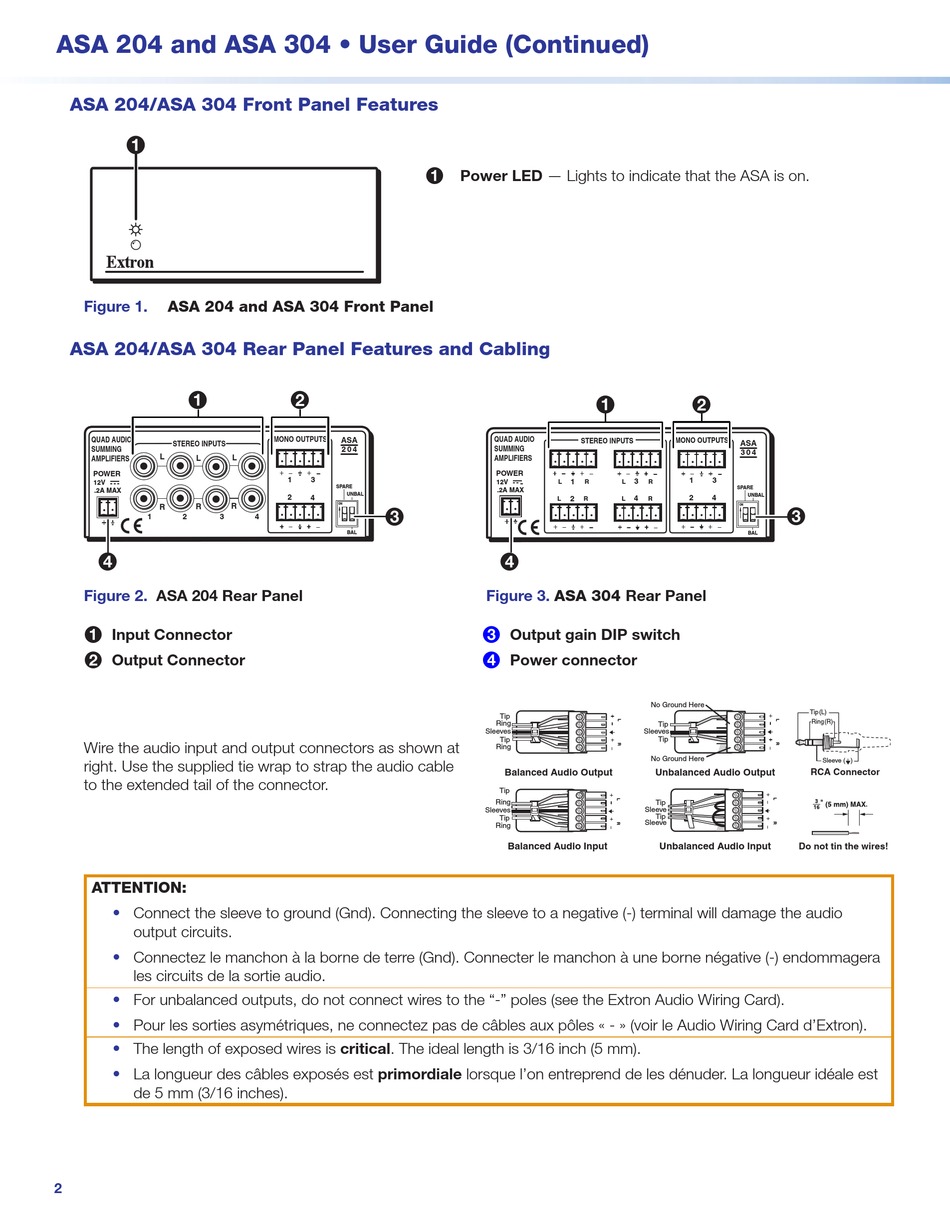

ASA 204 and ASA 304 • User Guide (Continued)
ASA 204/ASA 304 Front Panel Features
1 1
Figure 1.
ASA 204 and ASA 304 Front Panel
ASA 204/ASA 304 Rear Panel Features and Cabling
1 1
QUAD AUDIO
STEREO INPUTS
SUMMING
L L
L
AMPLIFIERS
POWER
12V
.2A MAX
R
R R
1 2 3
4 4
Figure 2. ASA 204 Rear Panel

Input Connector

1

Output Connector

2
Wire the audio input and output connectors as shown at
right. Use the supplied tie wrap to strap the audio cable
to the extended tail of the connector.
ATTENTION:
• Connect the sleeve to ground (Gnd). Connecting the sleeve to a negative (-) terminal will damage the audio
output circuits.
• Connectez le manchon à la borne de terre (Gnd). Connecter le manchon à une borne négative (-) endommagera
les circuits de la sortie audio.
• For unbalanced outputs, do not connect wires to the "-" poles (see the Extron Audio Wiring Card).
Pour les sorties asymétriques, ne connectez pas de câbles aux pôles « - » (voir le Audio Wiring Card d'Extron).
•
• The length of exposed wires is critical. The ideal length is 3/16 inch (5 mm).
La longueur des câbles exposés est primordiale lorsque l'on entreprend de les dénuder. La longueur idéale est
•
de 5 mm (3/16 inches).
2
1
2 2
MONO OUTPUTS
ASA
2 0 4
1 3
SPARE
UNBAL
2 4
ON
3 3
4
BAL
Power LED — Lights to indicate that the ASA is on.
1 1
QUAD AUDIO
STEREO INPUTS
SUMMING
AMPLIFIERS
POWER
3
1
12V L R L
.2A MAX
2 4
L R L
4 4
Figure 3. ASA 304 Rear Panel
Output gain DIP switch
3

Power connector

4
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Output
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Input
2 2
MONO OUTPUTS
ASA
3 0 4
1 3
R
SPARE
UNBAL
2 4
R
ON
3 3 3 3
BAL
No Ground Here
Tip(L)
Ring(R)
Tip
Sleeves
Tip
No Ground Here
Sleeve ( )
Unbalanced Audio Output RCA Connector
Tip
Sleeve
Tip
Sleeve
Unbalanced Audio Input Do not tin the wires!
