SOMFY INTEO LIGHTING outdoor RTS Installation Manual

INSTALLATION

1

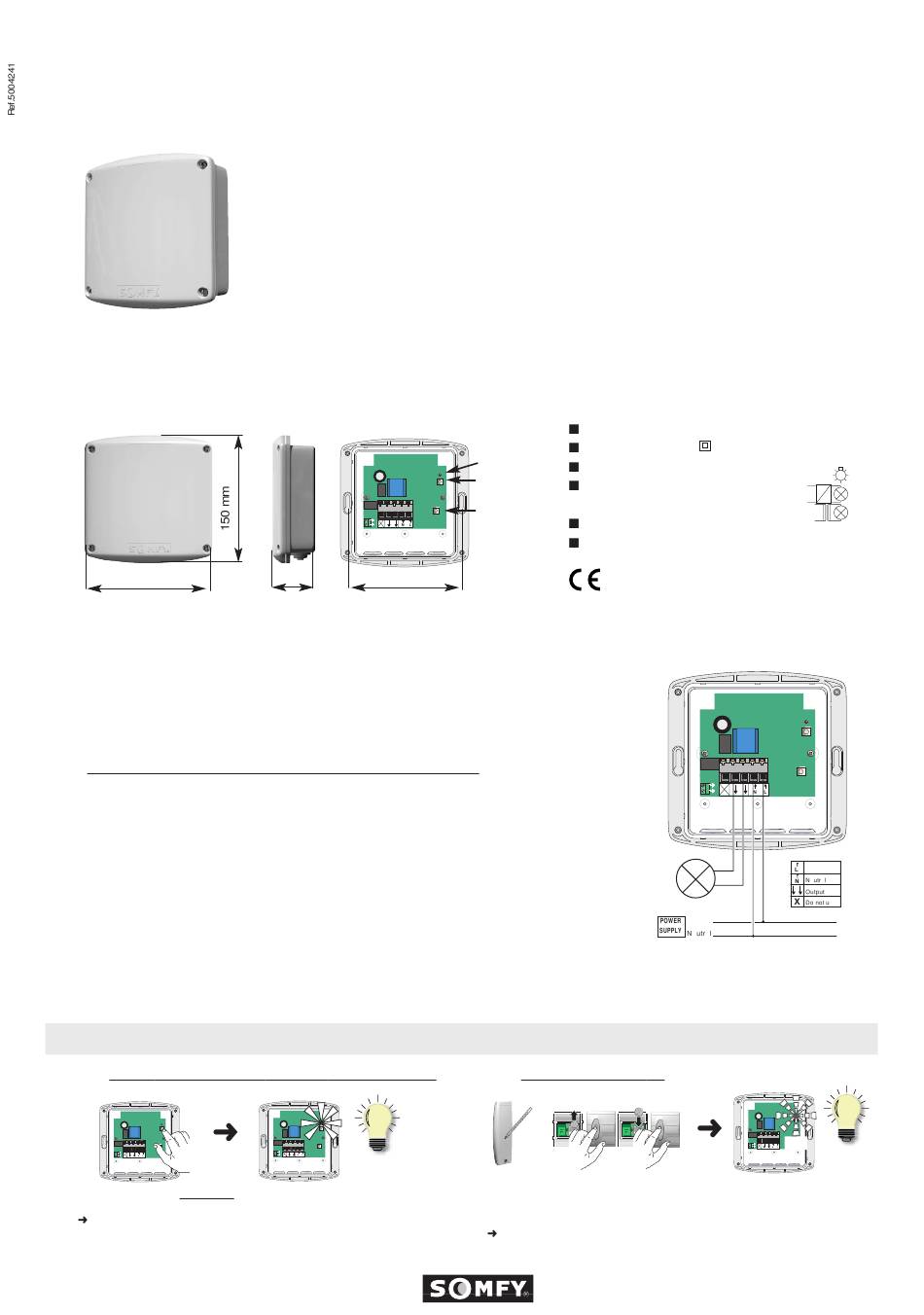

Characteristics

150 mm
2
Installation
Install the LIGHTING outdoor RTS with the cables entry pointing downwards to avoid
water infiltration (wire strip lenght : 6 mm / 0,23 in)
Recommandation of mounting for better radio reception :
minimum distance between LIGHTING outdoor RTS and the floor : 1,5 m.
minimum distance between a LIGHTING outdoor RTS and a radio transmitter : 30 cm.
minimum distance between two LIGHTING outdoor RTS : 20 cm.
Warning : cordless radio equipment (e.g. headphones) in 433MHz can
affect the functionning of the LIGHTING outdoor RTS.
3

Programming and operating

3.1 Record the first control

1
Set the LIGHTING outdoor RTS in its programming mode :
Press for more than 2 seconds on the programming button of
the LIGHTING outdoor RTS.
The LED of the LIGHTING outdoor RTS lights on and the
lamp lights for 2 secs.
The LIGHTING outdoor RTS is in programming mode for one
minute.
inteo

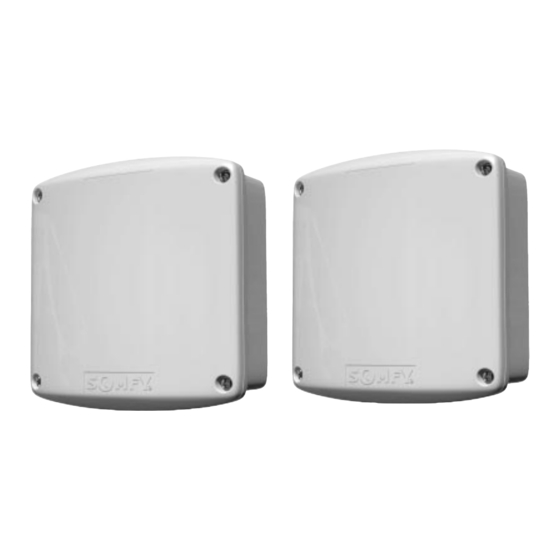

The LIGHTING outdoor RTS is a radio receiver dedicated to control an incandescent or
halogen lamp with an RT or RTS control (no lamp with gear).
Up to twelve different controls can be memorized in the memory of the LIGHTING out-
door RTS allowing individual, group and master commands.
This device must be installed and programmed by qualified installers for whom
this instruction is intended.
40 mm
2 s
LIGHTING outdoor RTS
LED
programming
button
manual
control button
133 mm
2
Record the first control :
or
0,5 s
2 s
RTS control : press briefly the "prog" button.
RT control : remove the battery, press briefly the button, replace the batte-
ry and press again briefly the button.
The lamp lights during 2 secs. again and the LED of the LIGHTING out-
door RTS blinks during 5 sec. The control has been recorded.
guide
Main supply : 220-240V
Class II product
Protection index : IP44
Load : incandescent or halogen
lamps 500 W max.
Radio frequency : 433.42 MHz
Operating temp. : -30°C to +80°C
Hereby, SOMFY, declares that this equipment is in com-
pliance with the essential requirements and other rele-
vant provisions of Directive 1999/5/EC.
A Declaration of Conformity is available at the web
address www.somfy.com Heading CE
Phase
e a
0,5 s
0,5 s
~
Phase
e a
se
5 s
2 s
